Miele MasterChef H 4682 B User Manual

Technical Information
53
MasterChef Ovens

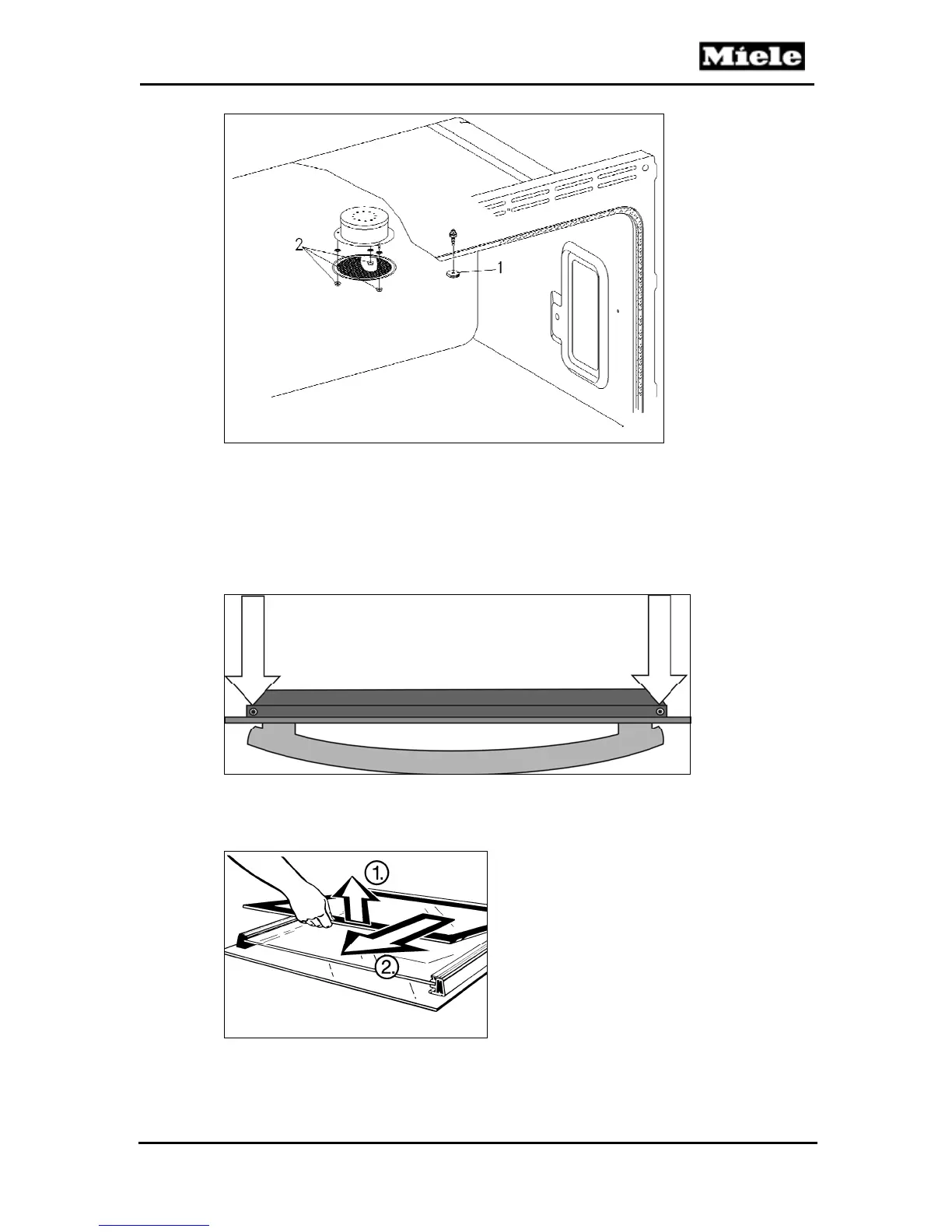

Figure 5-30: Catalyst Insert Removal
5.31 Door Disassembly/Glass Removal (H 468x B)
1. Remove the door (Section 5.2.2).
2. Remove the two retaining screws, as shown in Figure 5-31.
3. Lift the cover strip from the door.
Figure 5-31: Top View of H 468x Door, Showing Cover Strip and Retaining Screws
4. Lift the CleanGlass inner panel slightly (Figure 5-32, Item 1) and remove
it (Figure 5-32, Item 2).
Figure 5-32: Inner Panel Removal (H 468x)
5. Slide out the middle panel; see Figure 5-33.
