Technical Information
12
MasterChef Ovens
1.4 Component Overviews
1.4.1 H 39x B Single Oven (w/o Self-Clean or MasterChef Menu)

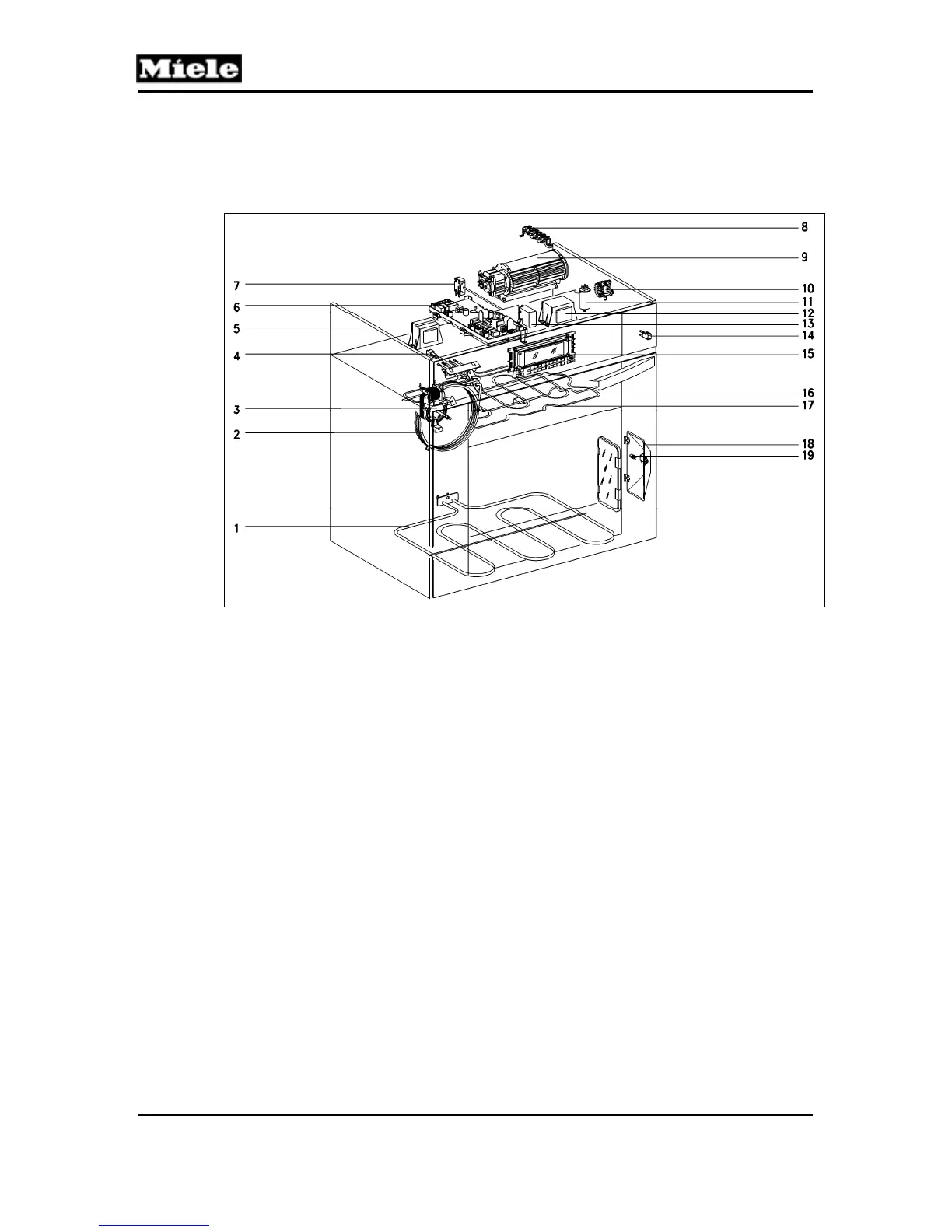

Figure 1-7: Single Oven, no Self-Clean or MasterChef (H 394 B Shown)
1
(1R12) Lower heating element
2
(1R14) Convection heating element
3
(1M2/2) Convection fan
4
(1R30) Oven temperature sensor
5
(2T1) Lighting transformer
6
(1N1) Power electronic
7
(1F1) Oven cavity thermostat
8
(X3/1) Terminal block
9
(1M2/1) Cooling fan
10
(S1) Child safety lock
11
(Z2) Interference suppression capacitor
12
(1T1) Transformer
13
(1K1) Oven relay
14
(1S24) Door switch
15
(1A1, 2A1) Display electronic
16
(1R15) Broiler element
17
(1R13) Upper heating element
18
(1H3/1, 2H3/1) Light assembly (1 per side)
19
Halogen bulb
