MasterChef Ovens
1.4.5 H 468x B Single Oven (w/o Self-Clean)

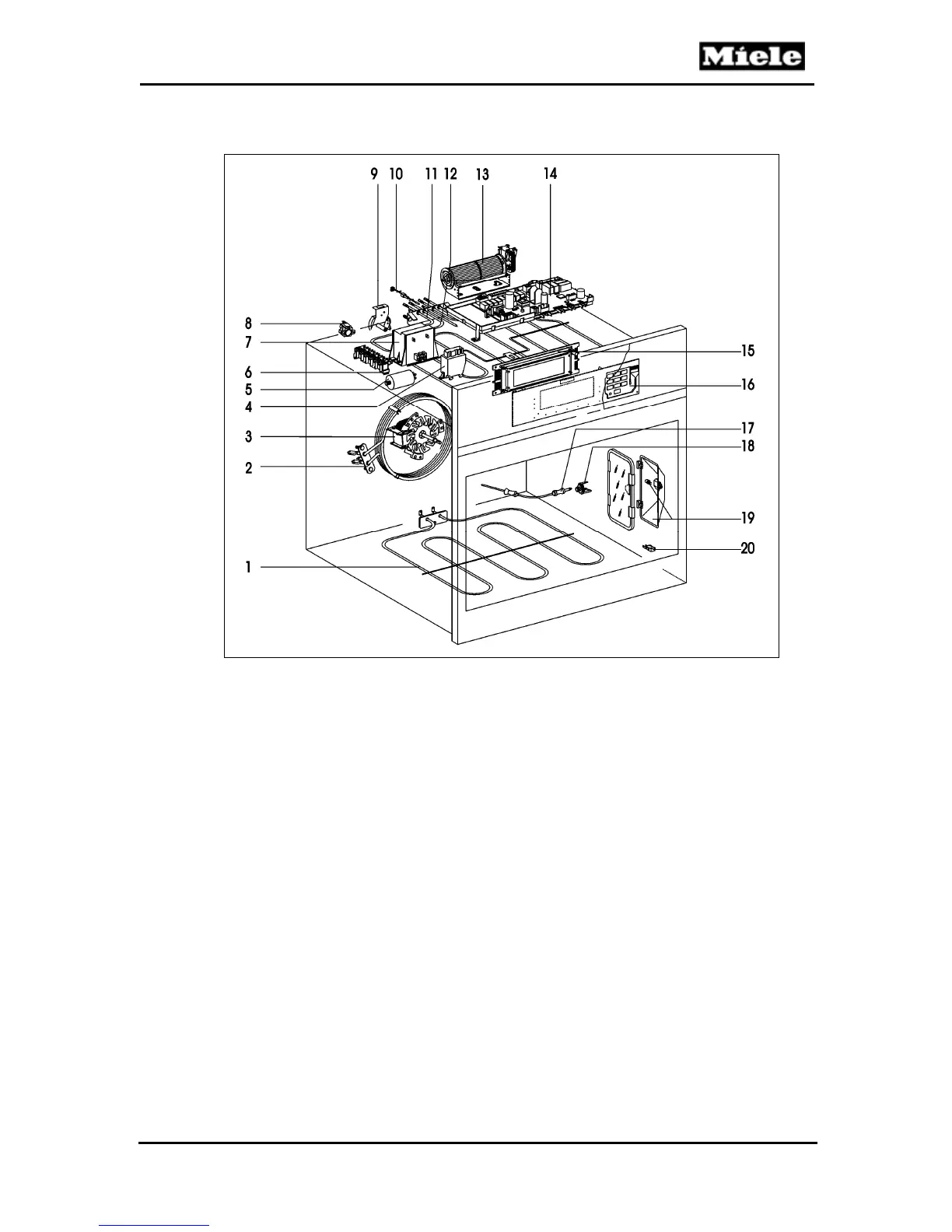

Figure 1-11: H 468x B
1
(R12) Lower heating element
2
(R14) Convection element
3
(M2/2) Convection fan
4
(K1/1) Oven relay
5
(Z1) Interference suppression capacitor
6
(X3/1) Terminal block
7
(1T1) Transformer
8
(1F1) Oven cavity thermostat (419°F/215°C)
9
(M15) Grill motor with switch (S77)
10
(1R30) Oven cavity temperature sensor
11
(R13) Upper heating element
12
(R15) Broiler element
13
(M2/1) Cooling fan
14
(1N1) Power electronic EPL
15
(1A1) Control electronic EPX
16
(2A1) Selection electronic EW
17
(2R30) Roast probe
18
(X5/8) Roast probe socket
19
(1H3/1, 2H3/1) Light assembly
20
(S24) Door contact switch
