Technical Information
13
MasterChef Ovens
1.4.2 H 39x BP Single Oven (w/Self-Clean)

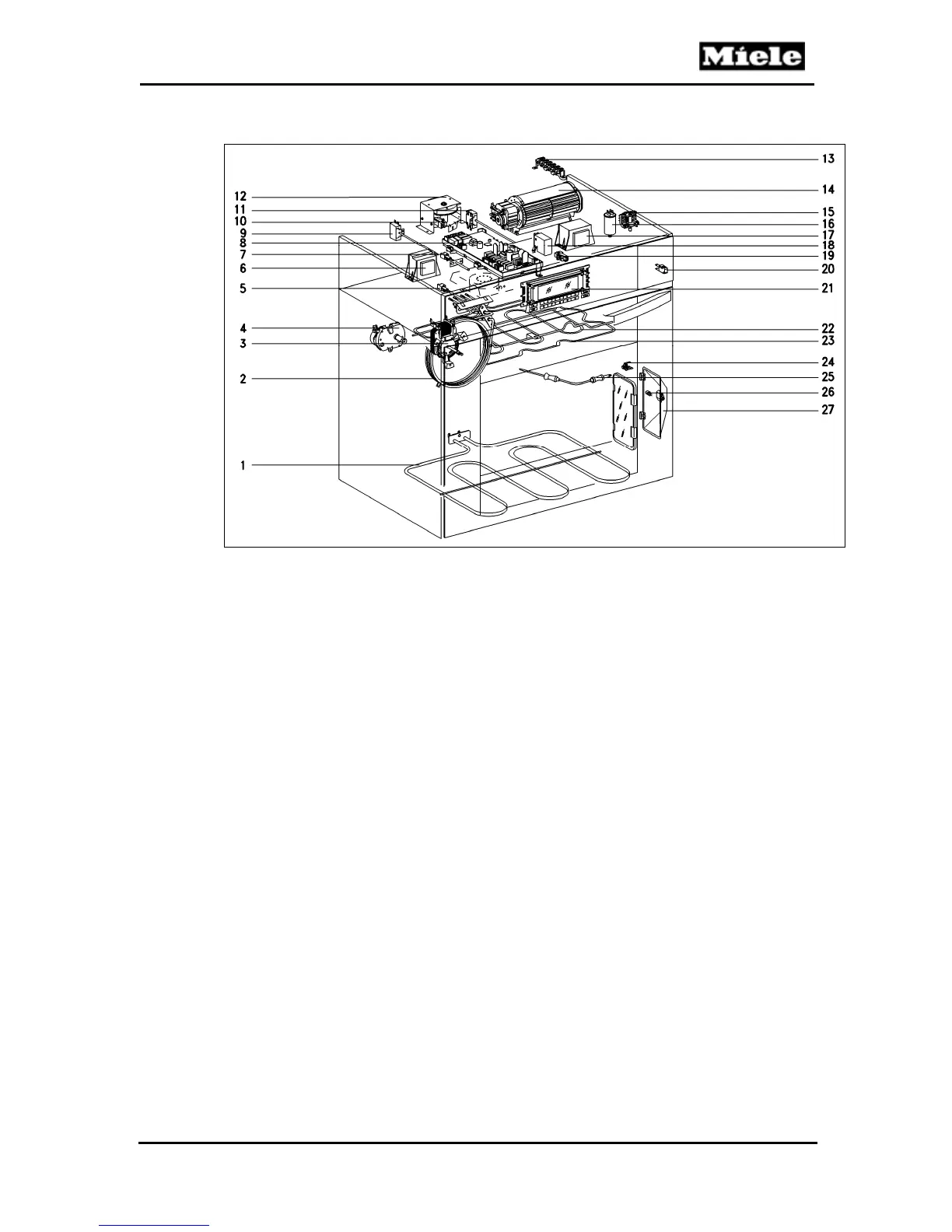

Figure 1-8: Single Oven w/Self-Clean (H 396 BP Shown)
1
(1R12) Lower heating element
2
(1R14) Convection heating element
3
(1M2/2) Convection fan
4
(1M15, 2M15) Rotisserie motors
5
(1R30) Oven cavity temperature sensor
6
(2T1) Lighting transformer
7
(3R30) Pyrolytic PTC sensor (“P” models only)
8
(1N1) Power electronic
9
(2F1) Self-clean thermostat (“P” models only)
10
(1S60) Interlock switch
11
(1F1) Oven cavity thermostat
12
(1M23) Door lock motor (“P” models only)
13
(X3/1) Terminal block
14
(1M2/1) Cooling fan
15
(S1) Child safety lock
16
(Z2) Interference suppression capacitor
17
(1T1) Transformer
18
(1K1) Oven relay
19
(2S60) Interlock switch
20
(1S24) Door switch
21
(1A1, 2A1) Display electronic
22
(1R15) Broiler element
23
(1R13) Upper heating element
24
(1X5/8) Roast probe socket
25
(2R30) Roast probe
26
Halogen bulb
27
(1H3/1, 2H3/1) Light assembly
