MasterChef Ovens
4.0 Description of Function

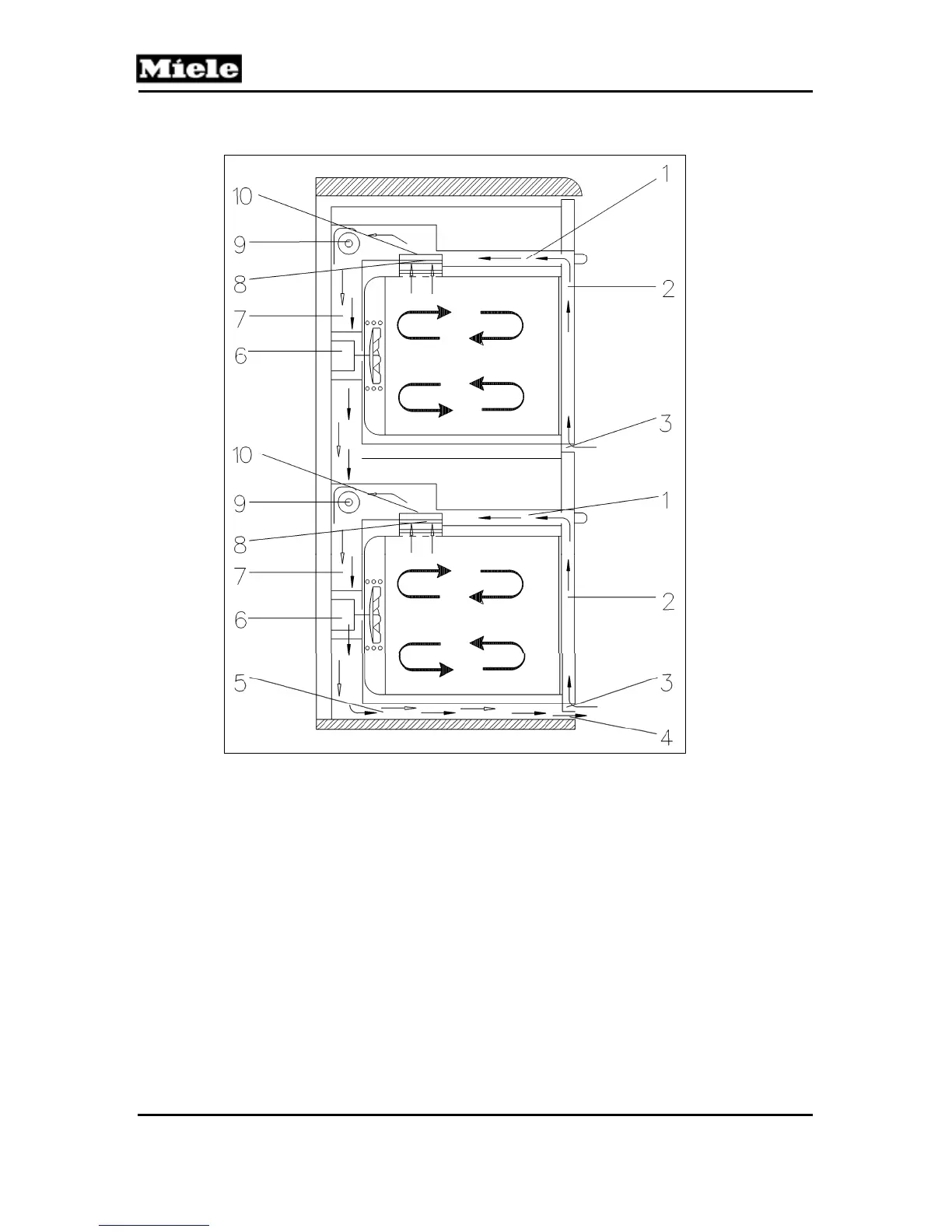

Figure 4-1: Airflow Paths (Double Oven Shown)
1
Opening between housing and upper holding plate insulation mat
2
Opening between outer and interior glass pane
3
Opening below the door
4
Opening between vent strip and bottom plate
5
Opening between bottom plate and lower insulation mat
6
Convection fan
7
Air duct
8
Vapor outlet (“BP” models only)
9
Cooling fan
10
Exhaust duct
