5.33 Door Middle Glass Pane Removal (H 39x, H 478x and H 488x)
1. Remove the door (Section 5.2).
2. Remove the door outer glass pane (Section 5.32).
3. H 478x: Remove the two T20 screws securing the top metal brackets
(Figure 5-35, Item 1). Remove the top metal brackets. Remove the two T20
screws securing the bottom metal bracket (Figure 5-35, Item 2). Remove
the bottom metal bracket.
4. H 39x and H 488x: Remove the screws securing the retaining brackets
(Figure 5-36, Item 2). Remove the retaining brackets.
5. Remove the middle glass pane from the door frame (Figure 5-36, Item 1).

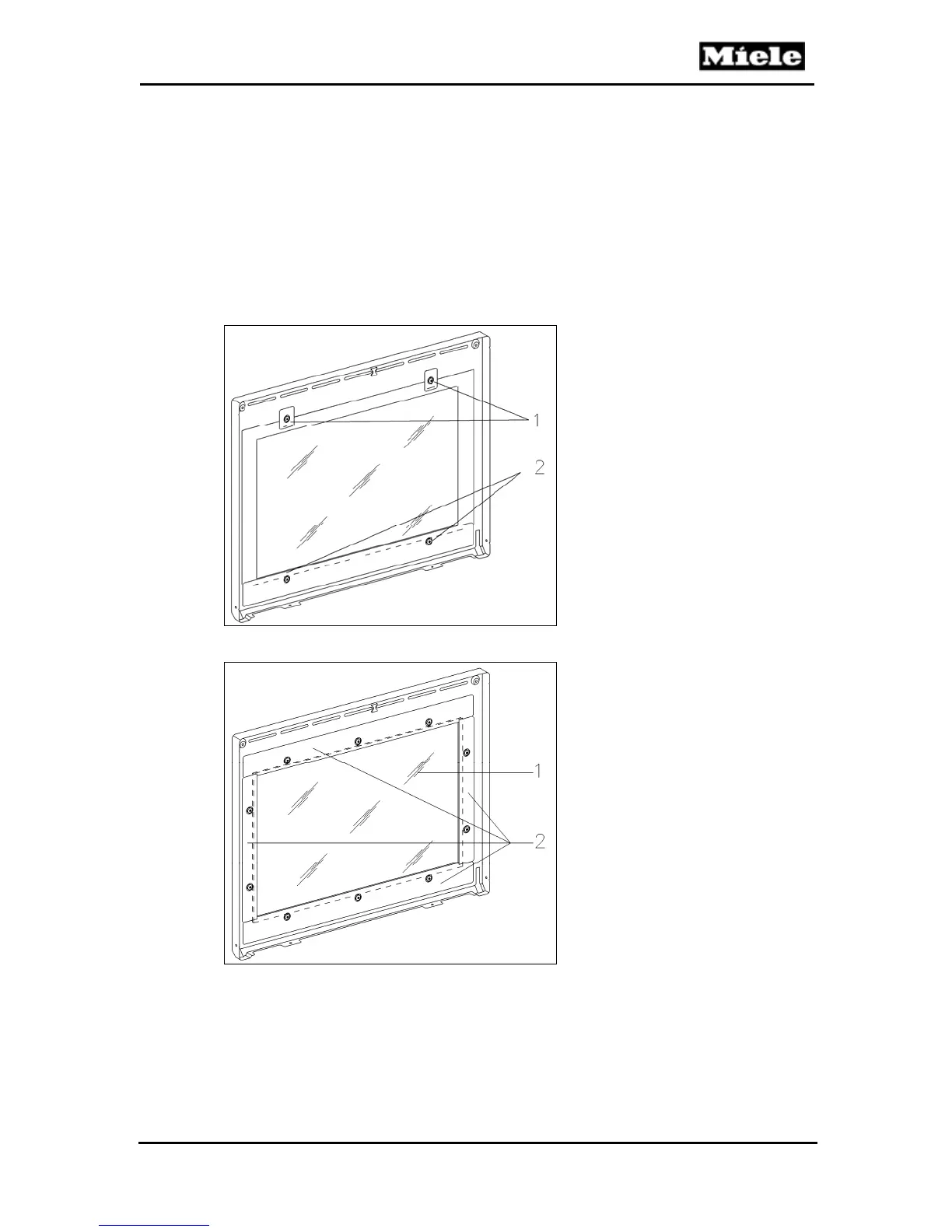

Figure 5-35: Door Middle Glass Pane Removal (H 478x)
Figure 5-36: Door Middle Glass Pane Removal (H 39x and H 488x)
5.34 Door Inner Glass Pane Removal (H 39x, H 478x and H 488x)
1. Remove the door (Section 5.2).
2. Remove the door outer glass pane (Section 5.32).
3. Remove the door middle glass pane (Section 5.33).
