Technical Information
39
MasterChef Ovens

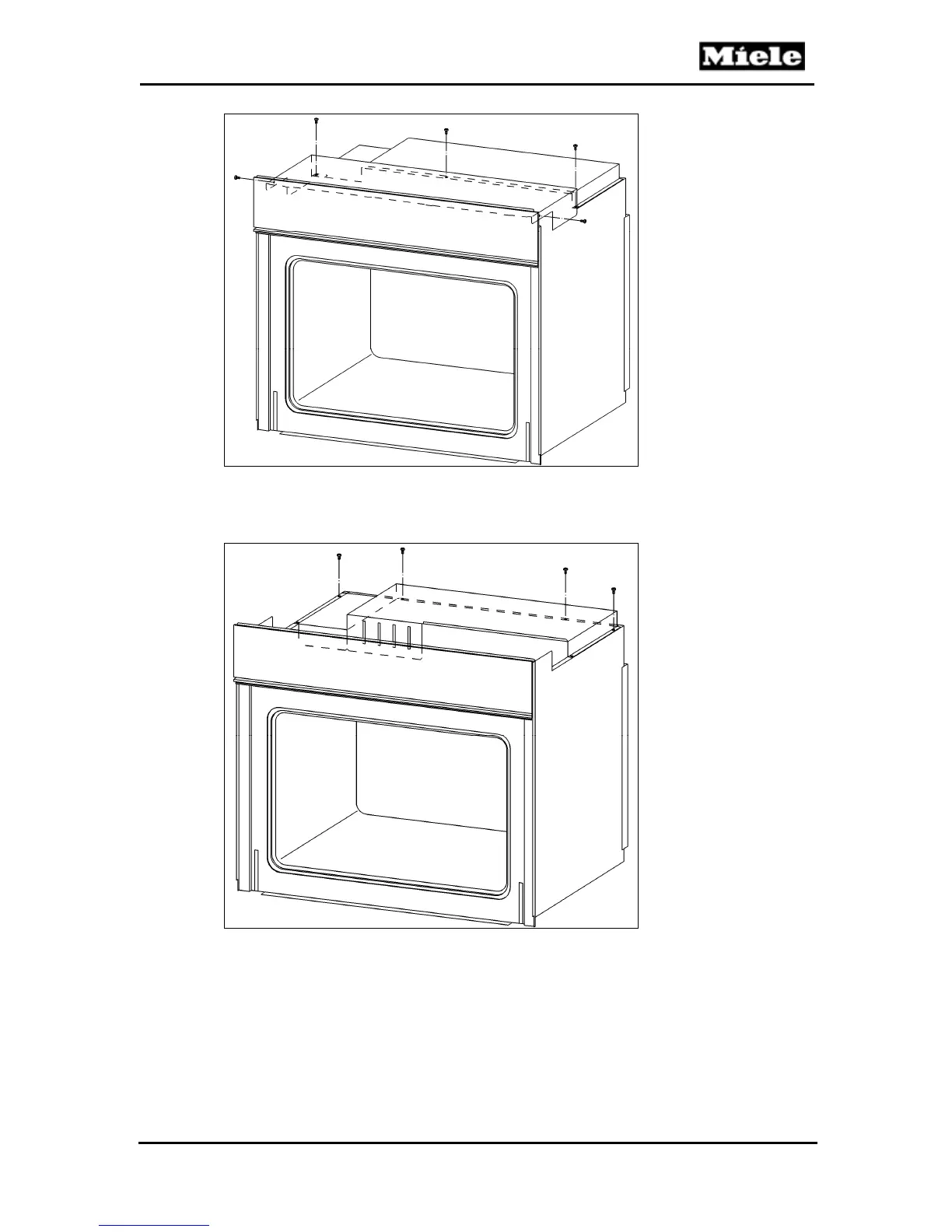

Figure 5-13: Front Cover Plate (H 478x)
5. Remove the four T20 screws securing the rear cover plate. See Figure 5-14.
6. Lift the rear cover plate from the oven.
Figure 5-14: Rear Cover Plate (H 478x)
5.10 Front/Middle/Rear Cover Plate Removal (H 468x Only)
1. Remove the oven door (5.2).
2. Remove the oven for service (Section 5.5).
3. Remove the screws securing each cover plate (2 for the front, 3 for the
middle, 2 for the rear).
4. Lift each cover plate from the oven.
