MasterChef Ovens

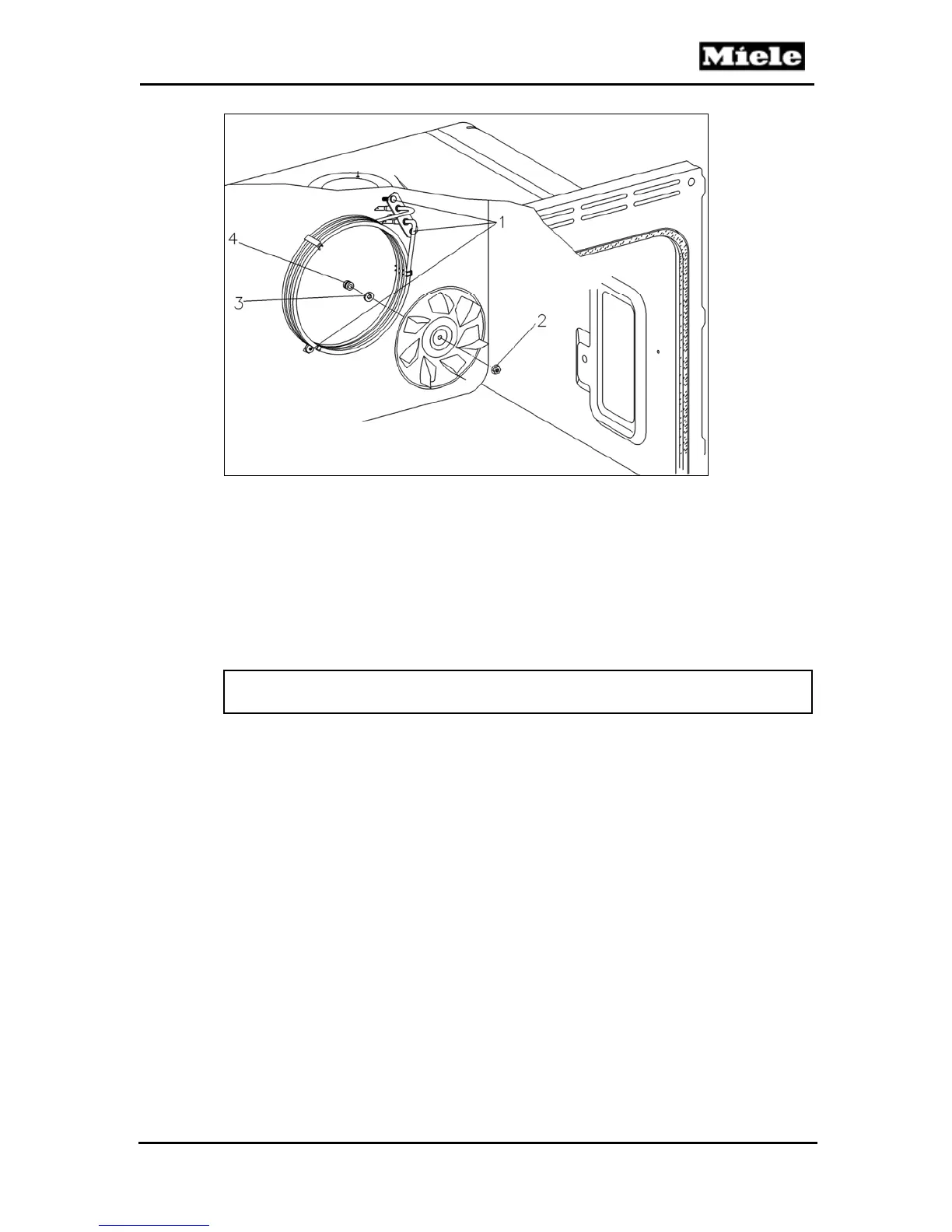

Figure 5-26: Convection Element and Fan
5.25 Convection Fan (M2/2) Removal
1. Remove the door(s) (Section 5.2).
2. Remove the oven for service (Section 5.5).
3. Remove the rear panel(s) (Sections 5.11 and 5.12).
4. Remove the oven cavity back panel (Section 5.22).
5. Loosen the impeller retaining nut (Figure 5-26, Item 2).
Note:
The impeller nut is reverse (left-hand) thread.
6. Remove the impeller, washer (Figure 5-26, Item 3) and bushing (Figure 5-26,
Item 4).
7. Remove the three screws securing the fan to the outside of the appliance
(Figure 5-27).
8. Disconnect the fan electrical connection. Remove the fan.
