Technical Information
9
MasterChef Ovens
1.2.2 Double Oven (Typical)

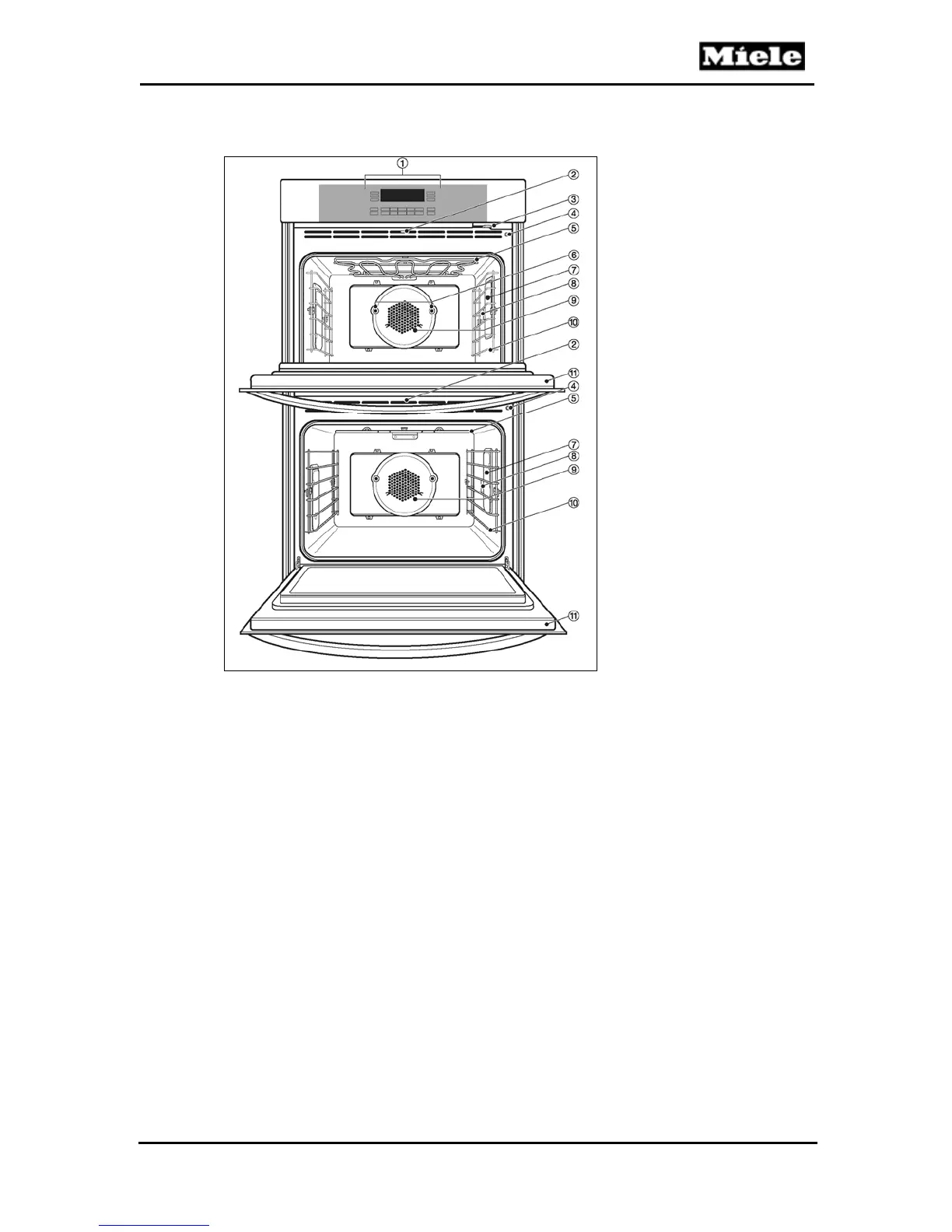

Figure 1-2: Overview of Double Oven
1
Control panel
2
Door lock
3
Child safety lock
4
Door contact switch
5
Upper heater element
6
Rotisserie motors
7
Light
8
Roast probe socket
9
Convection fan
10
Six level runners
11
Oven door
