5.15 Upper (or Single Oven) Cooling Fan Removal
1. Remove the oven for service (Section 5.5).
2. Remove the upper rear panel, if applicable (Section 5.11).
3. Disconnect the cooling fan electrical connections (Figure 5-16, Item 1).
4. Remove the vent strip retaining screws (Figure 5-16, Items 2 and 3).
5. Remove vent strip(s), as necessary.
6. Remove the cooling fan retaining screws (2 per side; see Figure 5-16, Item 4).
7. Remove the cooling fan.

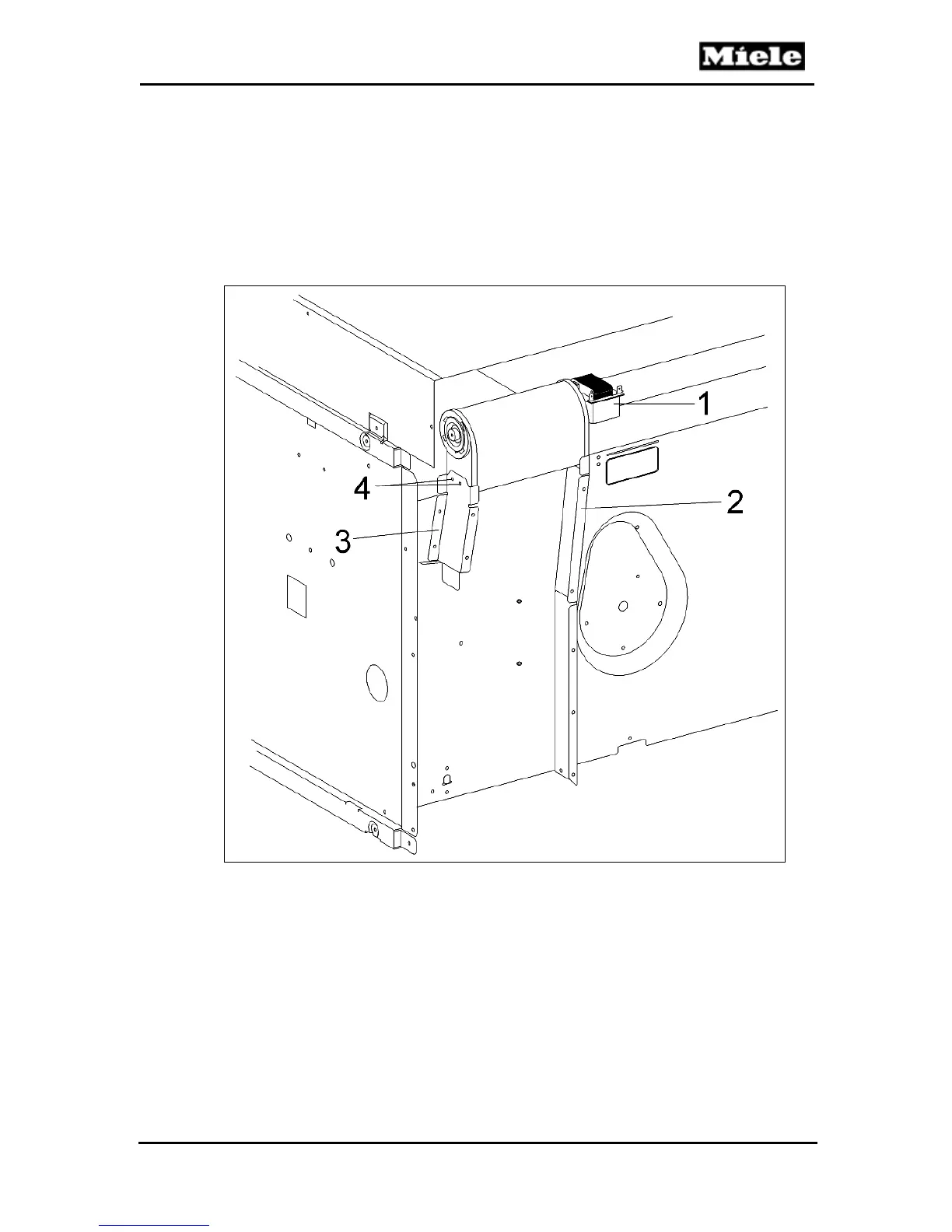

Figure 5-16: Upper (or Single Oven) Cooling Fan Removal
5.16 Lower Oven Cooling Fan Removal (Double Ovens Only)
1. Remove the oven for service (Section 5.5).
2. Remove the lower rear panel (Section 5.12)
3. Disconnect the cooling fan electrical connections (Figure 5-17, Item 1).
4. Remove the vent strip retaining screws (Figure 5-17, Items 2 and 3).
5. Remove vent strip(s), as necessary.
6. Remove the cooling fan retaining screws (2 per side; see Figure 5-17,
Item 4).
7. Remove the cooling fan.
