1-1-3. Monitoring the operation status
This section explains how to monitor the operation status of units.
[1] Air conditioning unit, LOSSNAY unit, Air To Water (PWFY) unit, and general equipment groups
Click [Monitor/Operation] in the menu, and then click [Show groups] to display the operation status of unit groups.
The operation mode currently in use is displayed in “Operation mode”.
•Air conditioning unit group
Cool Dry Fan Heat Auto Auto (Cool) Auto (Heat) Setback
•LOSSNAY unit (ventilator) group
Bypass Heat Recovery Auto
•Air To Water (PWFY) unit group
Heating Heating ECO Hot Water Anti-freeze Cooling
Note: In [Controller], it is possible to narrow down the unit groups for group display into “Centralized controller units,” “Block units,” and
“Energy management block units.”
Note: The selection screen displays the centralized controllers to which unit groups set for tenant manager management (in section
2-5-2 “User registration” in Chapter 2) are connected and the blocks and energy management blocks of unit groups set for tenant
manager management.
Note: For how to configure centralized controller name setting, block and energy management block settings, and name settings, refer
to the Instruction Book (Initial Settings).
Note: The group name can be displayed using up to 10 double-byte, or 10 to 18 single-byte characters. The number of characters that
can be displayed differs depending on character type. Name setting is carried out through initial settings. Refer to the Instruction
Book (Initial Settings) for settings methods.

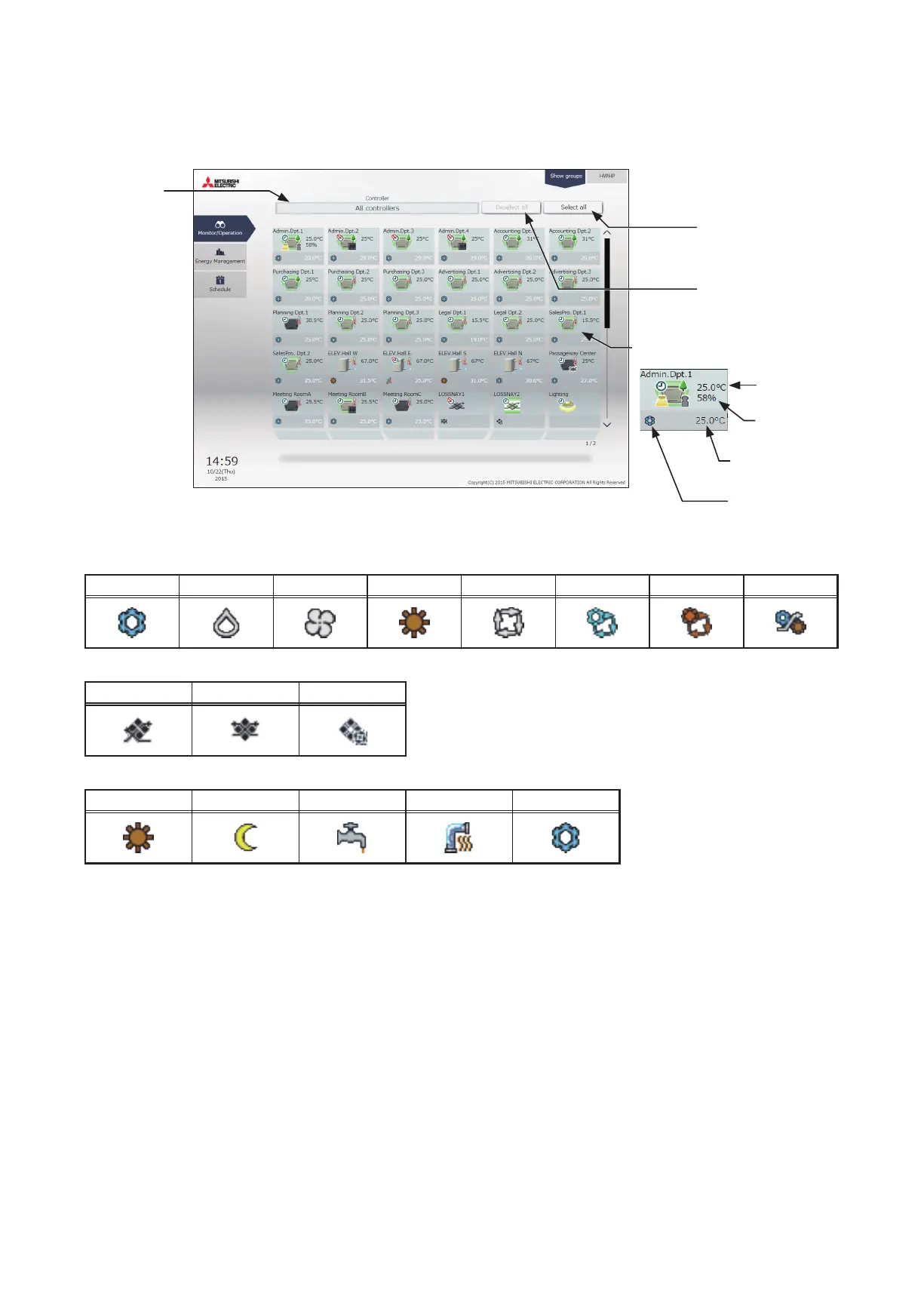

Controller
Click to narrow
down the groups
to display.
Select all
Click to select all displayed
unit groups at once.
Deselect all
Click to cancel all selections
at once.
Group icon
Set temperature
Room
temperature
Operation mode
Room humidity
To Next Page
