2-6-2. Monitoring Status
In [Monitoring Status], “Outdoor Unit Status” and “Free Contact” can be checked.
[1] Outdoor Unit Status

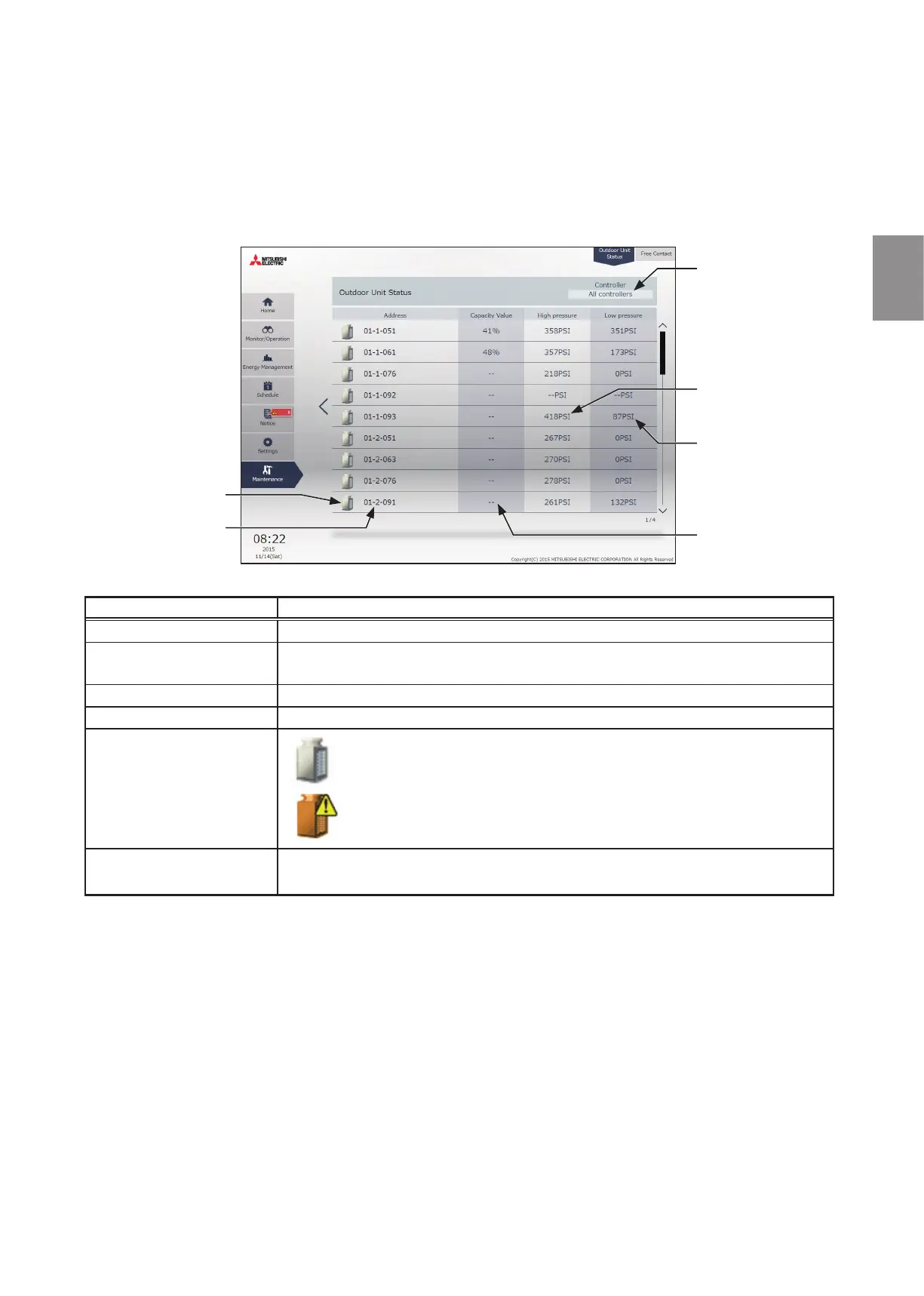

In the Outdoor Unit Status screen, operators can check the capacity value, high pressure, and low pressure of each
outdoor unit.
Click [Monitoring Status], and then click [Outdoor Unit Status].
Note: If AE-200/AE-50/EW-50 is started up with the outdoor units turned off, outdoor unit status may not appear. In this case,
restart the AE-200/AE-50/EW-50.
Item Description
Controller Display target outdoor units can be narrowed down by selecting a centralized controller.
Capacity Value
The capacity value of the compressor on a given outdoor unit will appear.
Note: The capacity value of a sub outdoor unit will not appear.
High Pressure Refrigerant discharge pressure of the compressor on a given outdoor unit will appear.
Low Pressure Refrigerant suction pressure of the compressor on a given outdoor unit will appear.
Outdoor unit icon
: Normal
: Communication error or unit error
Outdoor unit address
The centralized controller No. and address of the outdoor unit will appear.
Note: For address display, refer to 4 “Name Display” in Chapter 1.
* When a communication error occurs, “--” will appear in the Capacity Value, High Pressure, and Low Pressure value fields.
* If the outdoor unit is a PUMY model of City Multi S-series, “--” will appear in the Capacity Value, High Pressure, and Low Pressure value
fields.
* If the outdoor unit does not support a capacity display, “--” will appear in the Capacity Value field.
Outdoor unit icon
Controller
Click to narrow down the
outdoor units to display into
centralized controller units.
Outdoor unit address
Capacity Value
High pressure
Low pressure
