2-3. Schedule
Schedule function can be used to change the operation status of the air conditioning units automatically at a
given time. Weekly (5 types), annual (5 types), and current day scheduling are available. Up to 24 events can be
scheduled per day.
Note: When the schedules overlap, schedule with the highest priority will run as shown on the next page. (Today’s
schedule>Annual schedule>Weekly schedule 1 to 5)
Note: Schedules can be set for each unit group.
Note: Set the [Schedule] setting on the operation settings screen for each unit group to [Available] to enable the scheduled events.
Note: Schedule settings are based upon the set PC time, however, execution of scheduled tasks uses the time set on the
centralized controller.
Ensure that the times set on the PC and on the centralized controller match before configuring settings. Refer to 2-5-3 [1] “Date
and Time Settings” in Chapter 2 for details on ensuring these match.

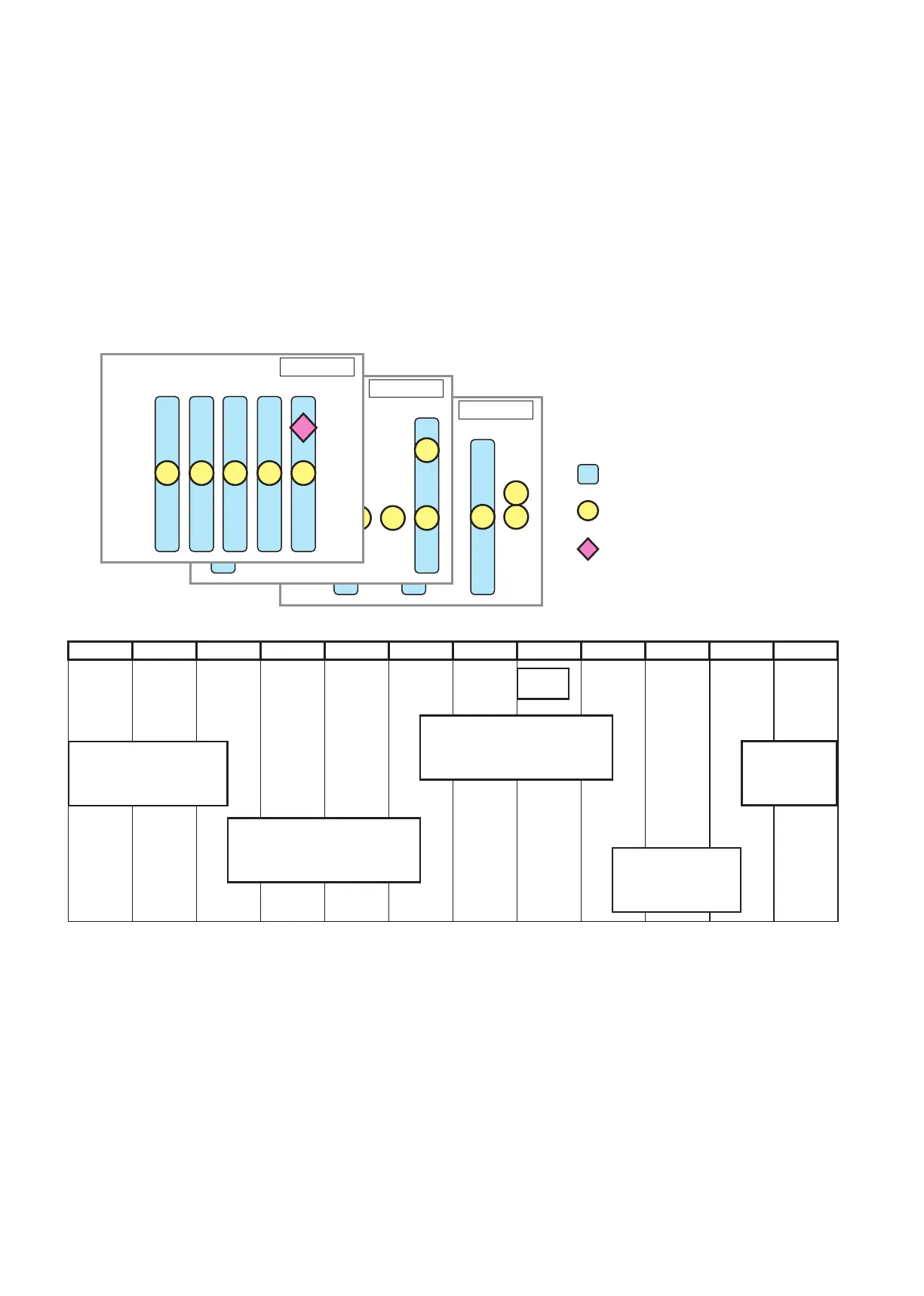

2-3-1. Schedule setting example
3
10
17
24
31
4
11
18
25
5
12
19
26
6
13
20
27
7
14
21
28
1
8
15
22
29
2
9
16
23
30
3
10
17
24
4
11
18
25
5
12
19
26
6
13
20
27
7
14
21
28
1
8
15
22
29
2
9
16
23
30
31
3
10
17
24
31
2
9
16
23
30
4
11
18
25
5
12
19
26
6
13
20
27
7
14
21
28
1
8
15
22
29
Days that Weekly Schedule runs
Days that Annual Schedule runs
Days that Today's Schedule runs
Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Weekly
schedule 1
(special)
Note: The figure above shows the setting example of weekly schedules where the date period for each Weekly Schedule is set to
the followings.
Weekly Schedule 1: Aug 1 - Aug 20
Weekly Schedule 2: Jun 16 - Sep 15
Weekly Schedule 3: Sep 16 - Nov 15
Weekly Schedule 4: Nov 16 - Mar 15
Weekly Schedule 5: Mar 16 - Jun 15
Note: When any of the Weekly Schedules 1, 2, 3, 4, and 5 overlap, the schedule with the lower number takes priority. For example,
Weekly Schedule 1 takes precedence over Weekly Schedule 2.
SUN MON TUE WED THU FRI SAT
FRI SAT
FRI SAT
Aug
Group 1
Aug
Group 2
Aug
Group 3
Weekly schedule 2
(summer)
Weekly
schedule 4
(winter)
Weekly
schedule 4
(winter)
Weekly schedule 5
(spring)
Weekly schedule 3
(autumn)
