4. Name Display
The names of air conditioning units can be displayed in this Integrated Centralized Control Web. If the name
settings are not set, names are displayed in accordance with the following rules.
Note: For how to set the names of groups, blocks, and energy management blocks, refer to the Instruction Book (Initial Settings).
Note: The numbering system of centralized controllers and expansion controllers becomes the numbers registered in “Initial
Setting Tool – Basic Settings – System Configuration” in the Instruction Book (Initial Settings).
Note: EW-50 is displayed as “AE**” on the Integrated Centralized Control Web.

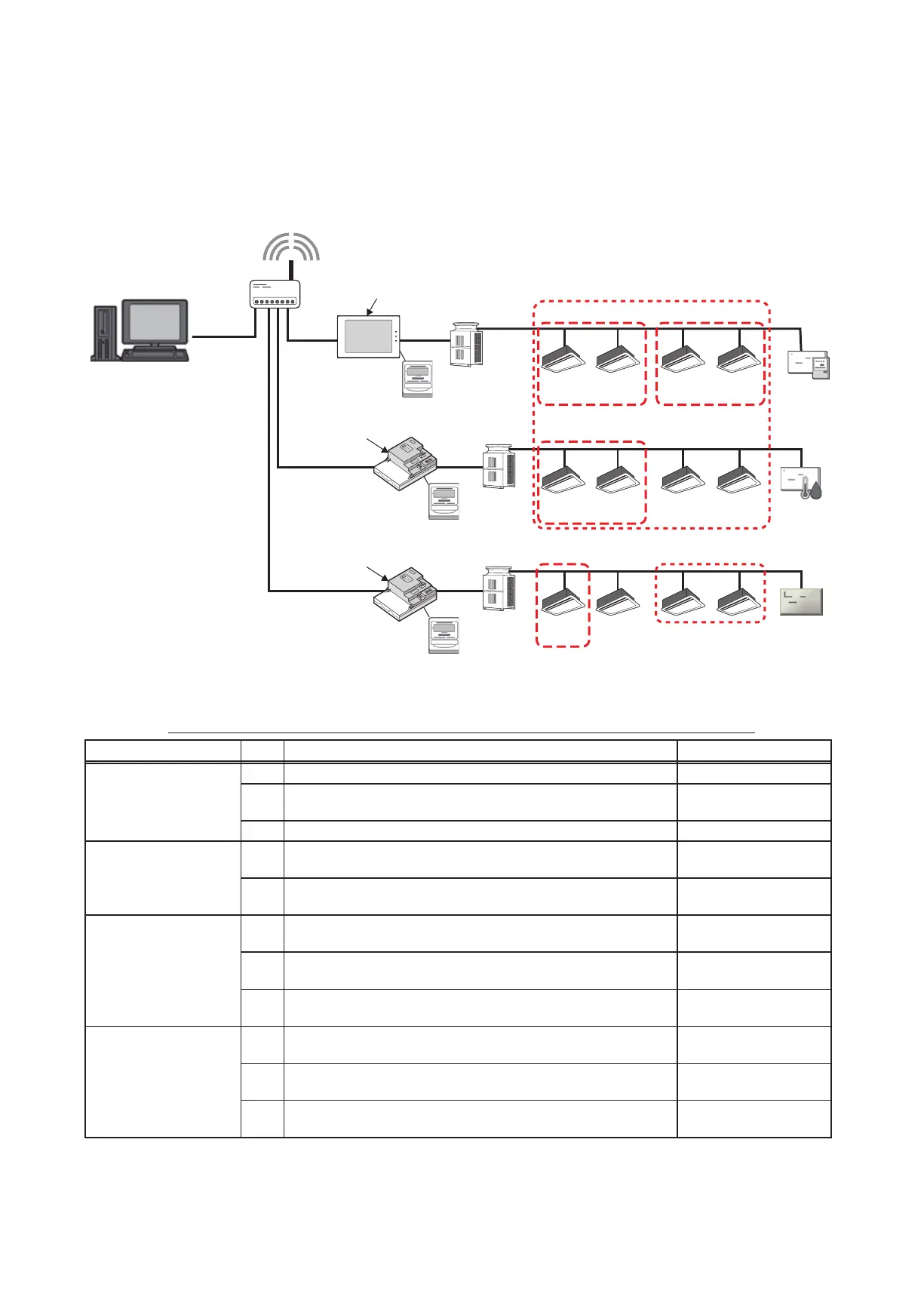

Name display in Integrated Centralized Control Web when the name settings are not set
Target No. Description Name
Centralized controller
①
Login destination centralized controller (system 1) AE01 (AE No.)
②
Expansion controller (1st) of the login destination centralized
controller (system 1)
AE01-1 (AE No.)
③
Management target centralized controller (system 2) AE02 (AE No.)
Energy management
block
④
Energy management block (Block No. 1) of the login destination
centralized controller (system 1)
Energy management
block 01-001
⑤
Energy management block (Block No. 200) of the login
destination centralized controller (system 2)
Energy management
block 02-200
Block
⑥
Block (Block No. 1) of the login destination centralized
controller (system 1)
Block 01-1
⑦
Block (Block No. 1) of the expansion controller (1st) of the login
destination centralized controller (system 1)
Block 01-1-1
⑧
Block (Block No. 1) of the management target centralized
controller (system 2)
Block 02-50
Group
⑨
Group (Group No. 1) of the login destination centralized
controller (system 1)
Group 01-1
⑩
Group (Group No. 1) of the expansion controller (1st) of the
login destination centralized controller (system 1)
Group 01-1-1
⑪
Group (Group No. 50) of the management target centralized
controller (system 2)
Group 02-50
Login destination centralized
controller (system 1)
Expansion controller
(1st) of the login
destination centralized
controller (system 1)
①
AE01
⑰
Metering device 2
01-2
Management target centralized controller
(system 2)
②
AE01-1
⑫
Address
01-055
⑱
Metering device 1
01-1-1
④
Energy management block 01-001
⑬
Address
01-1-051
③
AE02
⑥
Block 01-1
⑨
Group
01-1
⑦
Block 01-1-1
Metering device 3
02-3
⑩
Group
01-1-1
⑧
Block 02-50
Group
01-2
Address
02-051
Group
01-1-2
Block 01-2
⑪
Group
02-50
Group
01-3
⑤
Energy management block 02-200
Group
01-1-3
Group
01-4
Group
01-1-4
Contact 2
⑭
Address
01-050-2
Contact 2
⑮
Address
01-1-048-2
Contact 1
⑯
Address
02-201-1
AHC
