Mitsubishi alpha 2 User Manual

α 2 Simple Application Controllers
AL-232CAB 7
ENG-32
7. AL-232CAB
7.1 Introduction
The AL-232CAB is an RS-232C cable used to connect an α series controller (α, α2) and a
personal computer that is running the programming software (AL-PCS/WIN-E).
Note;
• AL-232CAB cable cannot be used for any other applications.
• AL-232CAB cable rises about 40mm (1.57") above the top panel when connecting to an
α2 series controller.

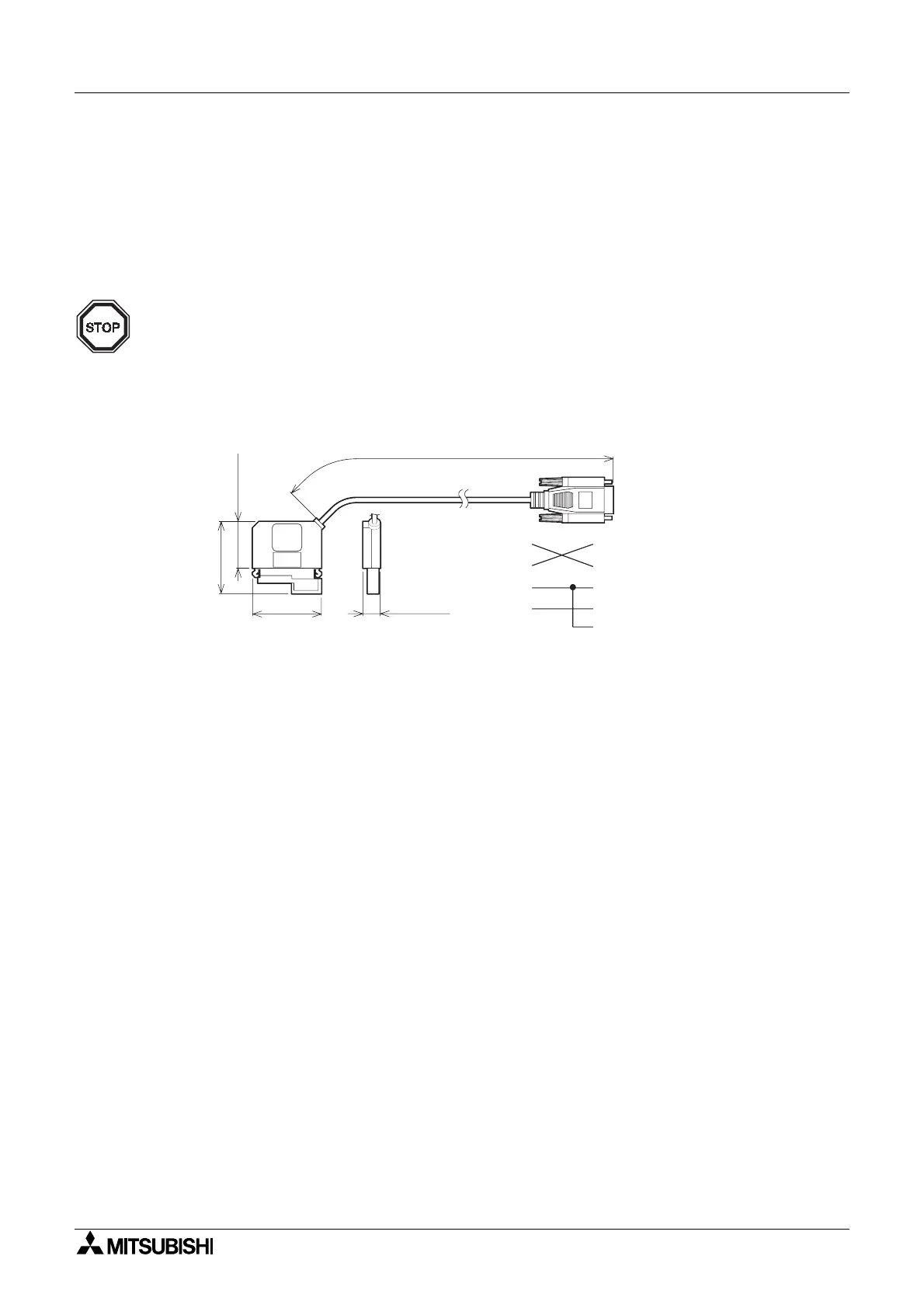

7.1.1 External Dimensions
2 5 0 0 ( 8 ' 2 " )
3 0 . 8 ( 1 . 2 1 " )
4 7 . 8 ( 1 . 8 8 " )
4 6 ( 1 . 8 1 " )
1 1 . 5 ( 0 . 4 5 " )
R X D ( R D )
T X D ( S D )
D T R ( E R )
G N D ( S G )



* 1


α2 series side
0
Personal computer side
(9-pin D-Sub female)
*1 Set this signal to
high-level.
Dimensions: mm (inches)
