13.1 Introduction
The AL2-2TC-ADP should be used convert thermocouple sensor (K type) temperature input to
0-10V voltage analog signal for use in the main unit.
13.1.1 External Dimensions

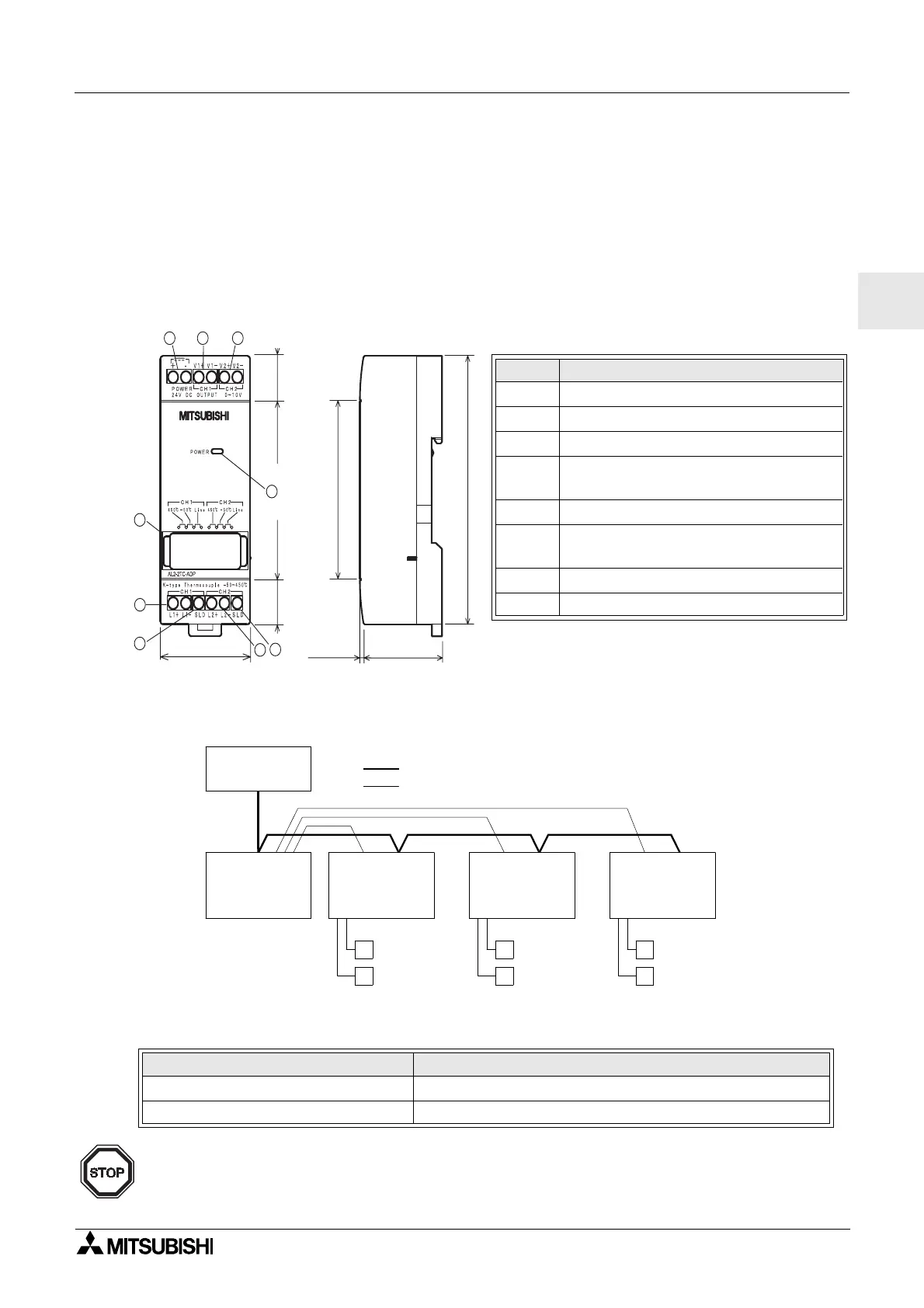

Figure 13.1:External Dimensions
Unit:mm (inches)
13.2 System Configuration
Figure 13.2:
For general specifications please refer to Chapter 2.
Note
The AL2-2TC-ADP cannot be used with the original α Series Controllers.
Table 13.1:
Item Description
1 +24V DC Power Supply
2 Channel 1 Voltage Output Terminal
3 Channel 2 Voltage Output Terminal
4
Channel 1 K-Type Thermocouple
Sensor Input Terminal
5 Shield Grounding Terminal
6
Channel 2 K-Type Thermocouple
Sensor Input Terminal
7 Jumper pins for adjustment
8 Power LED
Table 13.2: Applicable Version
PLC Type Applicable version
α2 Series (DC Version only) V2.00 or later
VLS Software V2.30 or later
60(2.37")
90(3.55")
31.0(1.23")
1.5(0.06")
35.5(1.40")
15(0.60")
15(0.60")
8
7
4
5
1 2 3
6
5
Power Supply
24V DC
AL2-14MR-D
AL2-24MR-D
AL2-2TC-ADP AL2-2TC-ADP AL2-2TC-ADP
DC power line
Analog signal
K-type
Thermocouple
K-type
Thermocouple
K-type
Thermocouple
