α 2 Simple Application Controllers
AL2-2DA (AL2-14MR-*, AL2-24MR-*) 11
ENG-56

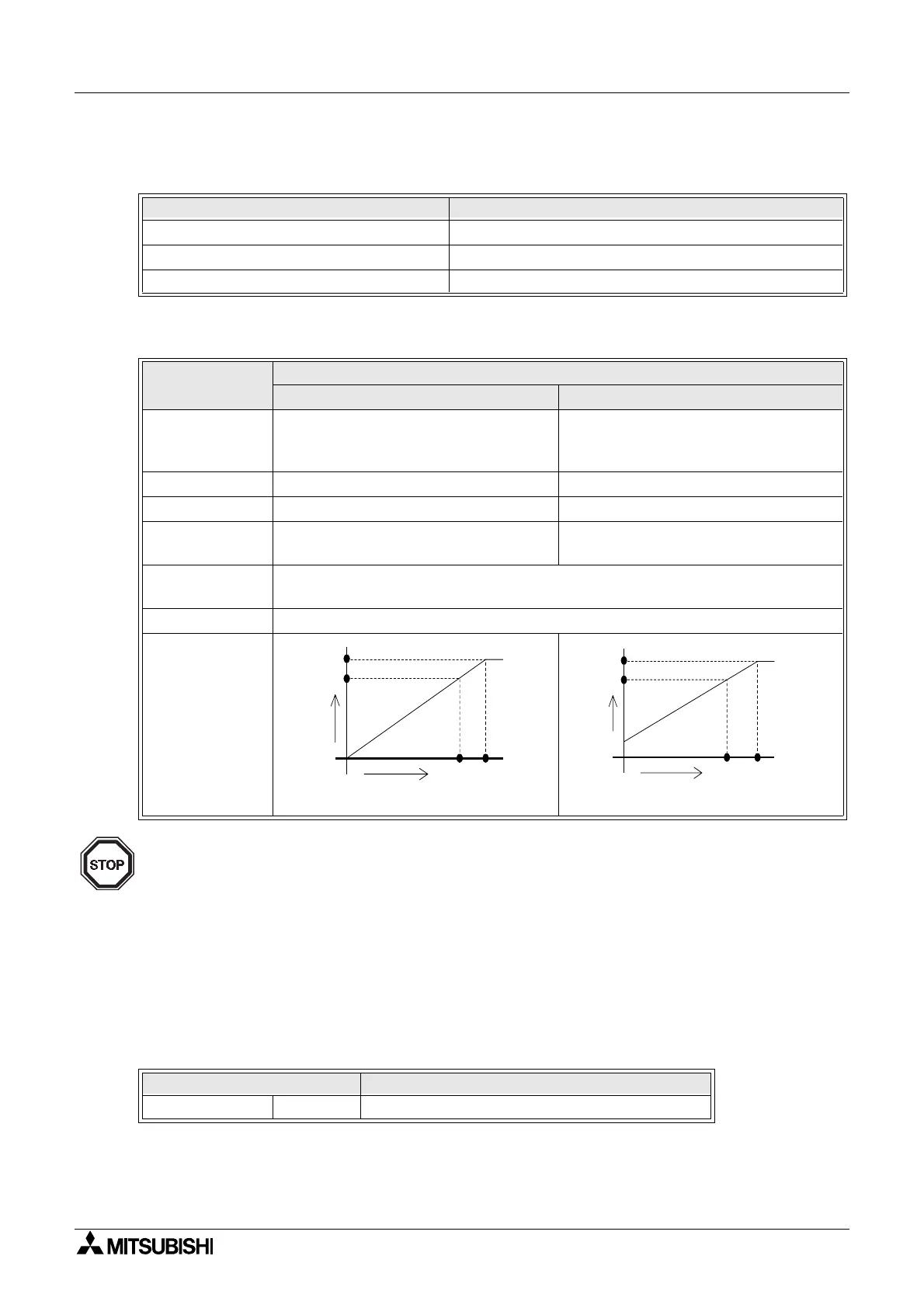

11.2 Specification
Note
1) When the external load resistance is 5kΩ to 1MΩ, the overall accuracy of the voltage
output is adjusted t
o “+/-1%”.(Factory calibration point is 10kΩ external load)
If the load resistance is smaller than 5k
Ω, the output voltage becomes smaller than the
correct value.
2) If the current output mode is used, an external load resistance of 500
Ω or less must be
used.
If the load resistance exceeds 500
Ω, the output current will be lower than the correct
value.
Table 11.2: Power Specification
Item Content
Integrated Power Supply Supplied from the α2 Main Unit
External Supply for Analog output 24V DC
External Supply current consumption 70mA
Table 11.3: Hardware Specification
Item
Specification
Voltage Current
Analog Output
Range
0 - 10V DC
(External load resistance 5k - 1MΩ)
4 - 20mA
(External load resistance less than
500Ω)
Digital Input 0 to 4000 0 to 2000
Resolution 2.5mV (10V / 4000) 8µA ((20-4)mA / 2000)
Integrated
accuracy
+/- 1% Full scale (0-10V : +/-0.1V) +/- 1% Full scale (4-20mA : +/-0.16mA)
D/A Conversion
Time
20ms (10ms x 2ch)
Isolation Circuit Photocoupler
Input
Characteristics
Table 11.4: Software Specification
Item Content
System Bit M16 “ON” when external power for the AL2-2DA
Digital input
10V
04000
4040
10.1V
Analog
output
Digital input
20mA
0 2000
2020
20.16mA
Analog
output
4mA
