C-10

3 Wiring

3.1 Terminal Layout

/FX

3UC

Series PLC User's Manual - Analog Control Edition

FX3U-4AD-ADP (4-channel analog Input)

3.1 Terminal Layout

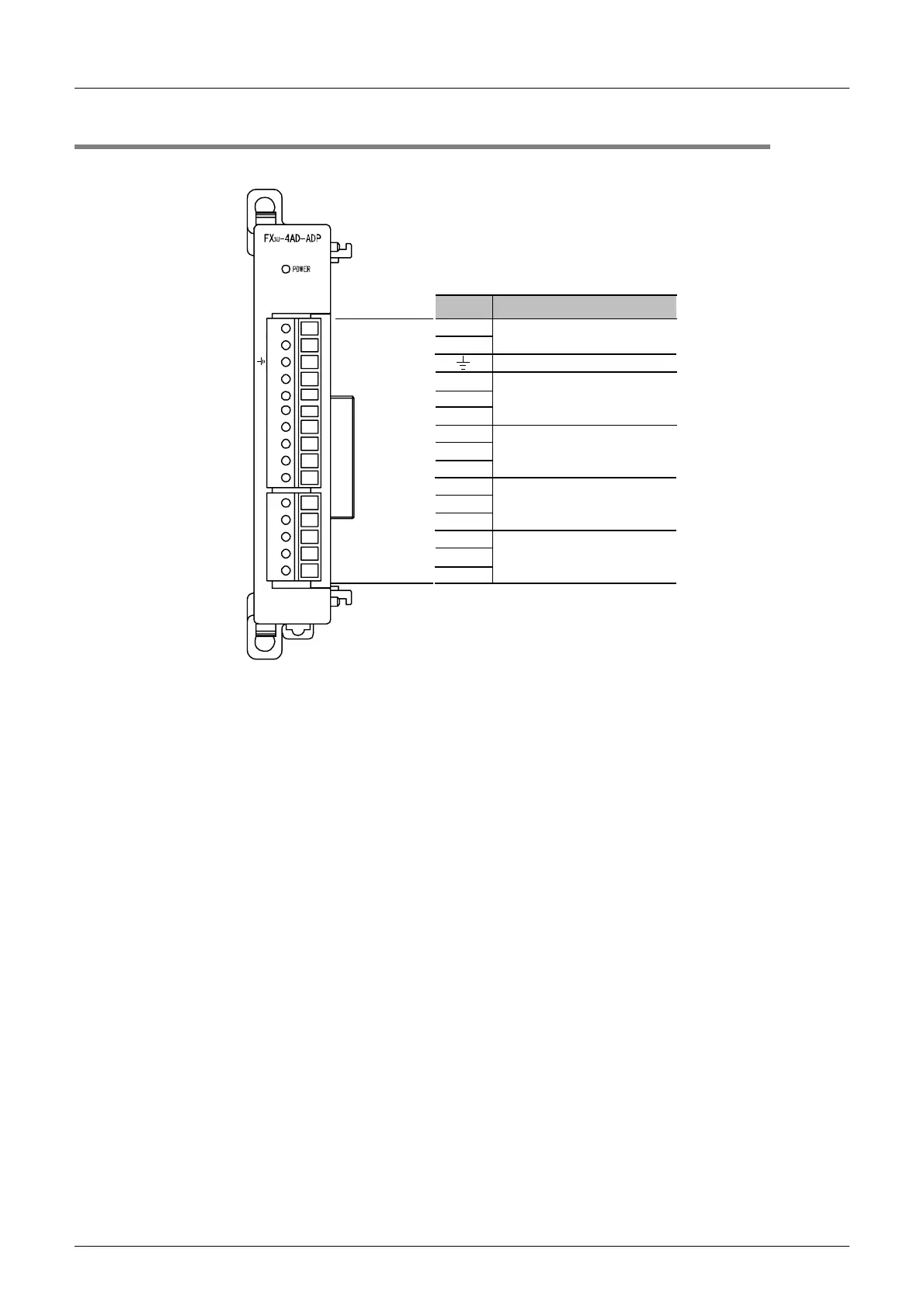

The terminals of 4AD-ADP are arranged as follows:

Signal Application

External power

Channel 1 analog input

Channel 3 analog input

Channel 4 analog input

Channel 2 analog input

24+

24-

I1+

COM1

V2+

I3+

COM3

V4+

COM4

V1+

I2+

COM2

V3+

I4+

Grounding terminal

24+24-VI+I1+

COM1

V2+I2+

COM2

V3+I3+

COM3

V4+I4+

COM4
