3 System Configuration Drawings of Analog Products
3.1 FX3U Series PLC
FX 3U /FX 3UC Series PLC User's Manual - Analog Control Edition
Common Items
3.1 FX3U Series PLC

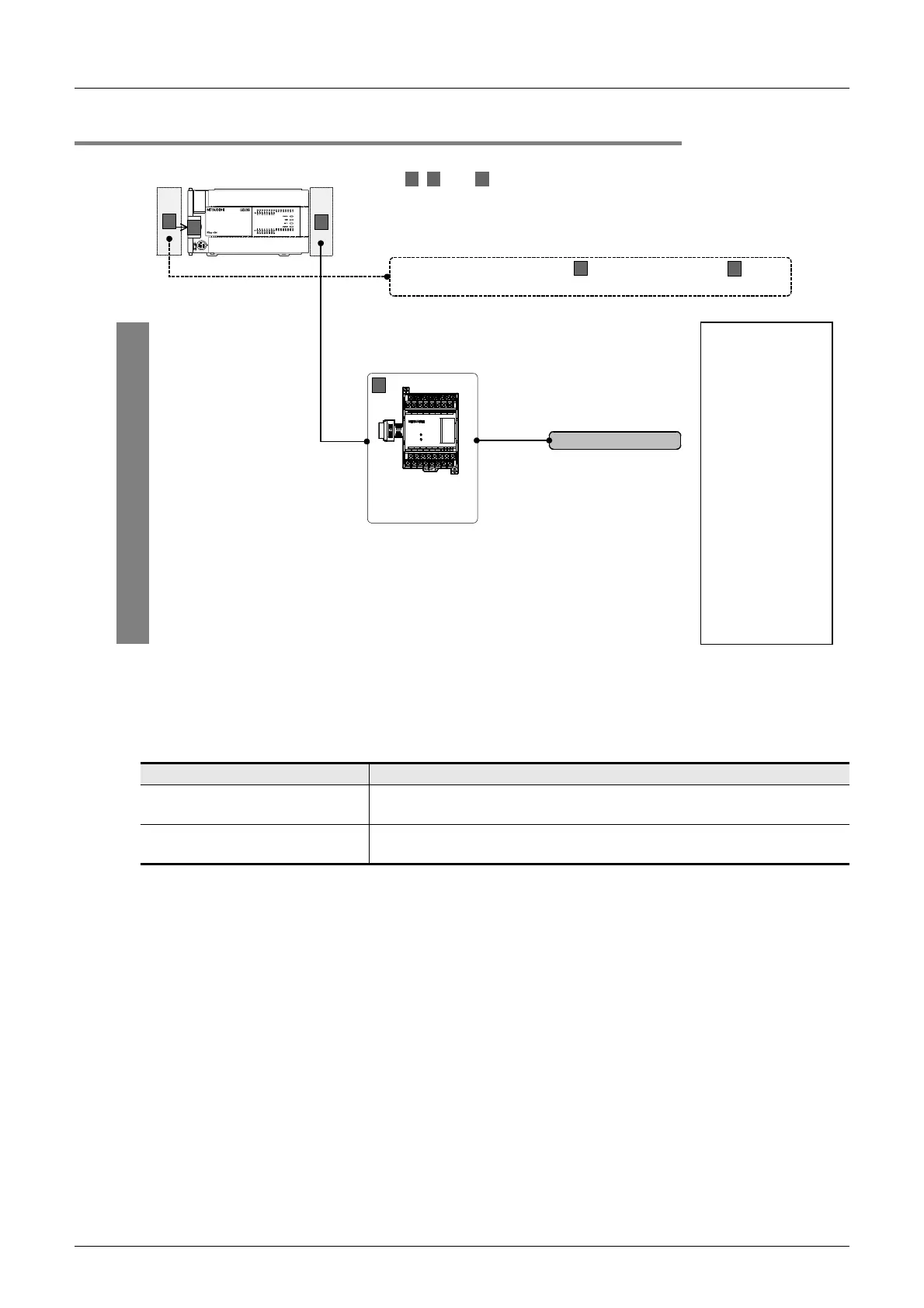

3.1.2 Connection of special function blocks
• For a detailed description of the connectable special function blocks and system configuration:
→ Refer to the FX
3U Series User's Manual - Hardware Edition.
The analog special function blocks for the FX
2N and FX0N shown in the following table can be connected to
the FX
3U Series PLC:
FX Series Type
Analog special function blocks for
the FX
2N
FX2N-8AD, FX2N-4AD, FX2N-2AD, FX2N-4DA, FX2N-2DA, FX2N-5A,
FX
2N-4AD-PT, FX2N-4AD-TC, FX2N-2LC
Analog special function blocks for
the FX
0N
FX0N-3A
Up to 8 special function blocks can be connected.
Bor the expansion boards
A
To connect the special adapters
refer to the previous page.
,
FX 3U Series
C
A
B
B C
represent the connecting positions.
For a detailed description of installation, refer to the following manual
attached to your PLC.
→ Refer to the FX 3U Series User's Manual - Hardware Edition.
A
and
,,
C
Special function
block for FX
2 N
and FX 0N
V8+
COM7
COM6
I6+
I7+
V6+
V5+
COM4
I1+V1+
V7+
V4+I2+V2+
24V
POWER
24-24+
I5+
COM8
COM5
COM1 COM3I3+V3+
I4+
I8+
COM2
FX 2N -8AD
Terminal block
Analog input
• Flowmeter
• Pressure sensor
• Signal converter,
etc.
Analog output
• Inverter, etc.
Temperature sensor
input
• Thermocouple
• Platinum resistance
thermometer
sensor (Pt100)
