Mitsubishi MELSEC-F FX3U Series User Manual

B-5
1 Outline
1.3 Connectable PLC and Its Version Number
A
Common Items
B
FX
3UC
-4AD
C
FX
3U
-4AD-ADP
D
FX
3U
-4DA-ADP
E
FX
3U
-4AD-PT
-ADP
F
FX
3U
-4AD-TC
-ADP
G
PID Instruction (FNC 88)
FX 3U /FX 3UC Series PLC User's Manual - Analog Control Edition
FX3UC-4AD (4-channel Analog Input)

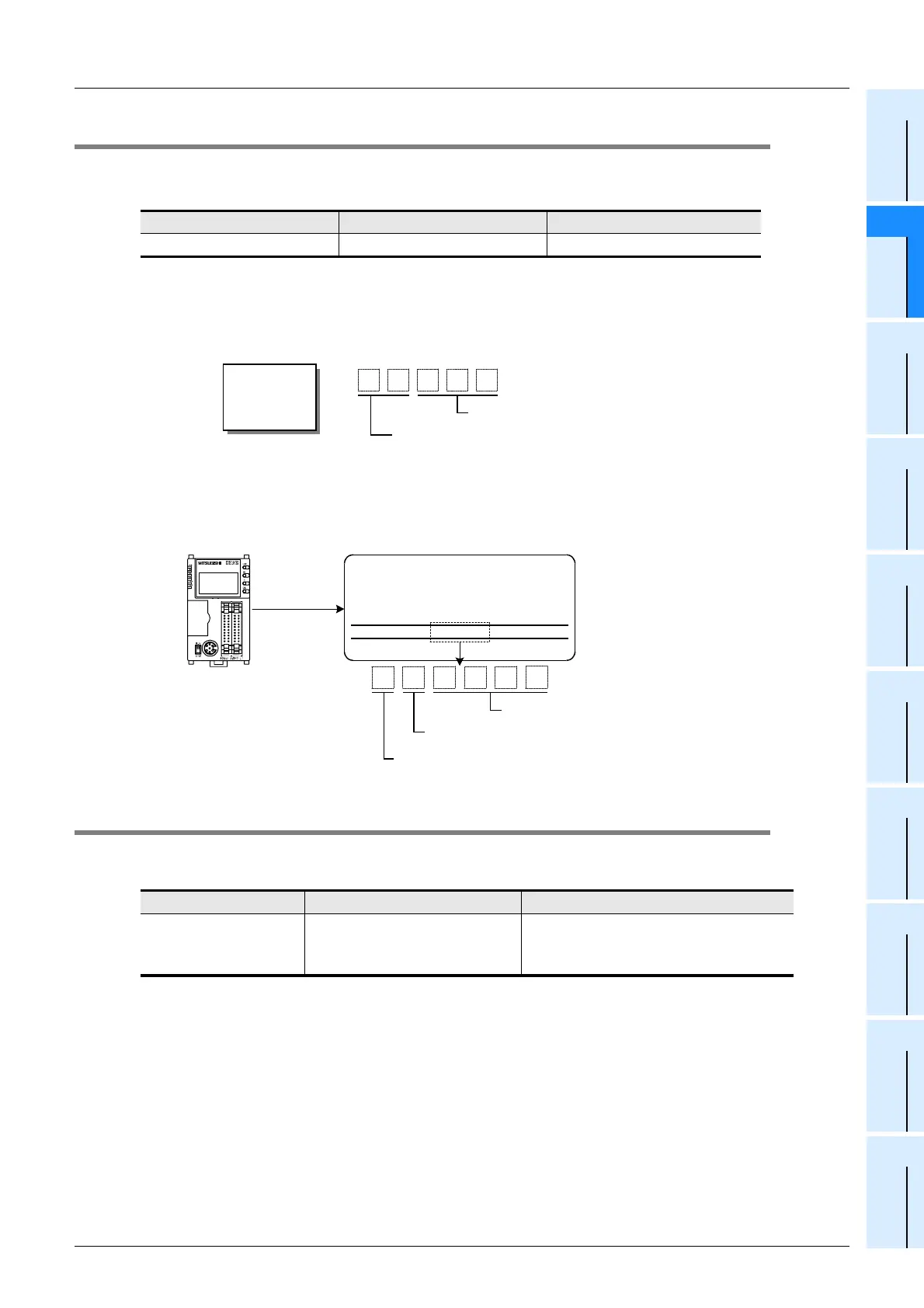

1.3 Connectable PLC and Its Version Number
4AD is compatible with the following PLC.
1. Version number check method
Check the D8001 special data register to determine the version number of the compatible PLC.
2. Description of production number
A label is affixed to the right side of the product. On this label, check the number written on the right side of
"SERIAL" to determine the date (month and year) of production.
1.4 Version Number of Compatible Programming Tool
Use the programming tool with the following version number to create 4AD programs for the FX3UC Series
PLC.
If a programming tool with the wrong version number is used, some instructions and devices cannot be used.
Compatible PLC Version number Date of production
FX
3UC Series PLC Ver. 1.30 or later August 2004 and later
Software Compatible version number Remarks
GX Developer
•SW
D5C-GPPW-J
•SW
D5C-GPPW-E
Ver. SW8 P or later
(Ver. 8.13P)
When selecting the model, select FX
3UC.
D8001
PC type and
version number
2 4 1 0 0
Version data (Example: Ver. 1.00)
PC type (Example: 24 = FX
2N , FX 3U , FX 2NC , and FX 3UC series)
MITSUBISHI
MODEL
DC24V 7W MAX
SERIAL
FX 3UC -32MT-LT
PROGRAMMABLE
CONTROLLER
410001
Right side
4 1 0 0 0
Control number
Year (Example: 2004), last digit of dominical year
1
Month (Example: 1 = January), 1 to 9 = January to
September, X = October, Y = November, Z = December
