4. Comparison of Performance Specifications
The analog product performance specifications are shown in the following tables. Select the optimal product
for your equipment.

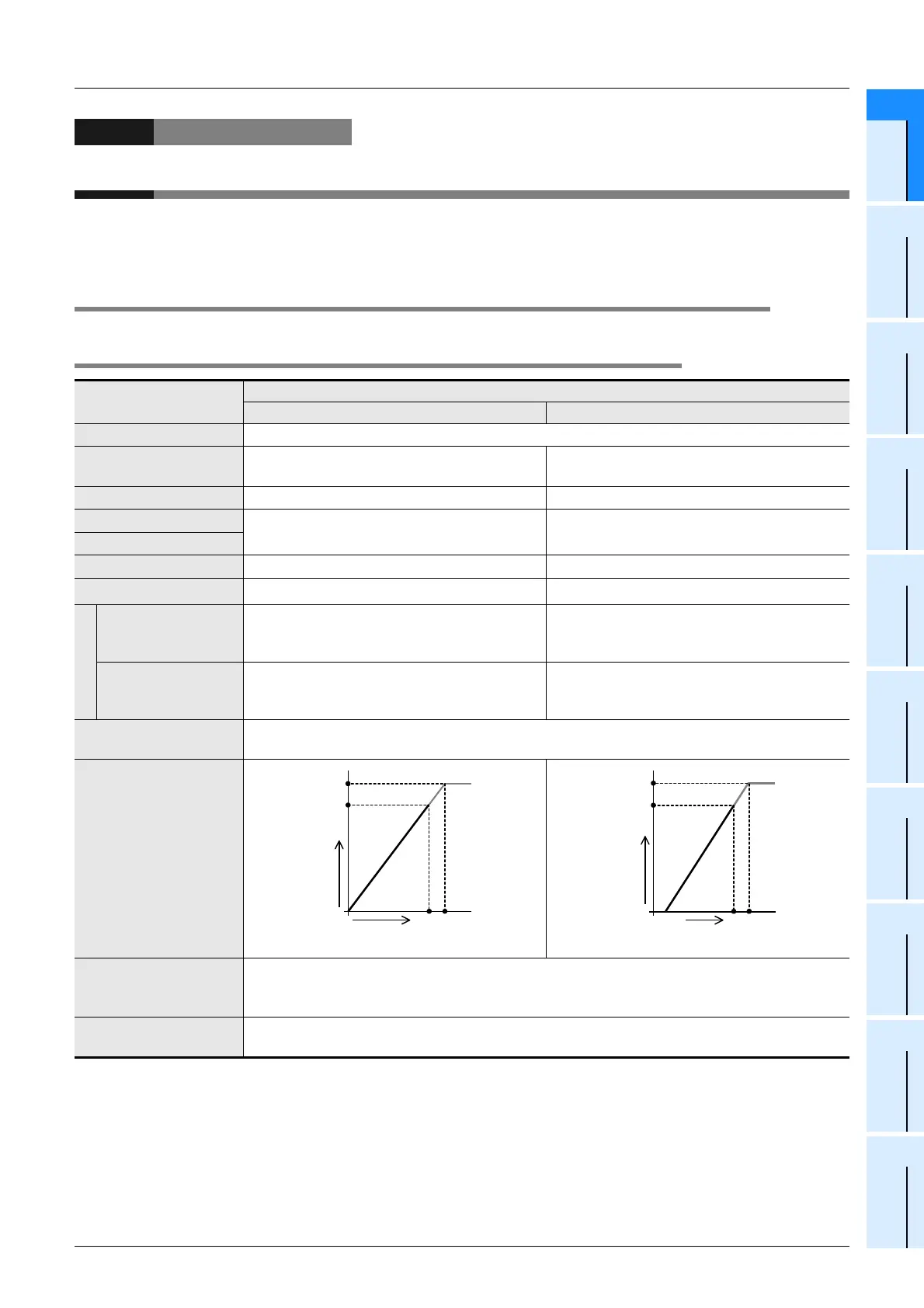

4.1 Analog Input
4.1.1 FX3U-4AD-ADP
*1. The resolution and the input/output characteristics depend on the selected mode.
Specifications
FX3U-4AD-ADP
Voltage input Current input
Number of input points 4ch
Analog input range
0V to 10V DC
(Input resistance: 194 kΩ)
4mA to 20mA DC
(Input resistance: 250 Ω)
Absolute maximum output -0.5V,+15V -2mA,+30mA
Offset
Impossible to change Impossible to change
Gain
Digital output 12 bits, binary 11 bits, binary
Resolution
*1
2.5mV(10V×1/4000) 10µA(16mA×1/1600)
Overall accuracy
Ambient temperature
:25±5°C
±0.5%(±50mV) for full scale of 10V ±0.5%(±80µA) for full scale of 16mA
Ambient temperature
:0 to 55°C
±1.0%(±100mV) for full scale of 10V ±1.0%(±160µA) for full scale of 16mA
Time required for A/D
conversion
200µs (The data will be updated at every scan time.)
Input characteristics
*1
Insulation method
• The photocoupler is used to insulate the analog input area from the PLC.
• The DC/DC converter is used to insulate the power supply from the analog inputs.
• Channels are not insulated from each other.
Number of I/O occupied
points
0 point (This number is not related to the maximum I/O points of the PLC.)
0
4000
10V
4080
Analog input
Digital output
Approx. 10.2V
0
1600
20mA
Approx. 1640
Analog input
Digital output
4mA
Approx. 20.4mA
