3. SIGNALS AND WIRING
3 - 14

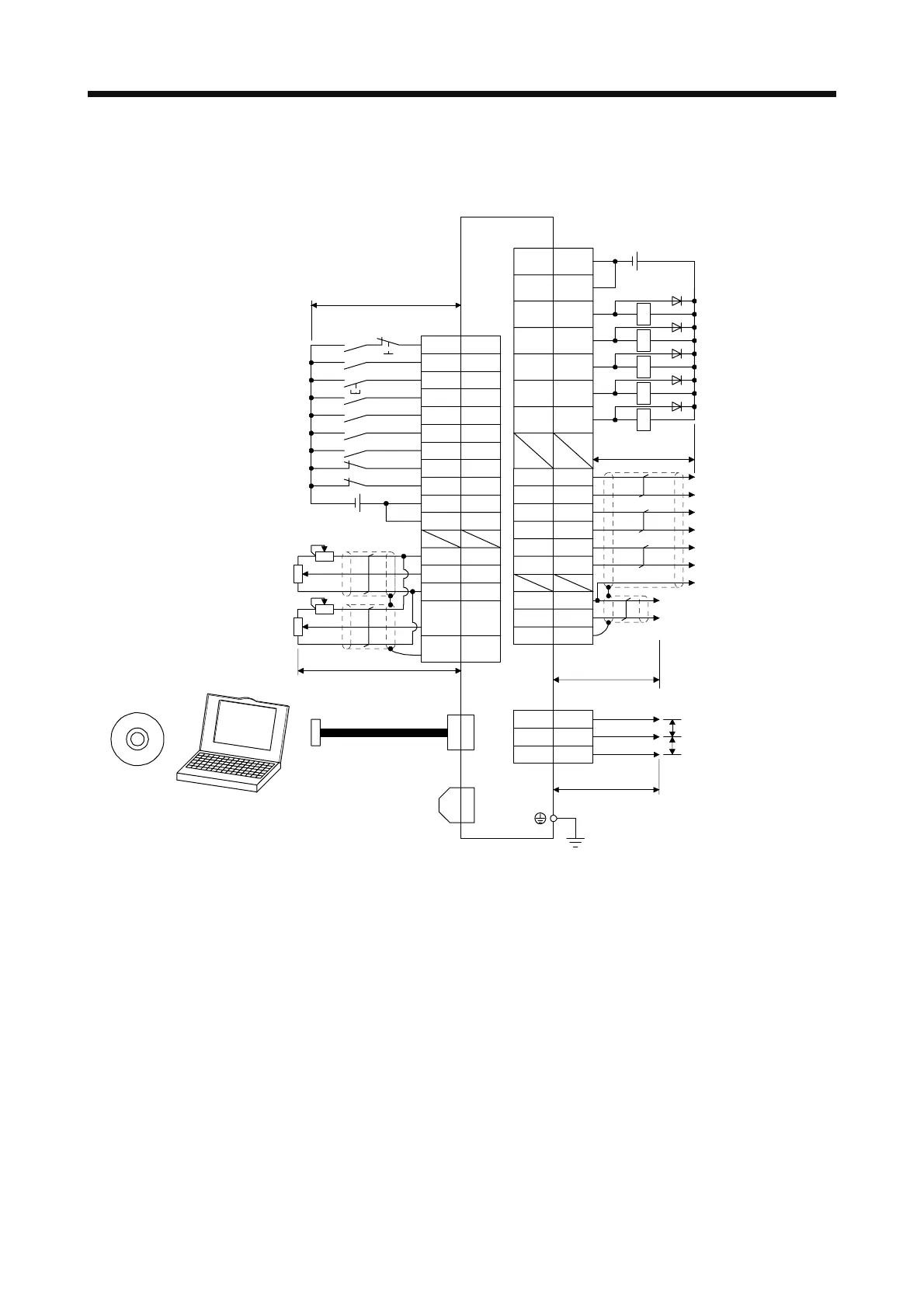

3.2.2 Speed control mode
(1)
Sink I/O interface
(Note 13)
Main circuit power supply
CN8
(Note 12)
Short-circuit connector
(Packed with the servo amplifier)
(Note 1)
(Note 8)
(Note 11)
Analog speed command
±10 V/rated speed
(Note 2)
(Note 7)
CN1
(Note 7)
CN1
Plate
Servo amplifier
(Note 7)
CN6
2 m or less
3
MO1
1L
G
2
MO2
47
DOCOM
48
ALM
23
ZSP
25
TLC
24
SA
49
RD
(
4L
A
5
LAR
6L
B
7
LBR
34
LG
33
OP
SD
2 m or less
(
8L
Z
9
LZR
21
DICOM
10 m or less
2
1
2 m or less
Upper limit setting
28
27
Plate
Upper limit setting
VC
SD
TLA
LG
P15R
+
(Note 10)
USB cable
(option)
CN5
Analog torque limit
+10 V/maximum torque
(Note 9)
MR Configurator2
Personal
computer
(Note 4)
24 V DC
(Note 4)
24 V DC
RA1
RA2
RA3
RA4
RA5
42
15
19
17
18
43
44
20
41
16
EM2
SON
RES
ST1
ST2
LSP
LSN
DICOM
SP1
SP2
Reve
rse ro
tat
ion
stroke end
Forced stop 2
Servo-on
Reset
Speed selection 1
Forward rotation start
Speed selection 2
Reverse rotation start
Forwar
d rotation
stroke end
(Note 3, 5)
(Note 5)
DC ± 10 V
DC ± 10 V
Anal
og monitor
1
Anal
og monitor
2
Encoder A-phase pulse
(differential line driver)
Encoder B-phase pulse
(differential line driver)
Control common
Encoder Z-phase pulse
(open collector)
Encoder Z-phase pulse
(differential line driver)
Malfunction
(Note 6)
Zero speed
detection
Limiting torque
Speed reached
Ready
10 m or less
46
DOCOM
80
82
