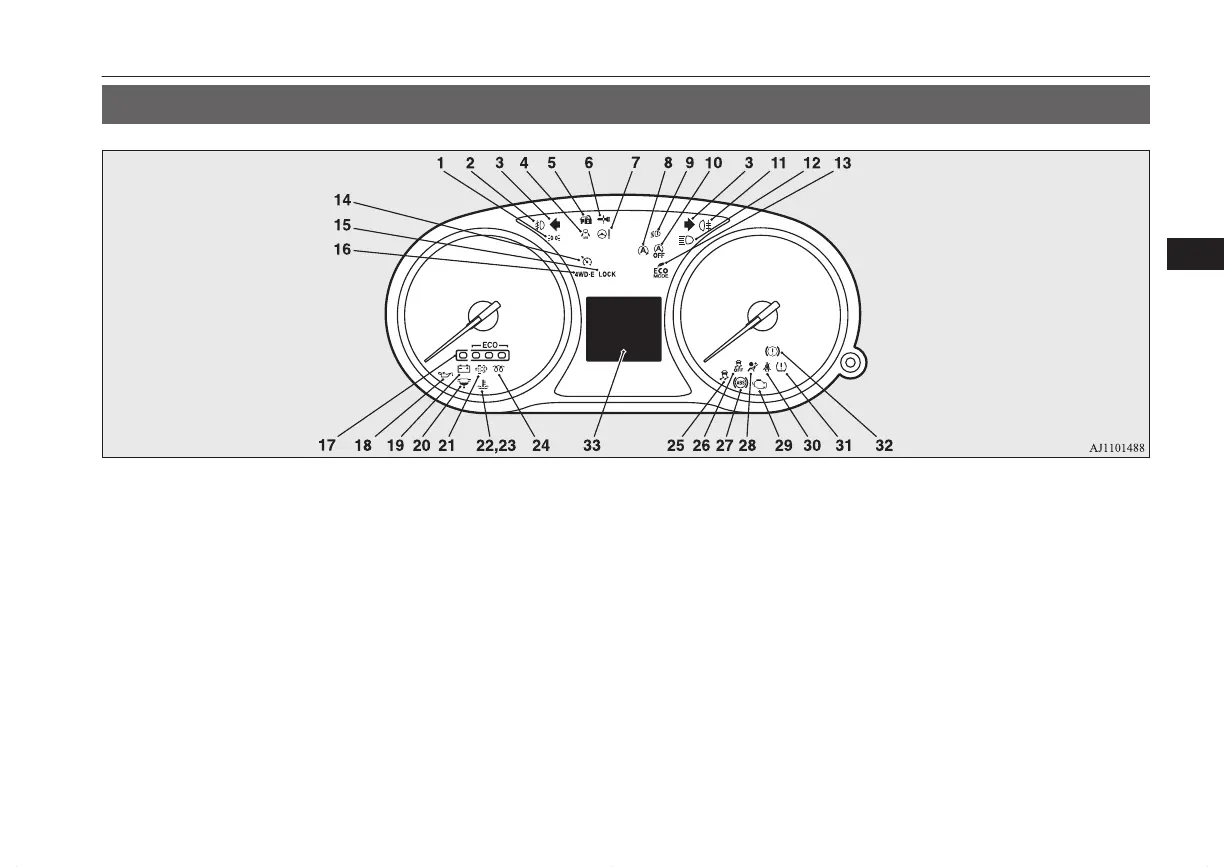

Indication and warning lamps (multi information display - Type 2)
E00501503793
1- Position lamp indication lamp
® p. 5-49
2. Front fog lamp indication lamp*
® p. 5-48
3- Turn-signal indication lamps/Hazard
warning indication lamps ® p. 5-48
4- Door ajar warning lamp ® p. 5-52
5- For details, refer to “Steering wheel
lock” on page 6-16. (if so equipped)
6- For details, refer to “Warning activa-
tion” on page 3-14. (if so equipped)
7- Electric power steering system (EPS)
warning lamp ® p. 6-66
8- Auto Stop & Go (AS&G) indication
lamp* ® p. 6-28
9- LED headlamp warning lamp*
® p. 5-57
10- Auto Stop & Go (AS&G) OFF indica-
tion lamp* ® p. 6-28
11- Rear fog lamp indication lamp
® p. 5-48
12- High-beam indication lamp ® p. 5-48
13- ECO mode indication lamp* ® p. 5-62
14- Cruise control indication lamp*
® p. 6-70
15- 4WD LOCK mode indication lamp*
® p. 6-51
16- 4WD ECO mode indication lamp*
® p. 6-51
17- ECO drive assist* ® p. 5-13
18- Oil pressure warning lamp ® p. 5-51
19- Charge warning lamp ® p. 5-51
20- Fuel filter indication lamp (diesel-pow-
ered vehicles equipped with the multi in-
formation display - Type 2) ® p. 5-50
21- Engine oil level warning/Diesel particu-
late filter (DPF) warning*
If this lamp blinks, refer to Engine oil
level warning ® p. 5-52
If this lamp illuminates, refer to Diesel
particulate filter (DPF) ® p. 6-26
Indication and warning lamps (multi information display - Type 2)
5-47
OGFE16E1
