No.
Sym-
bol
Electrical system
Ca-
paci-
ties
F17
Headlamp high-beam
(left)
10 A
F18
Headlamp high-beam
(right)
10 A
F19
Headlamp
low beam
(left)
LED 20 A
F20
Headlamp
low beam
(right)
LED 20 A
F21
Headlamp
low beam
(left)
Halogen 10 A
F22
Headlamp
low beam
(right)
Halogen 10 A
F23 Battery current sensor 7.5 A
#1 — Spare fuse 10 A
#2 — Spare fuse 15 A
#3 — Spare fuse 20 A
*
: Fusible link
l
Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l
The table above shows the main equip-
ment corresponding to each fuse.
The fuse box does not contain spare 7.5 A,
25 A or 30 A fuses. If one of these fuses
burns out, substitute with the following fuse.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.
Identification of fuse
E01008100379
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A
Green (fuse type) / Pink (fu-
sible link type)
40 A Green (fusible link type)
Fuse replacement
E01007800845
1. Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the “LOCK” posi-
tion or put the operation mode in OFF.

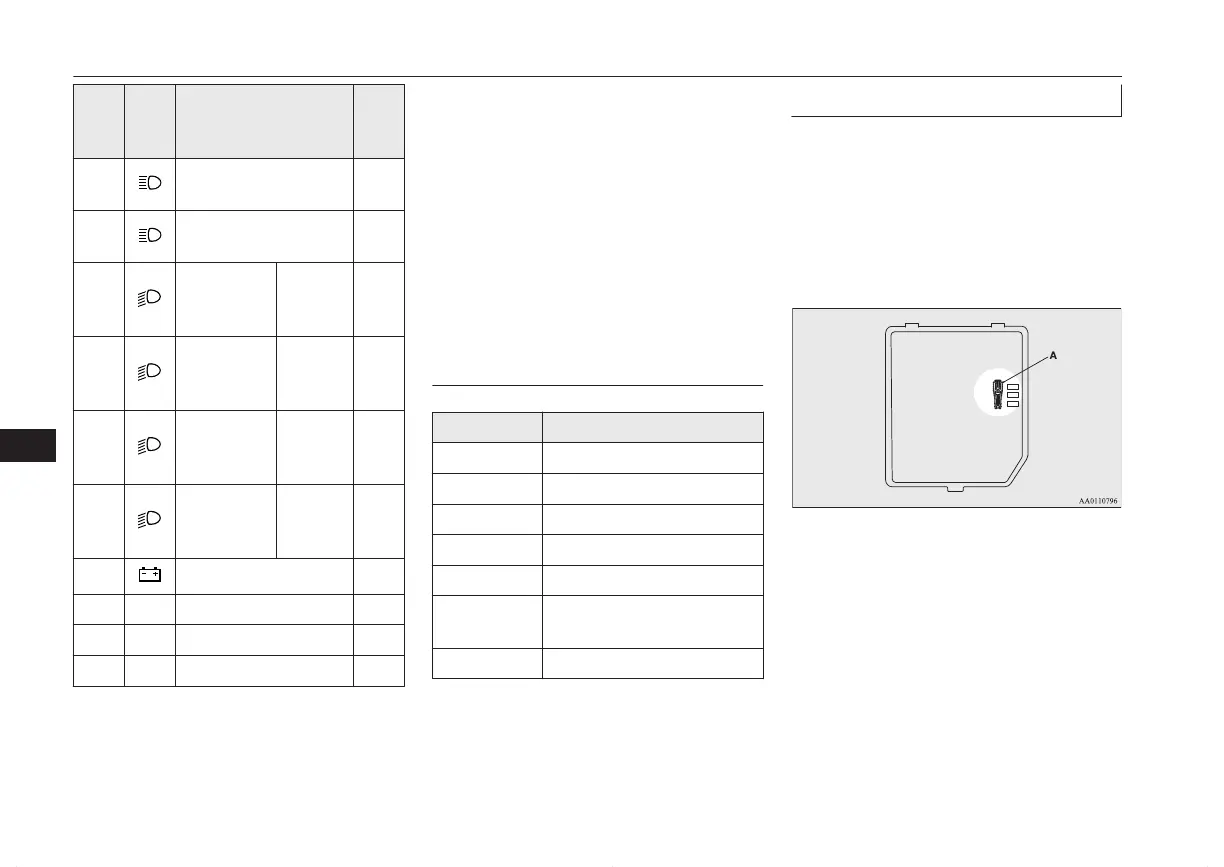

2. Remove the fuse puller (A) from the in-
side of the fuse block cover in the engine
compartment.
3.
Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
Fuses
10-22
OGFE16E1
Maintenance
10
