6.4 Setting Output (Y) Status when Changing between STOP and RUN
6
FUNCTIONS
(3) Operation when changing from STOP status to RUN status
(a) Output (Y) status prior to STOP is output (Default)
After the output (Y) status before the STOP status is output, the sequence
program calculations are performed.
(b) Output (Y) is cleared
The output (Y) is OFF status.
The output (Y) will be output after the sequence program operation is executed.
Refer to (5) for the operation when forcibly turning ON the output (Y) in STOP
status.

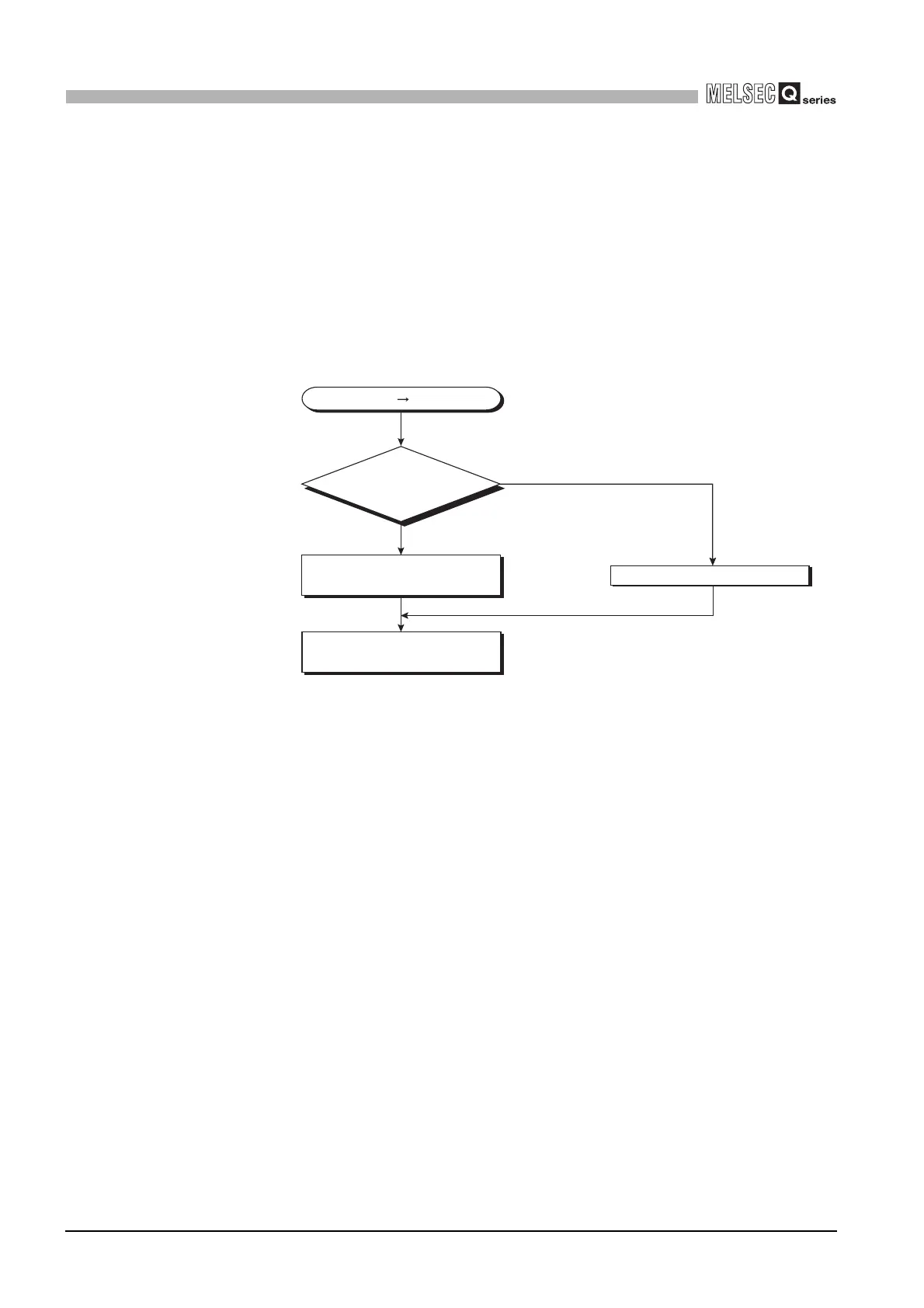

Figure 6.9 Operation when Change from STOP Status to RUN Status
STOP status RUN status
Clear the output (Y) status.
YES (Set "Previous state". (default))
Output the output (Y) status right
before changing to STOP status.
Execute the sequence
program calculations.
NO (Set "Recalculate".)
Is "Previous state" set?
