Mitsubishi Q02HCPU User Manual

12 - 11
12.2 High Performance Model QCPU, Process CPU, Redundant CPU, Universal Model QCPU
12.2.3 Procedure for writing one program
12
PROCEDURE FOR WRITING PROGRAM TO CPU
MODULE

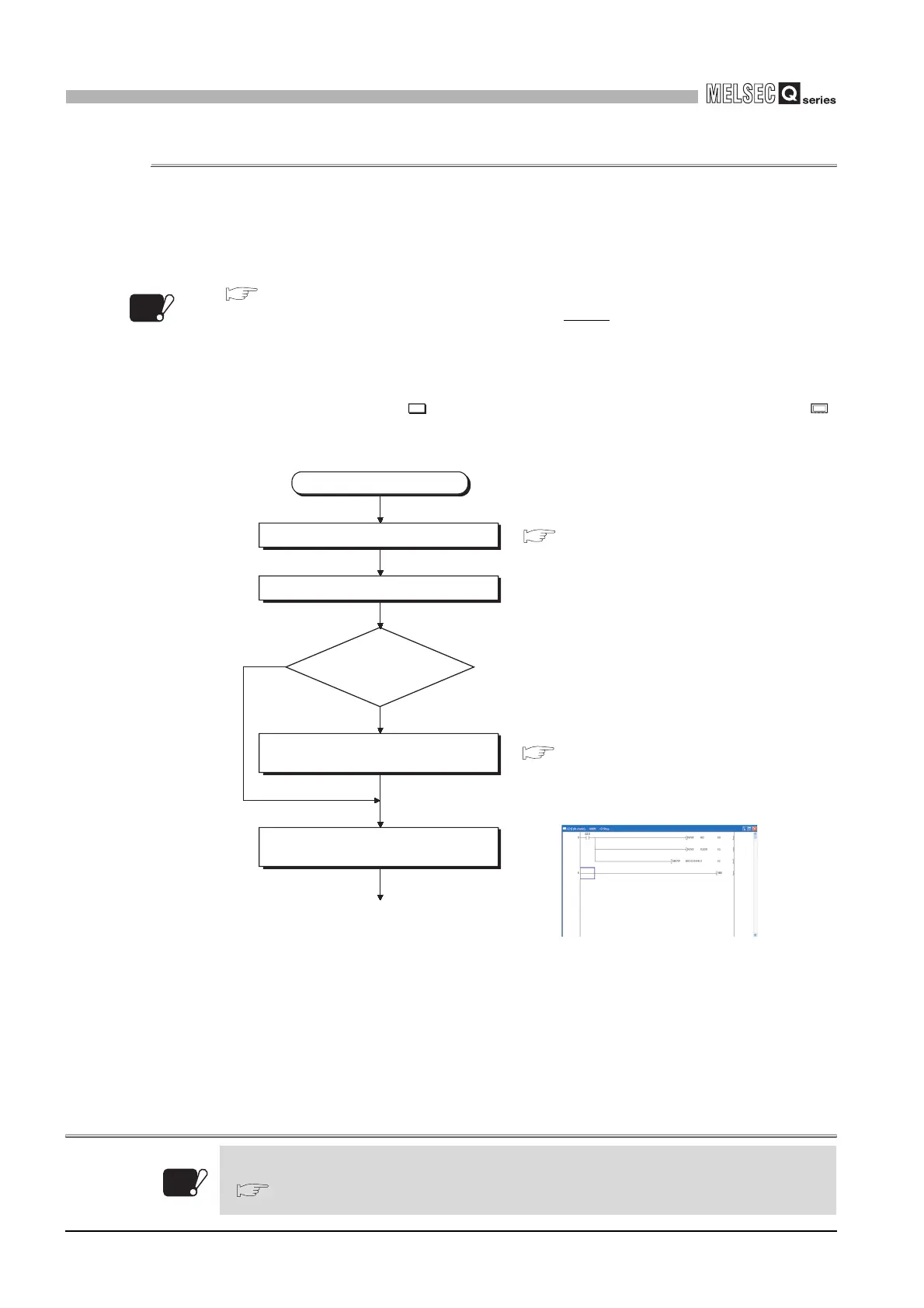

12.2.3 Procedure for writing one program
This section explains the procedure for writing the parameters and program created by GX
Developer to the High Performance model QCPU, Process CPU, Redundant CPU or
Universal model QCPU.
This section explains the procedure for writing a program to the program memory
( Section 5.2.2).
When storing the program into the standard ROM
Note12.1
or memory card and executing
boot run, perform the procedure given in this section, and then carry out the procedure
given in Section 12.2.5.
In the following procedure, indicates the operation on the GX Developer side, and
indicates that on the High Performance model QCPU, Process CPU, Redundant CPU or
Universal model QCPU side.
Note12.1
Universal
UD
............
Start
Start GX Developer.
Set the project.
Change the number of device points in
device setting of PLC parameter.
Create a program to be executed in the
CPU module.
GX Developer Operating Manual
Ladder (write) screen
Do you
change the number
of device points
used?
NO
YES
1)
Section 10.2
The Universal model QCPU cannot boot data from the standard ROM to the program memory.
( Section 5.2.3)
Note12.1
Universal
UD
