10.6 Index Register(Z) / Standard Device Resister(Z)
10.6.4 Switching scan/low speed exec. to Interrupt/fixed scan exec.
10
DEVICE EXPLANATION
10.6.4 Switching scan/low speed exec. to Interrupt/fixed scan exec.Note19
The CPU module performs the following processing when switching between a scan/
low speed execution type program and an interrupt/fixed scan execution type
program.
• Index register value is saved (protected)/restored.
• File register block No. is saved (protected)/restored.
(1) Save (protection)/restoration setting
For the index register, when not writing date to index registers check by using an
interrupt program/fixed scan execution type program, the "High speed execution"
check box in the "Interrupt program/Fixed scan program setting" section at the "PLC
system" tab screen in the "(PLC) Parameter" dialog box. This will switch between
programs quickly.
Note19

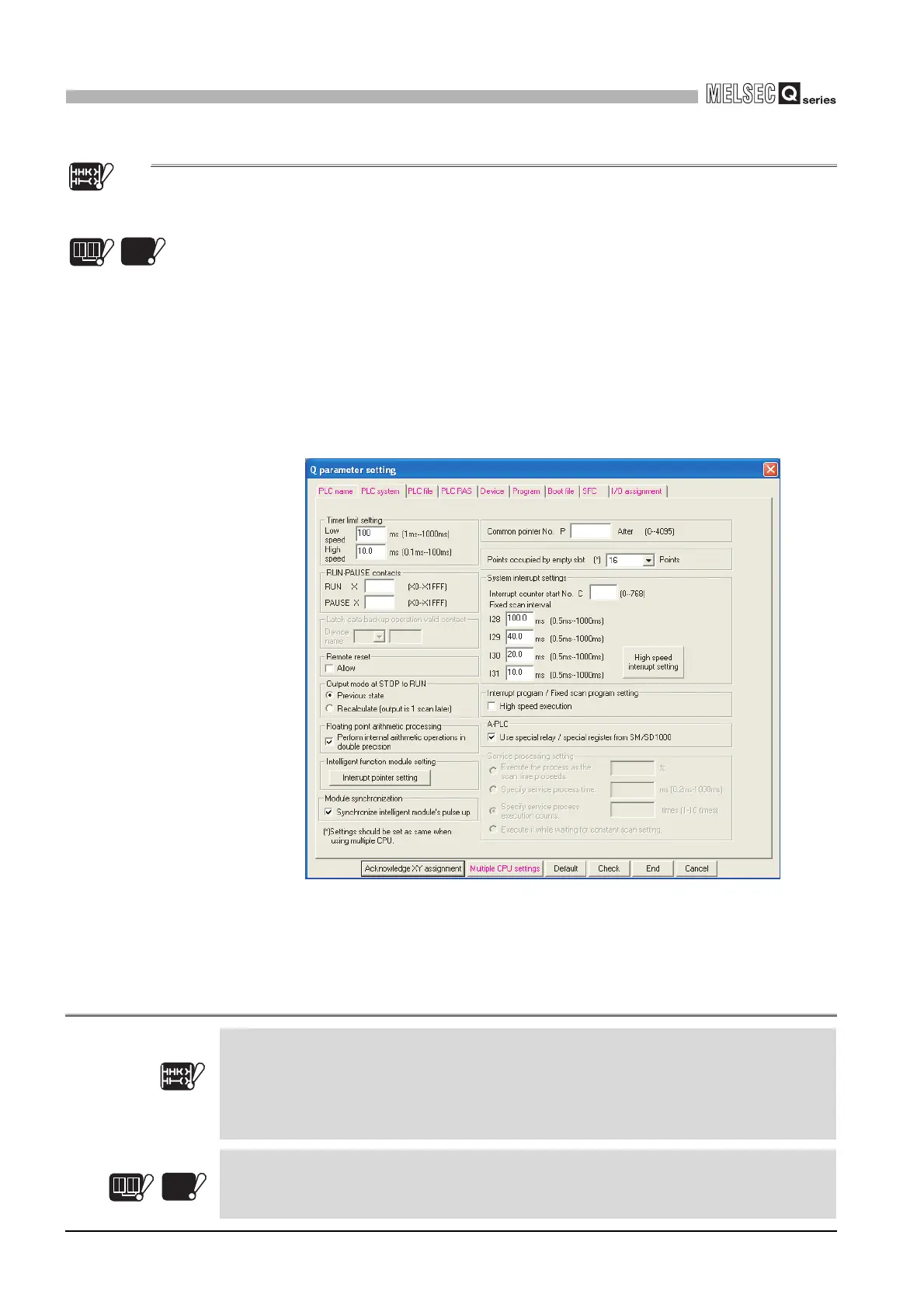

Figure 10.61 Interrupt program/fixed scan program setting
Basic model QCPU does not support the low speed execution type program and fixed scan exe-
cution type program.
Replace "scan/low speed execution type program" with "main routine program/sub-routine pro-
gram" and "interrupt/fixed scan execution type program" with "interrupt execution type program",
respectively, throughout this section.
Note10.18
Basic
Redundant CPU and Universal model QCPU does not support the low speed execution type pro-
gram.Replace "scan/low speed execution type program" with "scan execution type program"
throughout this section.
Note10.19
Redundant
Universal
UD
Note10.19
Basic
Note10.18
Redundant
Universal
UD
Note10.19
Note10.19
