8.3.3 Starting the Intelligent function module utility
[Operating procedure]
Intelligent function module utility is started from GX Developer.
[Tools]
[Intelligent function utility] [Start]

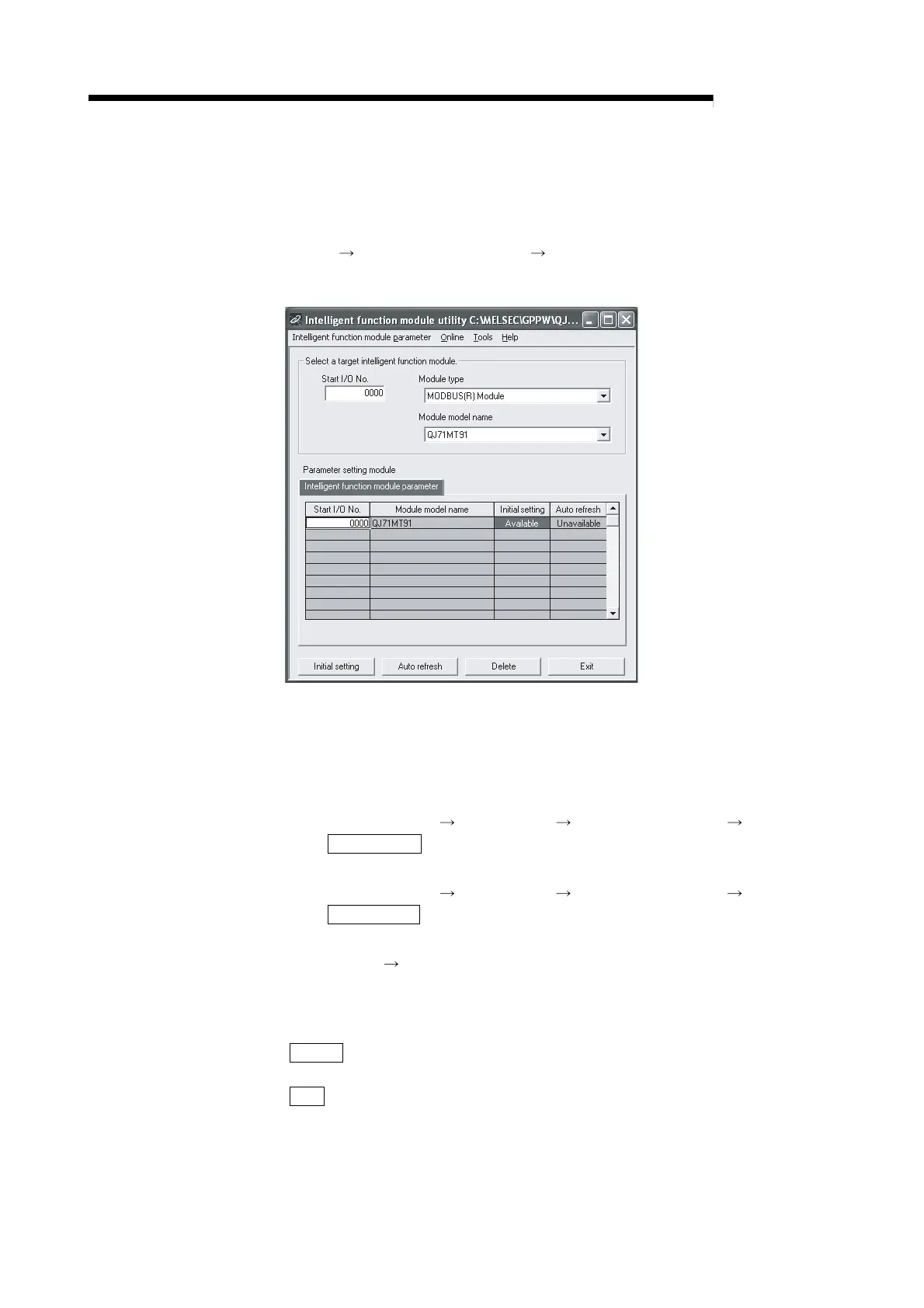

[Setting Screen]
[Explanation of items]
(1) Activation of other screens
Following screens can be displayed from the intelligent function module utility
screen.
(a) Initial setting screen
"Start I/O No."
*1
"Module type" "Module model name"
Initial setting
(b) Auto refresh setting screen
"Start I/O No."
*1
"Module type" "Module model name"
Auto refresh
(c) Select monitor/test module screen
[Online] [Monitor/Test]
*1: Enter the start I/O No. in hexadecimal.
(2) Command buttons
Delete Deletes the initial setting and auto refresh setting of the selected
module.
Exit Closes this screen.
