9 PROGRAMMING
9.2 Program Example for Normal System Configuration
9.2.1 System configuration and program conditions
(1) System configuration

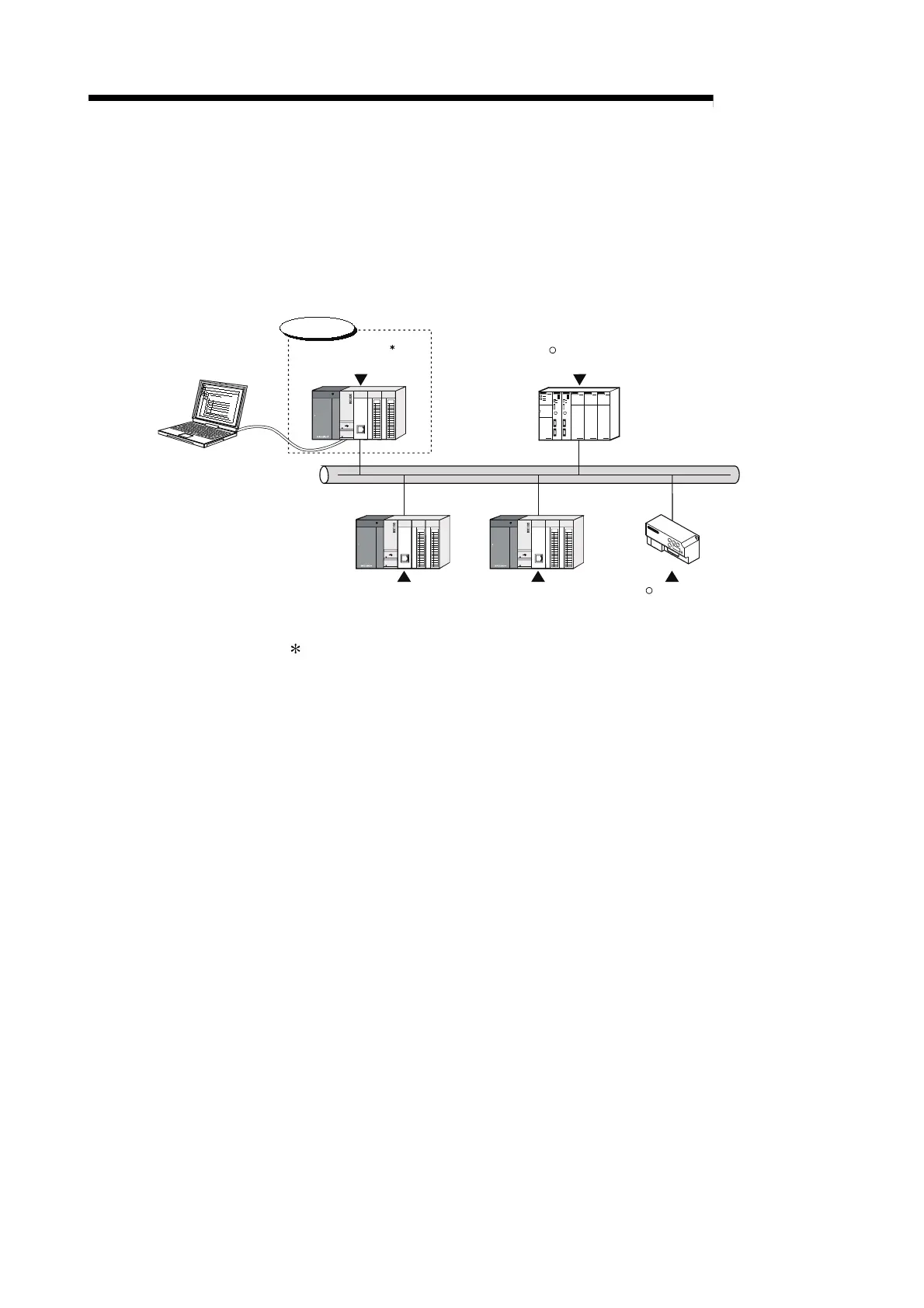

A program will be explained as an example to realize the following specifications
for the setting target QJ71MT91 (192.1.0.1).
Ethernet
QJ71MT91
192.1.0.5
QJ71MT91
1
192.1.0.1
GX Developer
QJ71MT91
192.1.0.6
192.1.0.2
192.1.0.3
Setting target
MODBUS /TCP master device
MODBUS /TCP slave device
R
R
1: This QJ71MT91 is assumed to be mounted in Slot 0 of the base unit with
the head I/O No. set to 0.
