8 - 17 8 - 17
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-MB)
8.6 Monitor/Test
[Monitor/Test Purpose]
From this screen, start the monitoring or test of the operating status, I/O signals,
parameter setting status, automatic communication status, error log,
communication status of the QJ71MT91 and perform PING test.
[Operating procedure]
Select monitor/test module screen "Start I/O No. *"
"Module type"
"Module model name" Monitor/Test
*: Enter the start I/O No. in hexadecimal.
The screen can also be started from System monitor of GX Developer Version 6
or later.
Refer to the GX Developer Operating Manual for details.

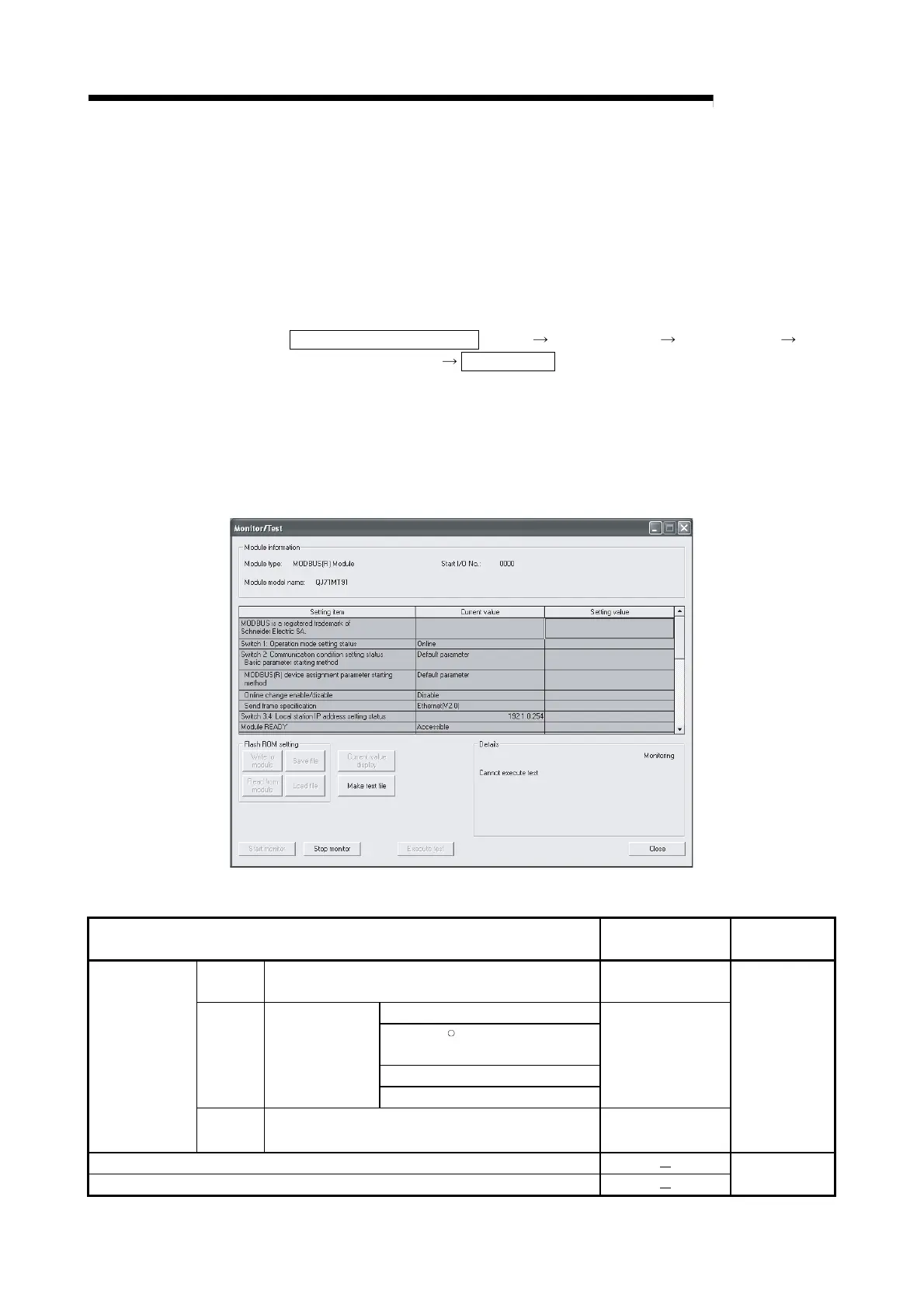

[Monitor/Test Screen]
[Monitor/Test Items]
Monitor/Test Items
Buffer memory
address
Reference
section
Switch 1
Operation mode setting status
0C00H
(3072)
Basic parameter starting method
MODBUS
R
device assignment
parameter starting method
Online change enable/disable
Switch 2
Communication
condition setting
status
Send frame specification
0C01
H
(3073)
Intelligent
function
module switch
setting status
Switch
3, 4
Local station IP address setting status
0C02
H to 0C03H
(3074 to 3075)
Section 6.6
Module READY
Watch dog timer error
Section 11.1
