6 - 10 6 - 10
MELSEC-Q
6 PRE-OPERATIONAL PROCEDURES AND SETTING
6.6 Intelligent Function Module Switch Setting
[Setting purpose]
Set the operation mode, communication condition and IP address.
[Starting procedure for intelligent function module switch setting screen]
1. Start GX Developer.
2. Double-click "Parameter" in the project window of GX Developer, and double-click
"PLC parameter".

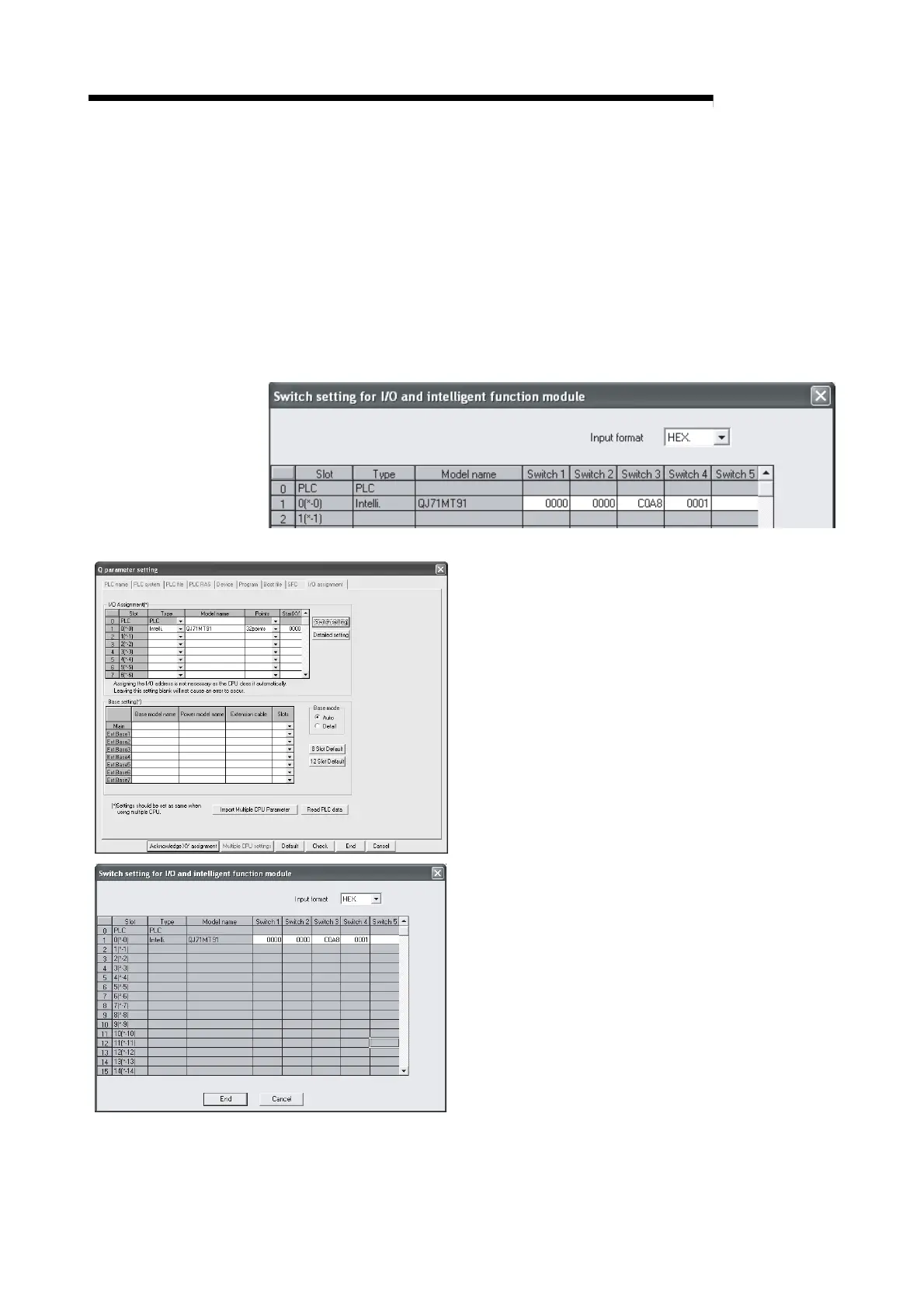

3. Click the <<I/O assignment>> tab and click the [Switch setting] button.
The "Switch seting for I/O and intelligent function module" screen is displayed.
[Operation procedure]
1. I/O assignment setting screen
Set the following to the slot where the QJ71MT91
is mounted.
Type : Select "Intelli".
Model name : Enter the model name of the
module.
Points : Select 32 points.
Start-XY : Enter the head I/O number of the
QJ71MT91.
Detailed setting : Specify the control CPU of the
QJ71MT91 in a multiple CPU
system.
2. Intelligent function module switch setting screen
Click the [Switch setting] button on the I/O
assignment setting screen to display the screen
shown on the left.
Referring to (1) to (3) in this section, make switch
setting.
Entering the values in hexadecimal makes the
setting easy. Change the input format into HEX
before entering the values.
3. After setting, write the data to the programmable
controller, and power the programmable controller
OFF, then ON or reset the programmable controller
CPU.
To Next Page
