Mitsubishi QJ71MT91 User Manual

8 - 29 8 - 29
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-MB)
8.6.6 PING test
[Monitor/Test Purpose]
Display the execution and result of a PING test.
Refer to Section 11.5 for details.
[Operating procedure]
Monitor/Test screen PING test

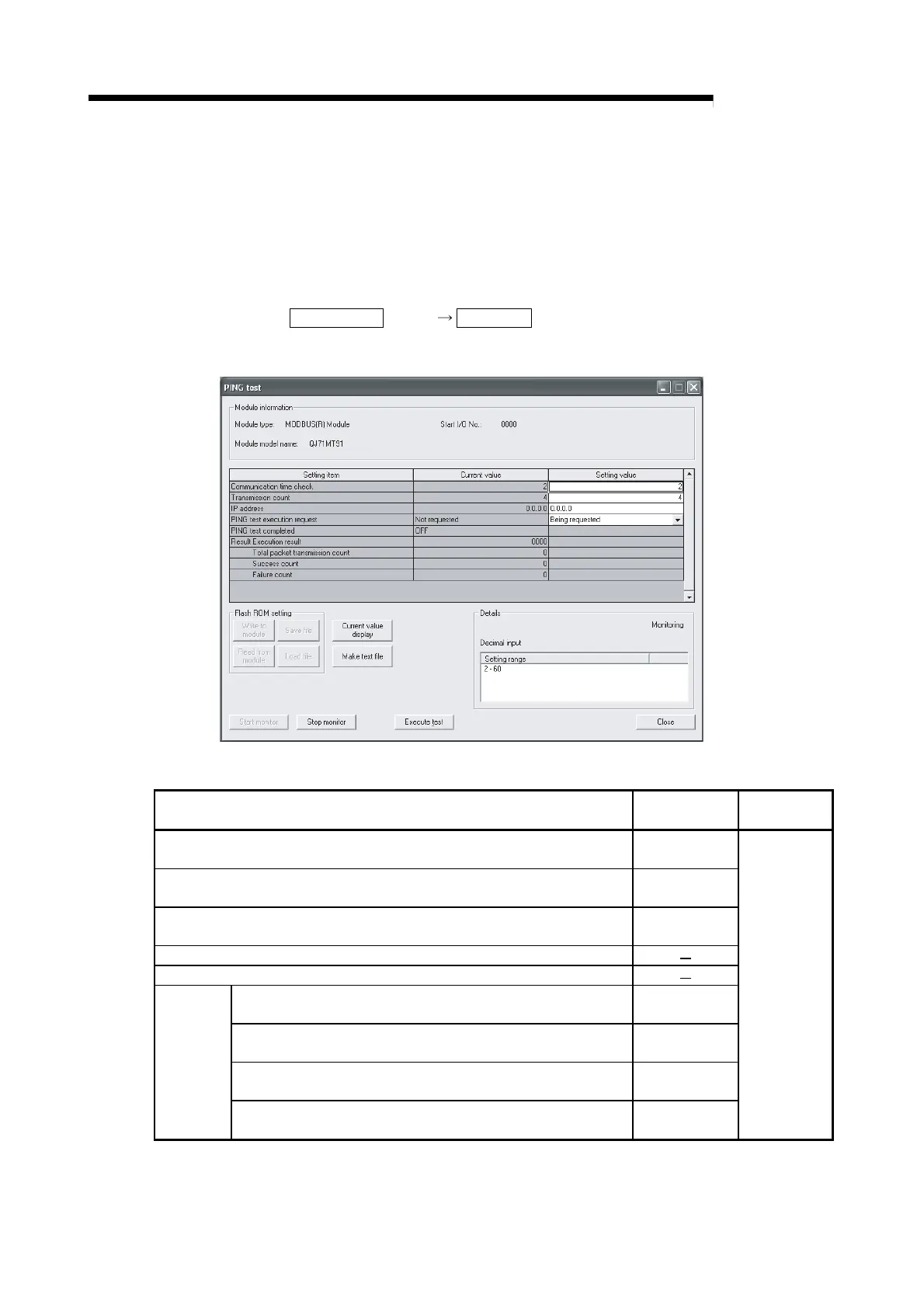

[Monitor/Test Screen]
[Monitor/Test Items]
Monitor/Test Item
Buffer memory
address
Reference
section
Communication time check
0FE0
H
(4064)
Transmission count
0FE1
H
(4065)
IP address
0FE2
H to 0FE3H
(4066 to 4067)
PING test execution request
PING test completed
Execution result
0FE4
H
(4068)
Total packet transmission count
0FE5
H
(4069)
Success count
0FE6
H
(4070)
Result
Failure count
0FE7
H
(4071)
Section 11.5
