11 TROUBLESHOOTING
11.2 Confirming QJ71MT91 Status
This section explains how to confirm the QJ71MT91 status.
Method Reference Section
Monitor/Test screen of GX Configurator-MB This section (1)
System monitor screen of GX Developer This section (2)
(1) Monitoring/testing from GX Configurator-MB
GX Configurator-MB has a Monitor/Test screen for the status display and test of
the QJ71MT91.
Refer to Section 8.6 for the Monitor/Test screen.
(2) System monitor of GX Developer
The module status of the QJ71MT91 can be confirmed from the system monitor.

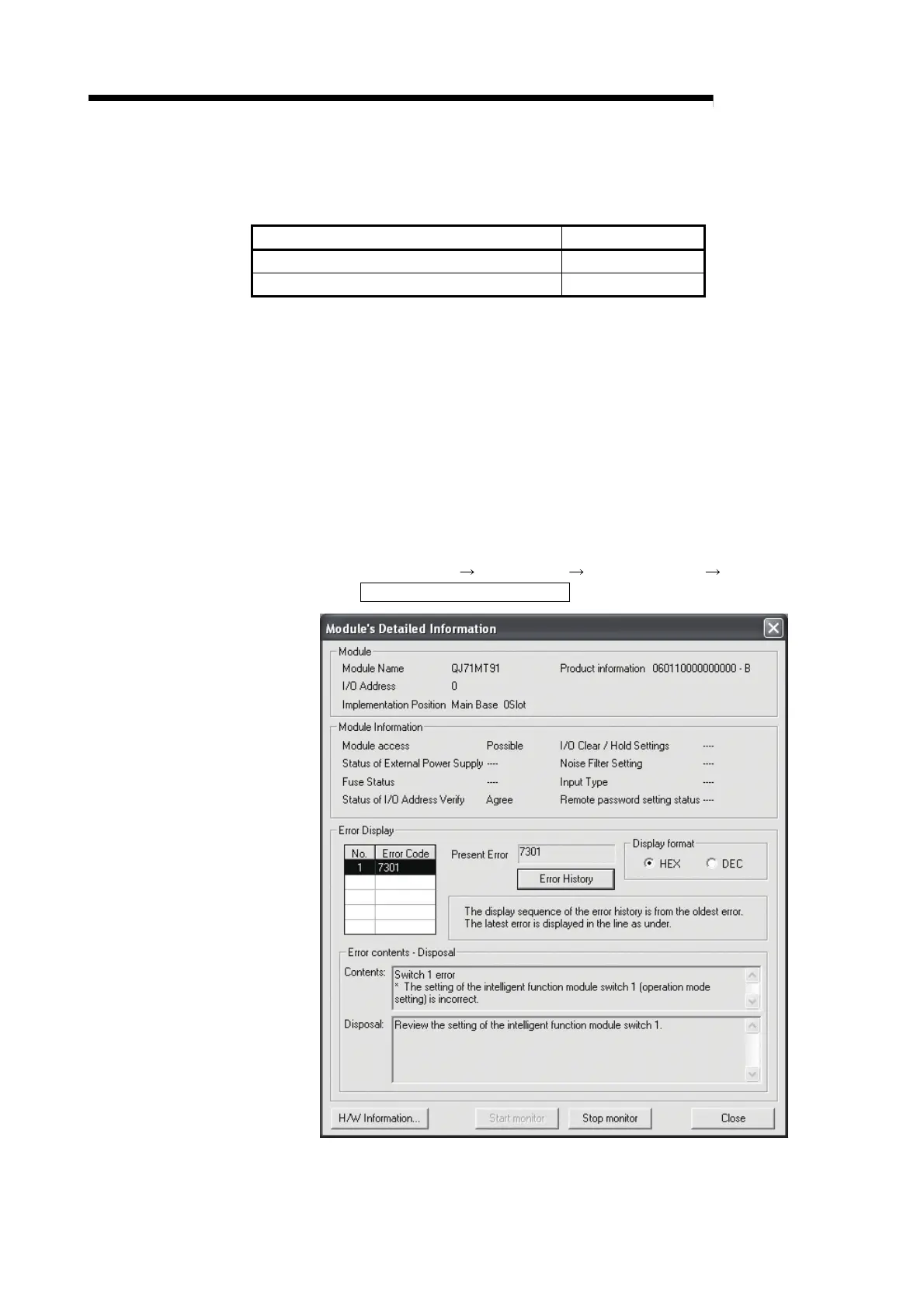

(a) When confirming the module status and error code on the Module's Detailed
Information screen of the diagnostic function
[Starting Procedure]
GX Developer
[Diagnostics] [System monitor]
Module's Detailed Information
To Next Page
