8 UTILITY PACKAGE (GX Configurator-MB)
8.6.5 Communication status
[Monitor Purpose]
Monitor the communication status by communication protocol.
[Operating procedure]
Monitor/Test screen Communication status

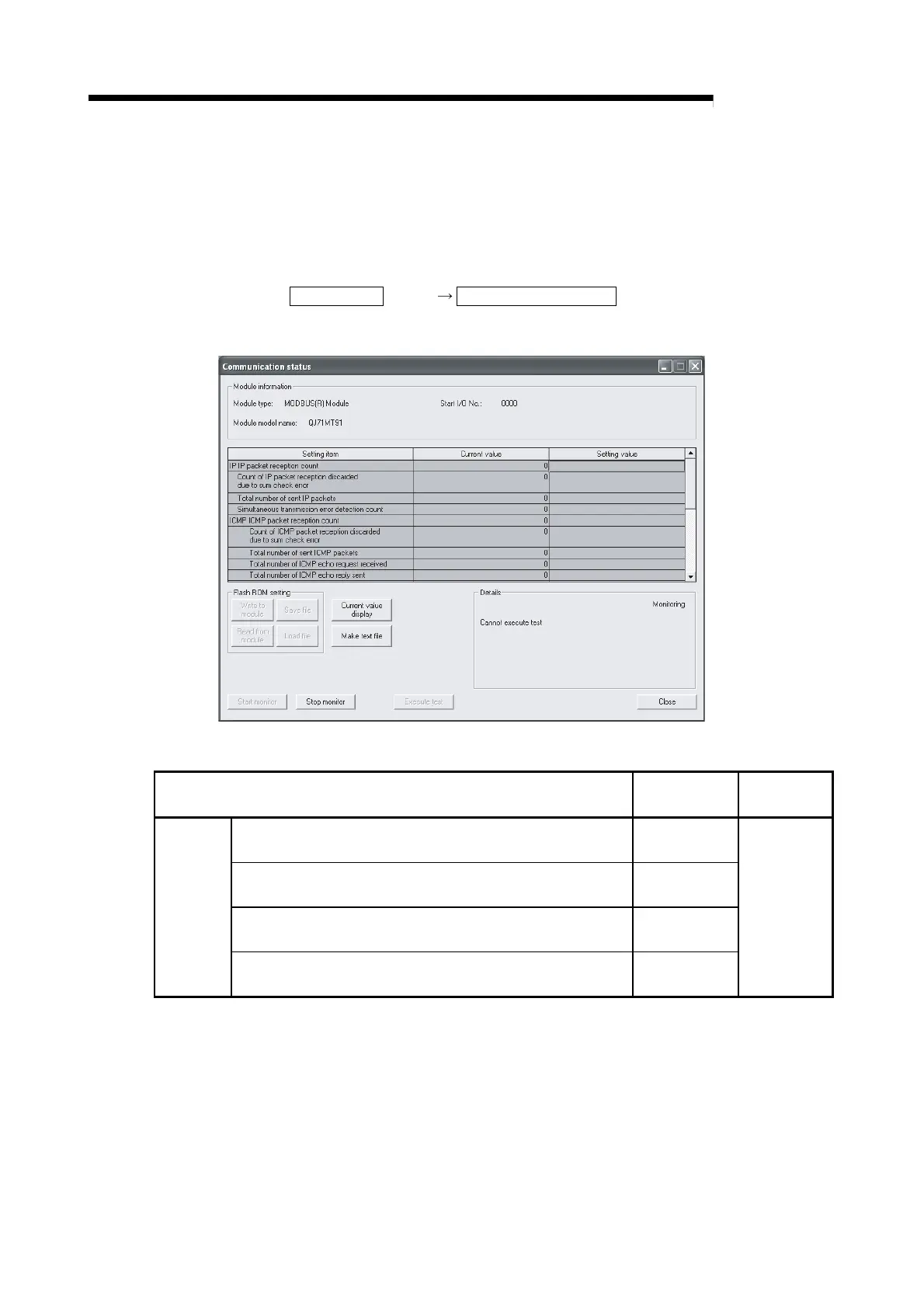

[Monitor Screen]
[Monitor Items]
Monitor Item
Buffer memory
address
Reference
section
IP packet reception count
0E10
H to 0E11H
(3600 to 3601)
Count of IP packet reception discarded due to sum check error
0E12
H to 0E13H
(3602 to 3603)
Total number of sent IP packets
0E14
H to 0E15H
(3604 to 3605)
IP
Simultaneous transmission error detection count
0E2A
H to 0E2BH
(3626 to 3627)
Section 11.3.1
