ASSEMBLY
20 Cylinder Block,
Crankshaft, Pistons and
Oil pan

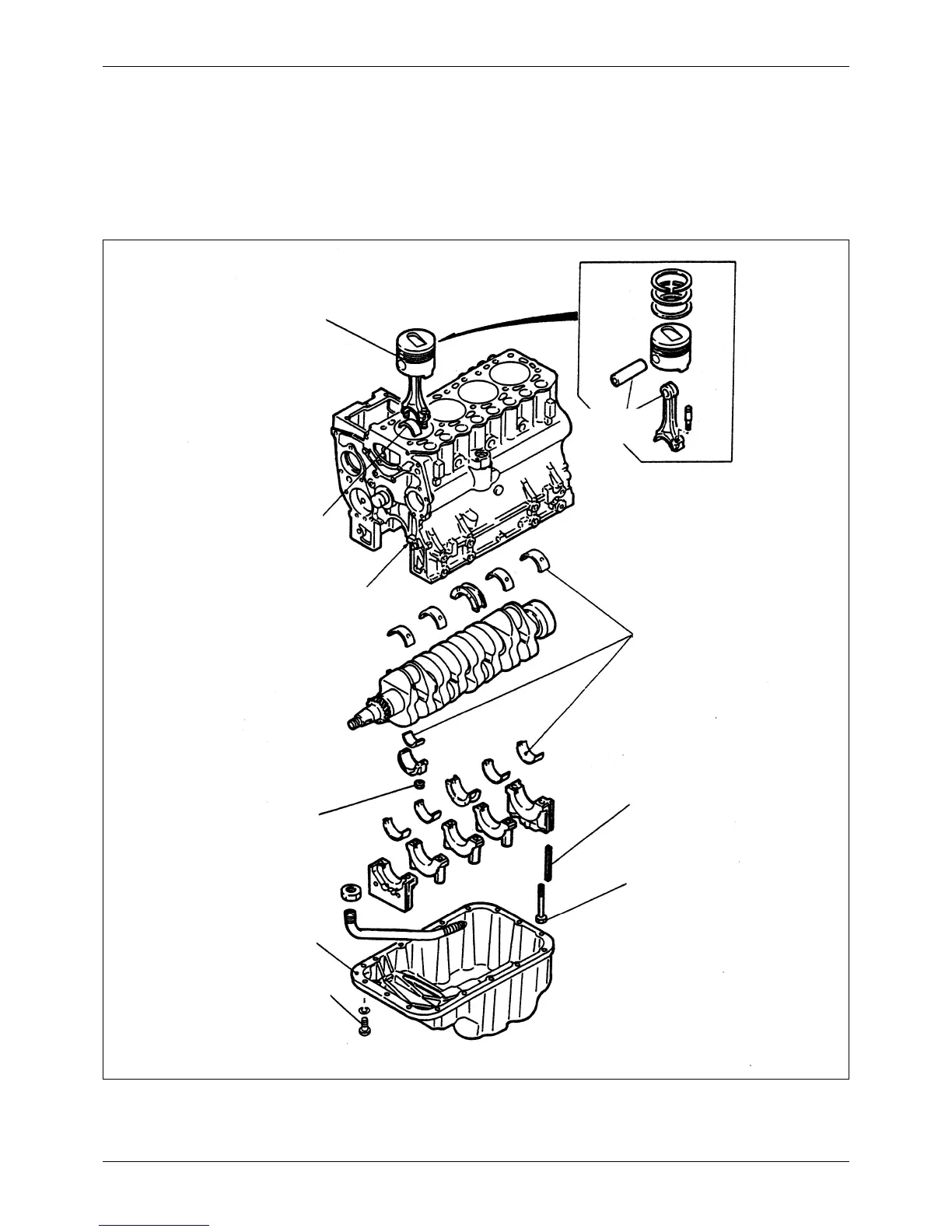

Figure 112 Inspection points
Lubricate the engine
surface with engine oil
Lubricate the bearing
(inside) surface with
engine oil
Coat the front and rear bearing cap
contact surfaces with Three Bond 1212
Tightening torque:
3.55 ± 0.25 kgf m (25.7 ± 1.8 lbf ft)
[34.8 ± 2.5 N m]
Coat the entire surface with
Three Bond 1207C
Tightening torque
Cast oil pan:
2.8 ± 0.3 kgf m (20.3 ± 2.2 lbf ft)
[27.5 ± 3 N m]
Plate oil pan:
1.15 ± 0.15 kgf m (8.3 ± 1.1 lbf ft)
[11.3 ± 1.5 N m]
Tightening torque:
5.25 ± 0.25 kgf m (38 ± 1.8 lbf ft)
[51.5 ± 2.5 N m]
Coat with Three Bond 1212
Lubricate the bearing
(inside) with engine oil
Force fit
