2. Installation and Setup
2.1.3 Setting up the main unit

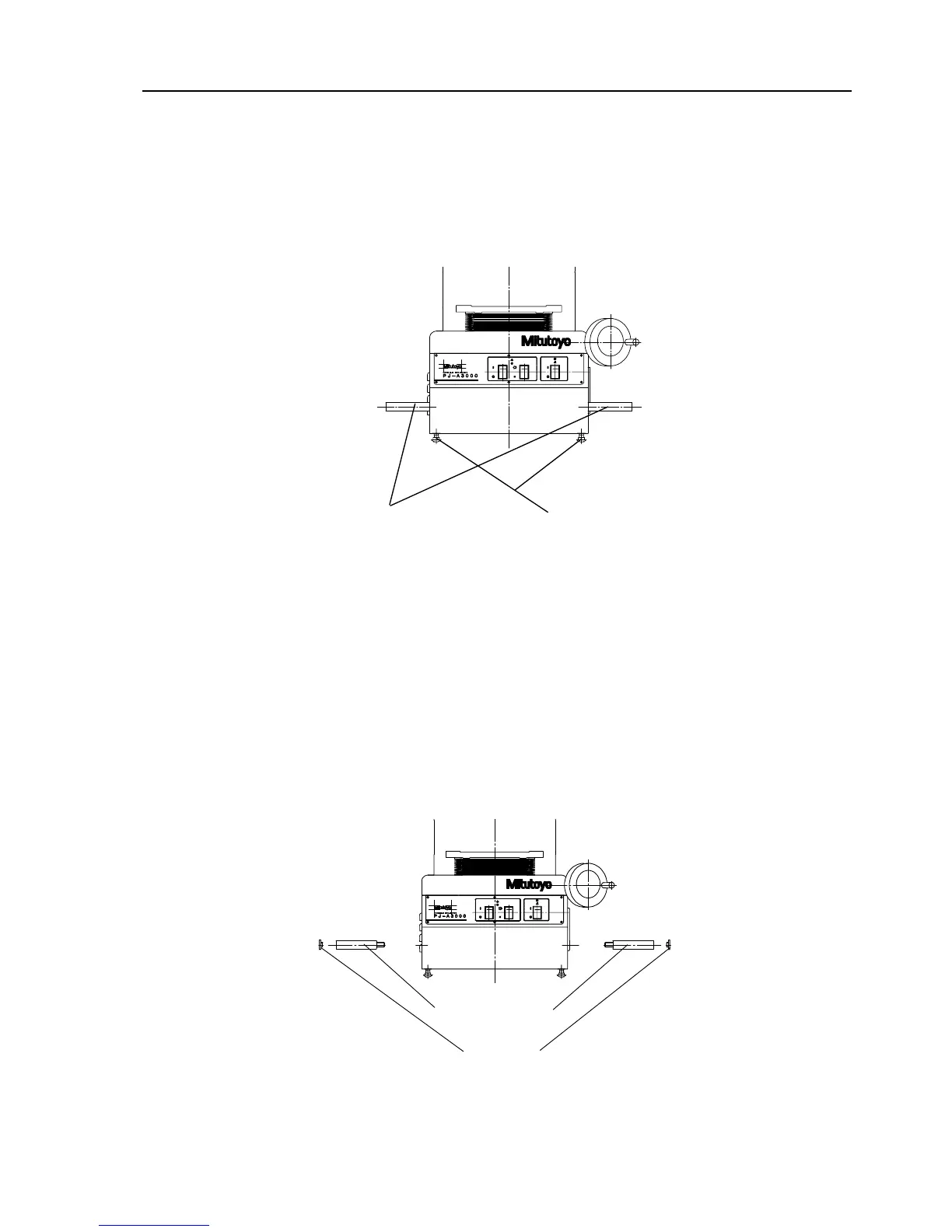

The projector must be set up on the optional stand or a rigid, stable mount. Use the leveling
bolts on the projector base to compensate for any inclination.
Carrying handles
Leveling bolts
2.1.4 Removing the carrying handles
After setup, remove the carrying handles and cover the screw holes with the supplied hole
caps.
Hole caps
Carrying handles
No.99MBA043A 2 - 3
