Mitutoyo Measuring Projector User Manual

2. Installation and Setup

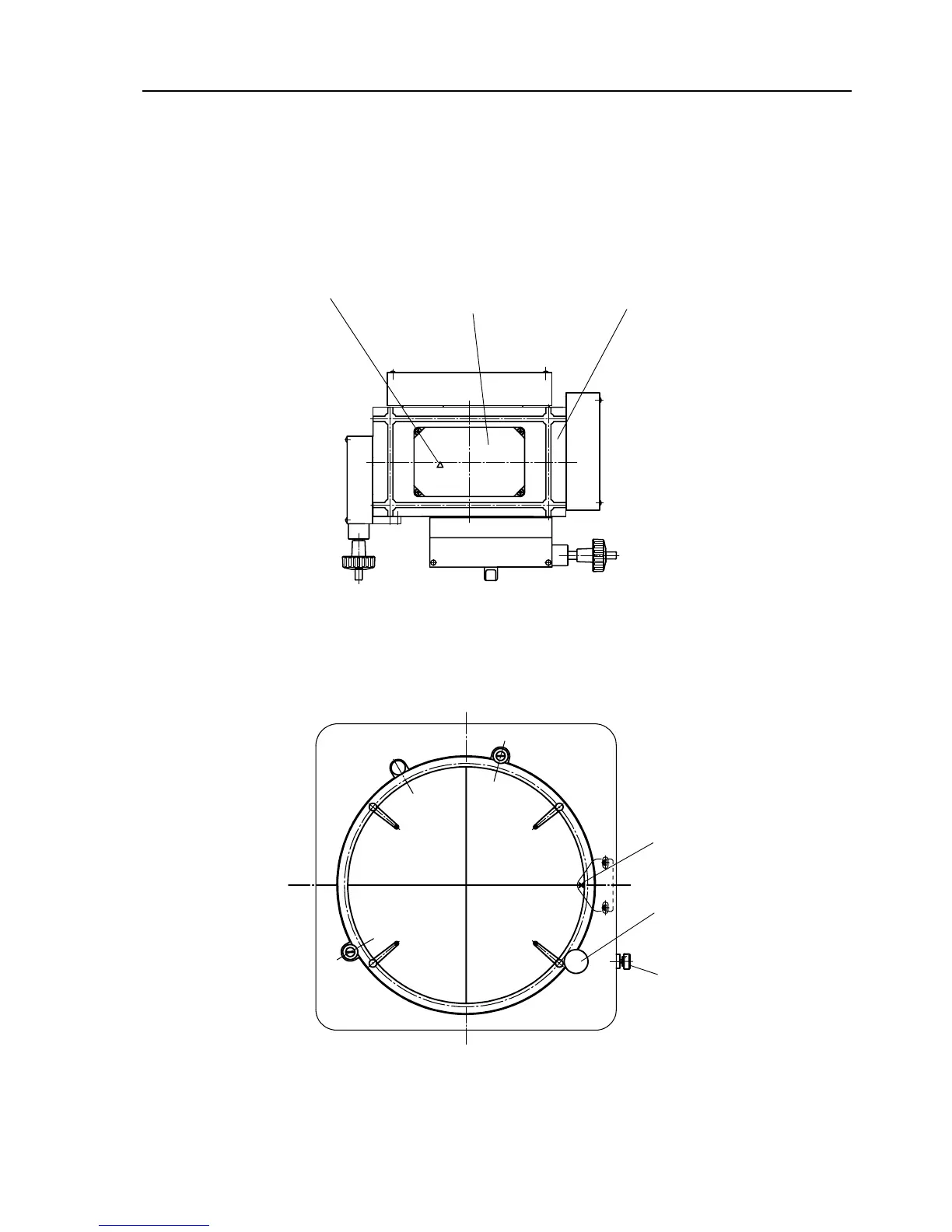

2.4.7 Checking the cross-travel stage travel direction
1. Mount the least magnified projection lens.
2.
Place a reference piece on the stage to project its image on the screen.
Stage glass
Reference piece
Cross-travel stage
3. Set the protractor screen reference line to "0".
“0” line
Screen rotation knob
Clamp knob
No.99MBA043A 2 - 21
