Mitutoyo Measuring Projector User Manual

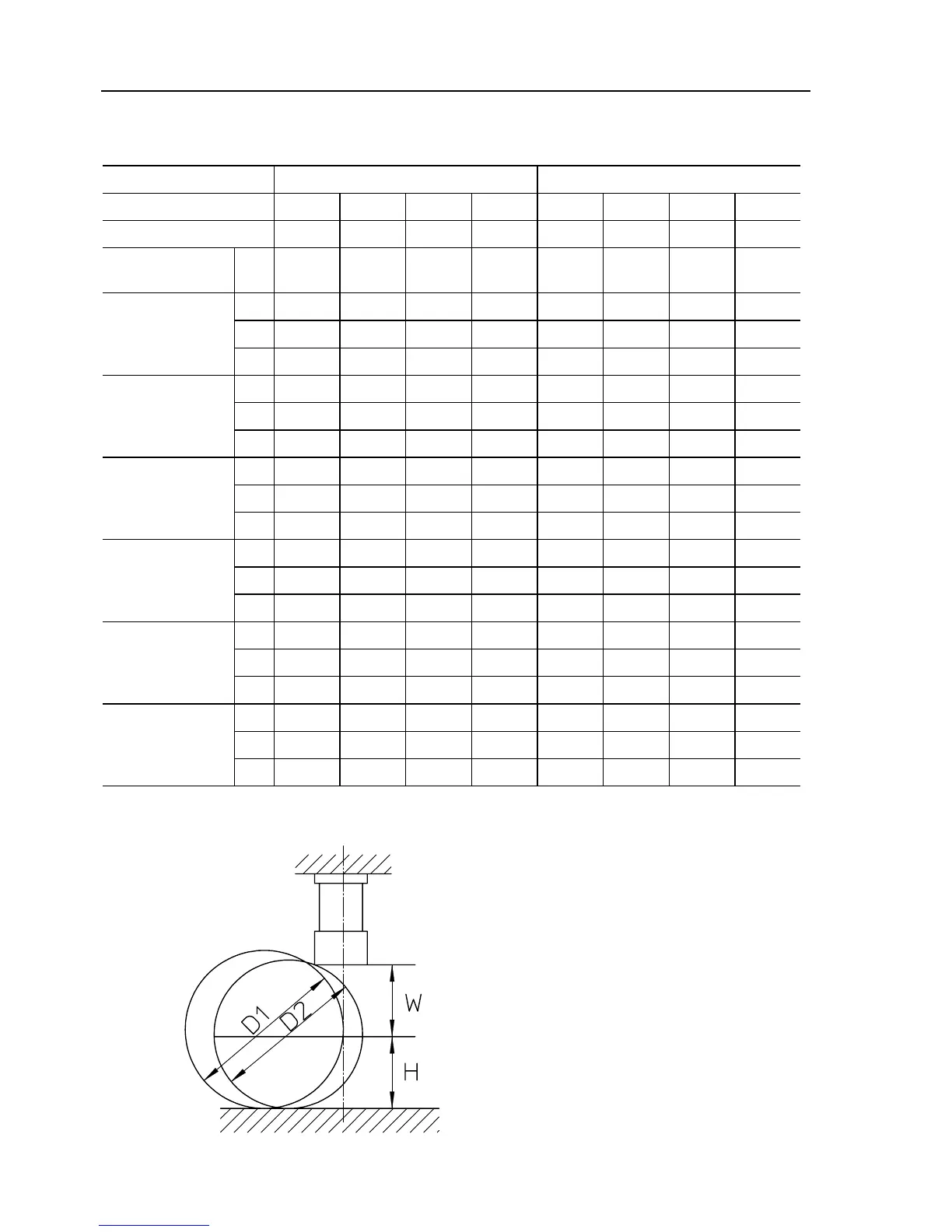

6.2 Performance Table for the PJ-A3000 Series Projectors
(Unit : mm)
Contour illumination Reflected illumination
Magnification 10X 20X 50X 100X 10X 20X 50X 100X
Field of view 31.5 15.7 6.3 3.1 31.5 15.7 6.3 3.1
Working
distance
W 66 32.5 12.6 5 20 2 12.6 5
H 123.5 123.5 123.5 123.5 123.5 123.5 123.5 123.5
D1 224 87 27 10 198 61 27 10
PJ-A3000
D2 154 69 25 10 120 23 25 10
H 123.5 123.5 123.5 123.5 123.5 123.5 123.5 123.5
D1 224 87 27 10 198 61 27 10
PJ-A3005R-50
D2 154 69 25 10 120 23 25 10
H 123.5 123.5 123.5 123.5 123.5 123.5 123.5 123.5
D1 224 87 27 10 198 61 27 10
PJ-A3005D-50
D2 154 69 25 10 120 24 25 10
H 91 91 91 91 91 91 91 91
D1 182 87 27 10 182 61 27 10
PJ-A3010F-100
D2 154 69 25 10 120 23 25 10
H 103.5 103.5 103.5 103.5 103.5 103.5 103.5 103.5
D1 207 87 27 10 198 61 27 10
PJ-A3005F-150
D2 154 69 25 10 120 23 25 10
H 92.5 92.5 92.5 92.5 92.5 92.5 92.5 92.5
D1 185 87 27 10 185 61 27 10
PJ-A3010F-200
D2 154 69 25 10 120 23 25 10
H : Maximum workpiece height
D1 : Maximum diameter of cylinder whose
edge is projected on the screen center
D2 : Maximum diameter of cylinder whose
edge is projected on the screen edge
6 - 14 No.99MBA043A
