6.1.3 Date output (RS232C)
For the projector equipped with the RS232C port, the measured date of the counter unit is
output via the serial output connector to a peripheral, such as two-dimensional data processing
unit Micropak 9/7 or QM-DATA or two-dimensional data processing program 2Dpak or QSPAK.
Communication Specifications
 Transmission method: Half duplex
 Transmission control: Asynchronous (Start-stop transmission)
 Baud rate:1200bps/2400bps/4800bps/9600bps
(
∗
1)
/19200bps
 Data bit:7 bits
(
∗
1)
/8 bits ASCII
 Parity bit: Even
(
∗
1)
/Odd/None
 Stop bit:1 bit
(
∗
1)
/2 bits
 Flow control: Enabled/Disabled
(
∗
1)
(∗1) Default setting at the shipment

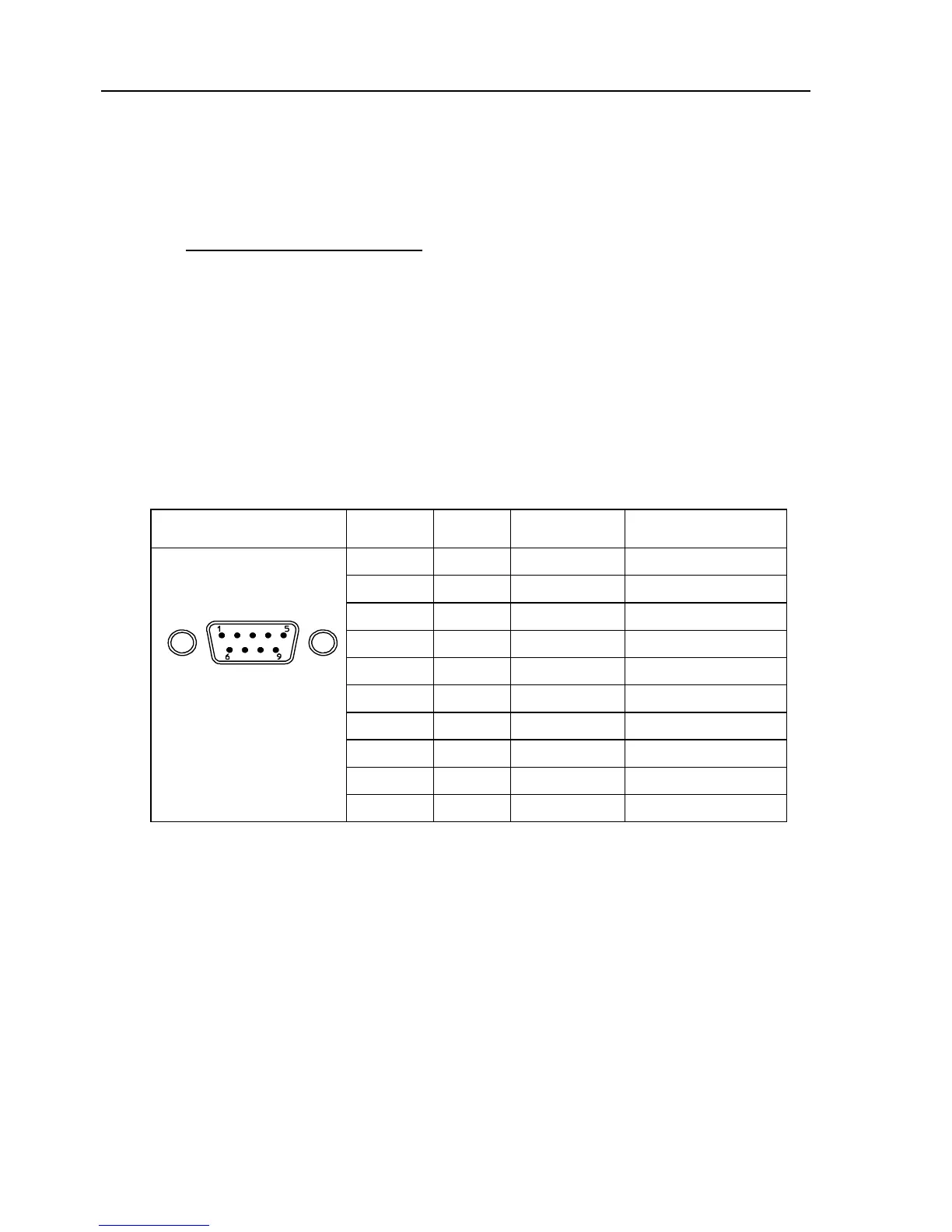

6.1.4 Connector specifications
Connector shape
Pin
number
Signal
I/O direction
∗2
Description
1
2 RD IN Accept the command
3 TD OUT Measured data
4 DTR OUT Counter is ready
5 SG - Signal ground
6 DSR IN Peripheral is ready
7 - -
8 - -
9
D‑ sub,9pins,
male,inchthread
FG - - Frame ground
(∗2) In/Out direction OUT: counter → Peripheral
The input/output circuits used are equivalent to MAX232 (MAXIM Corporation).
Control signal
A data request from a peripheral is accepted only if the DTR signal is “H” (space). “H” has a
+9V level.
The counter unit can transfer only if the DSR signal is “H” (space).
6 - 4 No.99MBA043A
