2.2 Assembly
2.2.1 Installing the cross-travel stage and Digimatic Head (for PJ-A3005D-50)

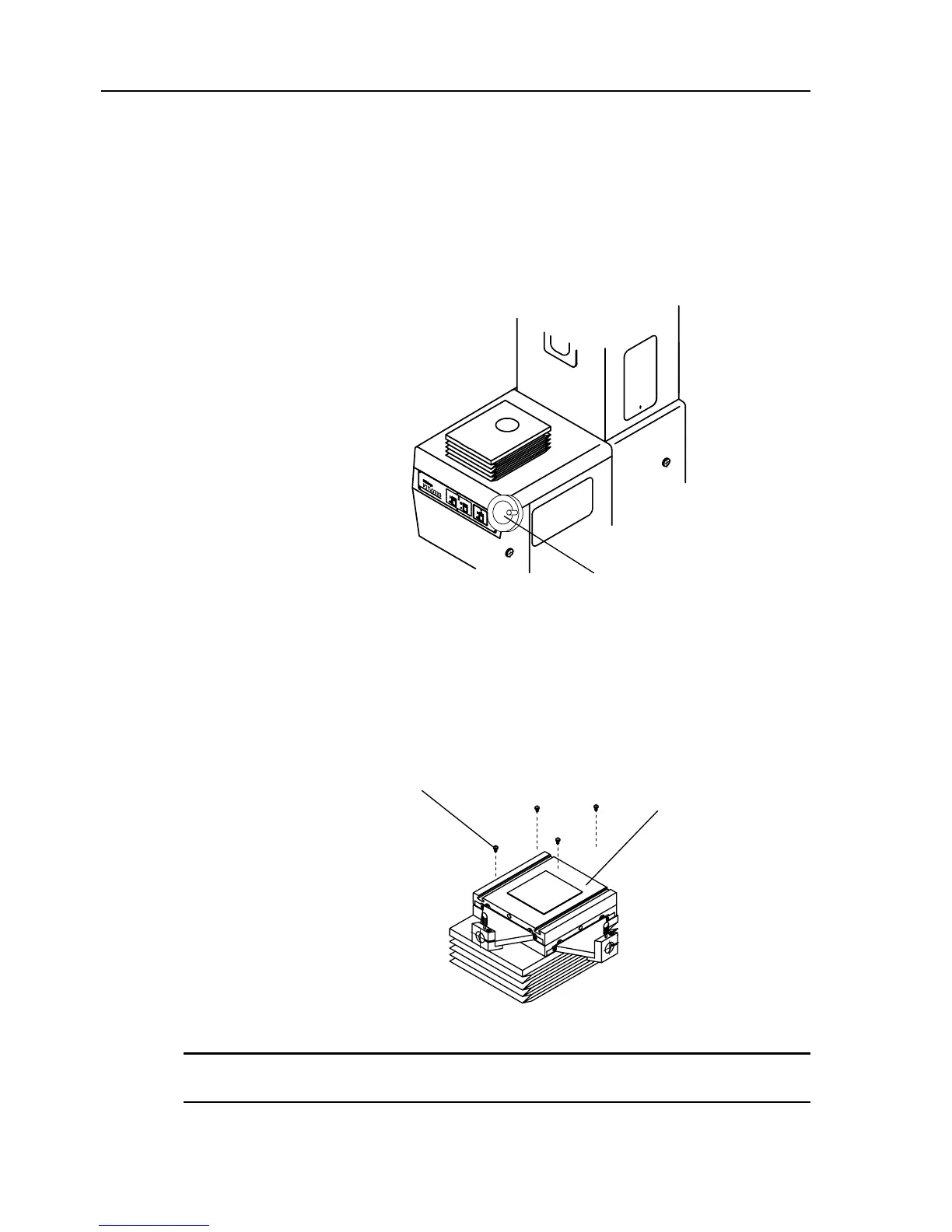

1. Turn the focusing wheel clockwise to lower the cross-travel stage mount down to the
end of its displacement.
Focusing wheel
2. Gently place the cross-travel stage on the mount. Slide the moving sections to the
left and right to check the screw hole positions, then use the four hex-socket head
screws (supplied in the standard accessory box) to temporarily fix the cross-travel
stage in place.
Cross-travel stage
Hex-socket head screw
The cross-travel stage should be secured when the adjustment of its travel direction is complete.
(Refer to 2.5.2 Aligning the cross-travel stage travel direction to the cross-hair lines.)
TIP
2 - 4 No.99MBA043A
