Mitutoyo Measuring Projector User Manual

2 - 24 No.99MBA043A
2.5 Adjustment
Read this section as required after reading “2.3 Initial Checks (Function Check)” and “2.4
Initial Checks (Performance Check)”.
2.5.1 Adjusting the magnification
Magnification adjustment requires experience. When the adjustment of a projection lens
is required, contact Mitutoyo for assistance.

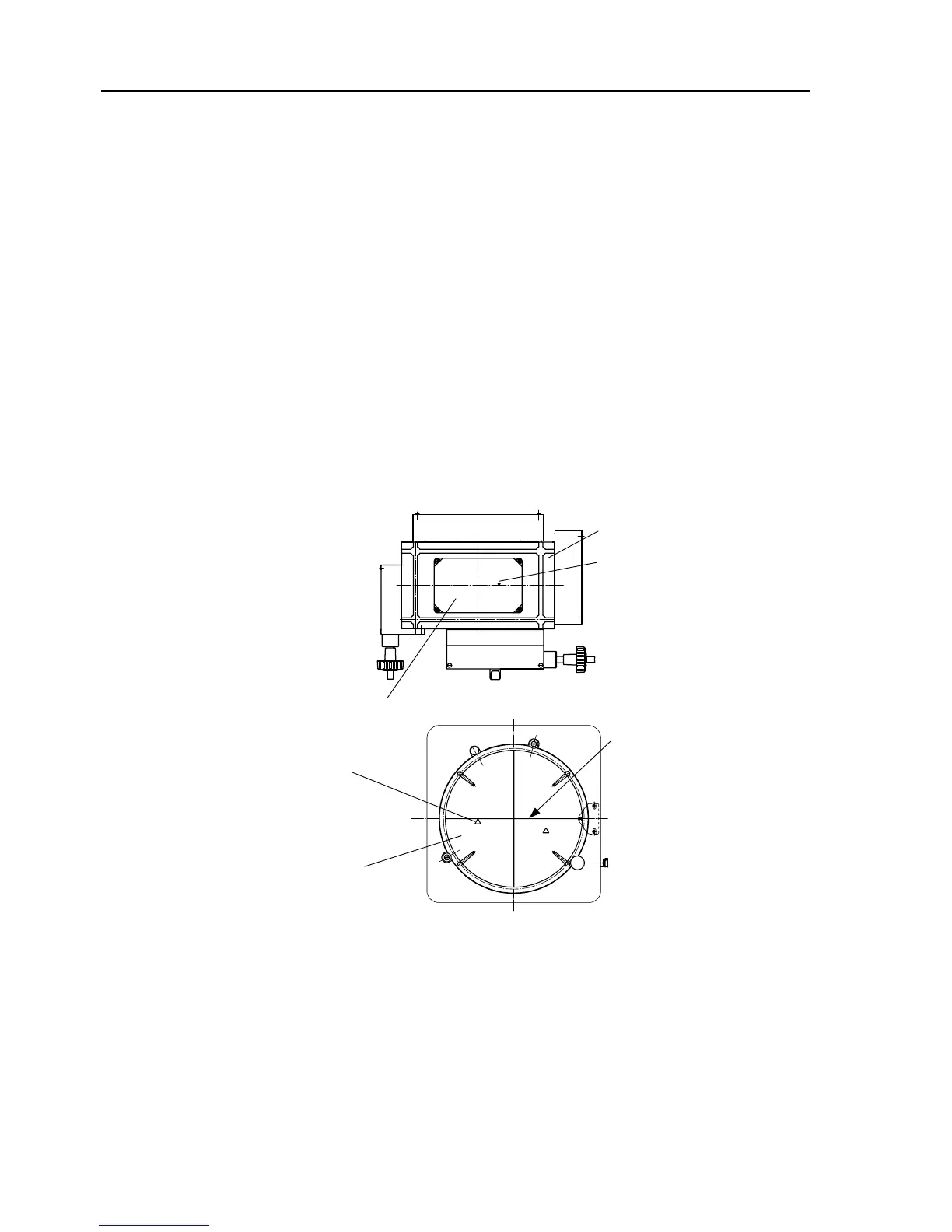

2.5.2 Aligning the cross-travel stage travel direction to the cross-hair lines
1. With the cross-travel stage mounting screws fastened but not tightened, carefully swivel
the stage so that the reference piece does not deviate from the horizontal cross-hair line
of the screen while feeding the stage in the X-axis direction.
Cross-travel sta
g
e
Reference
p
iece
Sta
g
e
g
lass
2. When the adjustment is complete, tighten the stage mounting screws. Re-check the
stage travel direction.
Projection screen
Reference
p
iece
Cross-hair line of
the screen
2.5.3 Centering the protractor screen
• This adjustment is performed by Mitutoyo service personal.
