5.3.3 Stage glass
1. While pushing the stage glass toward the projector rear, lift the front part of the glass to
remove it.
(For PJ-3005D, remove the glass fixing screw.
)

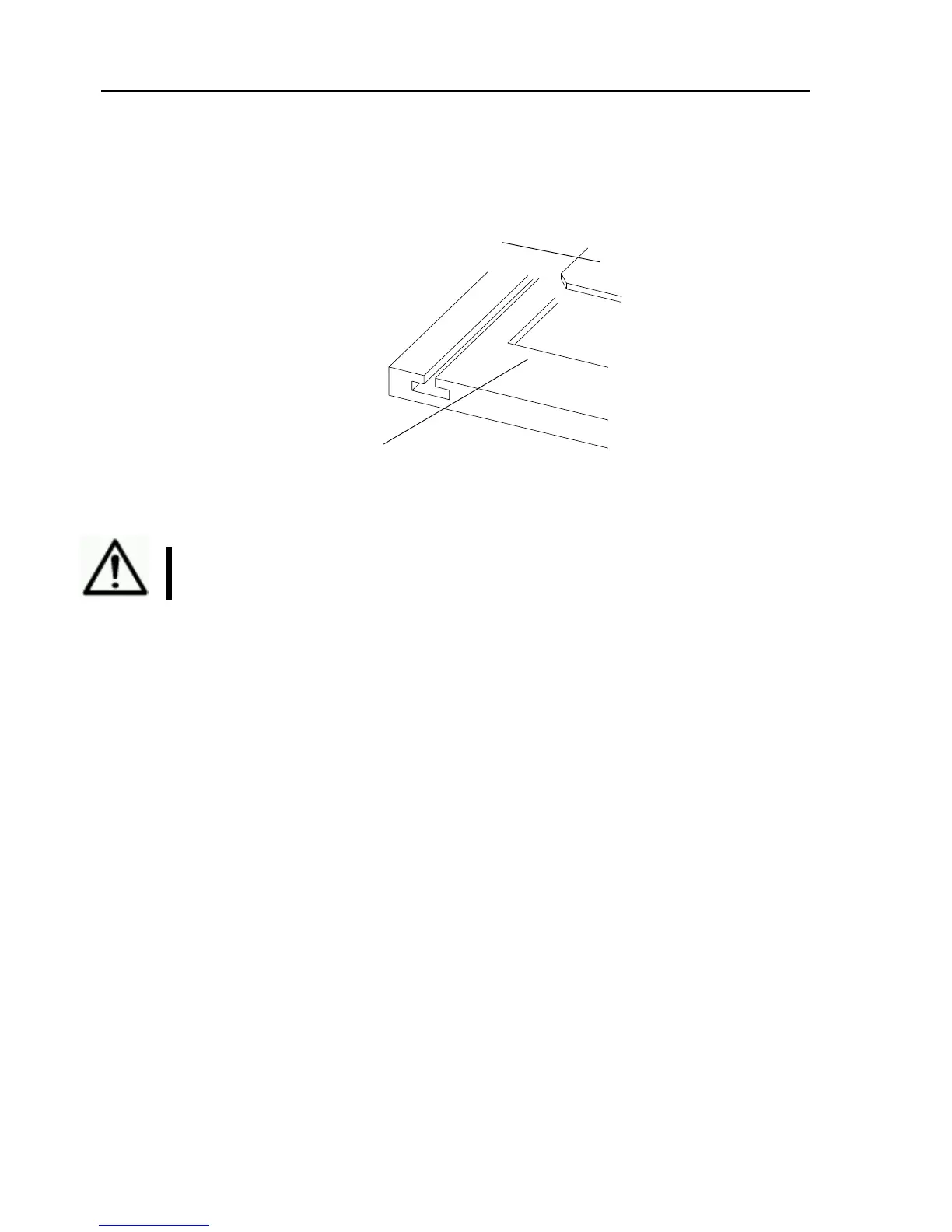

Stage glass
Cross-travel stage
2.
Mount the new stage glass
The X-Y stage glass is held in place by a leaf spring. Be careful not to lose this spring.
CUTION
5.4 Periodic Inspection
To ensure a long working life of the projector, perform periodic inspection, cleaning and
oiling of the projector components. Refer to 2.3 for a list of inspection items. Refer to 5.1
and 5.2 for cleaning and lubrication.
5 - 6 No.99MBA043A
