Motorola P100 Series Detailed Service Manual

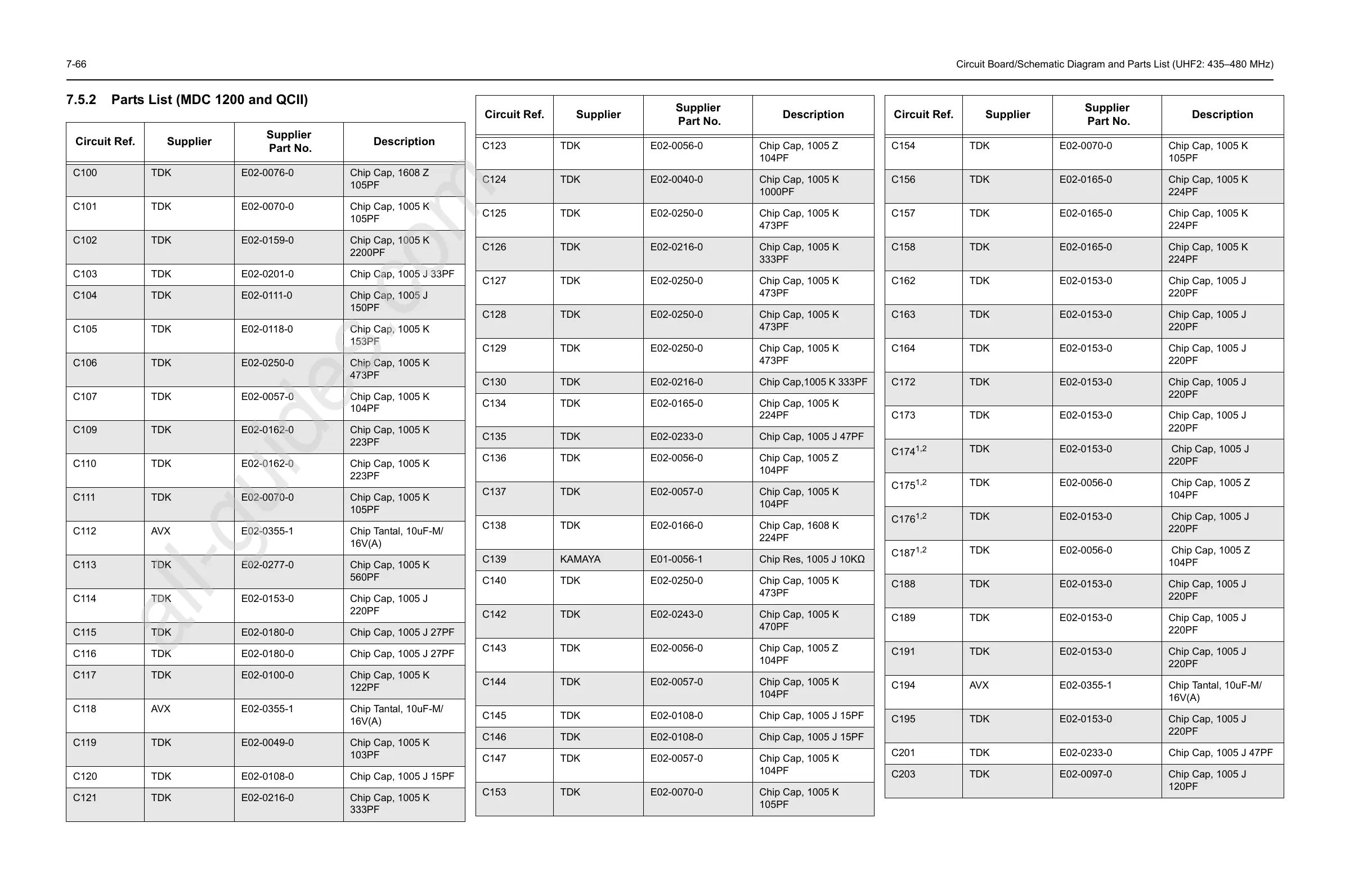

7-66 Circuit Board/Schematic Diagram and Parts List (UHF2: 435–480 MHz)
7.5.2 Parts List (MDC 1200 and QCII)
Circuit Ref. Supplier
Supplier
Part No.
Description
C100 TDK E02-0076-0 Chip Cap, 1608 Z
105PF
C101 TDK E02-0070-0 Chip Cap, 1005 K
105PF
C102 TDK E02-0159-0 Chip Cap, 1005 K
2200PF
C103 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C104 TDK E02-0111-0 Chip Cap, 1005 J
150PF
C105 TDK E02-0118-0 Chip Cap, 1005 K
153PF
C106 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C107 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C109 TDK E02-0162-0 Chip Cap, 1005 K
223PF
C110 TDK E02-0162-0 Chip Cap, 1005 K
223PF
C111 TDK E02-0070-0 Chip Cap, 1005 K
105PF
C112 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C113 TDK E02-0277-0 Chip Cap, 1005 K
560PF
C114 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C115 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C116 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C117 TDK E02-0100-0 Chip Cap, 1005 K
122PF
C118 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C119 TDK E02-0049-0 Chip Cap, 1005 K
103PF
C120 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C121 TDK E02-0216-0 Chip Cap, 1005 K
333PF
C123 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C124 TDK E02-0040-0 Chip Cap, 1005 K
1000PF
C125 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C126 TDK E02-0216-0 Chip Cap, 1005 K
333PF
C127 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C128 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C129 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C130 TDK E02-0216-0 Chip Cap,1005 K 333PF
C134 TDK E02-0165-0 Chip Cap, 1005 K
224PF
C135 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C136 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C137 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C138 TDK E02-0166-0 Chip Cap, 1608 K
224PF
C139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
C140 TDK E02-0250-0 Chip Cap, 1005 K
473PF
C142 TDK E02-0243-0 Chip Cap, 1005 K
470PF
C143 TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C144 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C145 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C146 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C147 TDK E02-0057-0 Chip Cap, 1005 K
104PF
C153 TDK E02-0070-0 Chip Cap, 1005 K
105PF
Circuit Ref. Supplier
Supplier
Part No.
Description
C154 TDK E02-0070-0 Chip Cap, 1005 K
105PF
C156 TDK E02-0165-0 Chip Cap, 1005 K
224PF
C157 TDK E02-0165-0 Chip Cap, 1005 K
224PF
C158 TDK E02-0165-0 Chip Cap, 1005 K
224PF
C162 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C163 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C164 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C172 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C173 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C174
1,2
TDK E02-0153-0 Chip Cap, 1005 J
220PF
C175
1,2
TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C176
1,2
TDK E02-0153-0 Chip Cap, 1005 J
220PF
C187
1,2
TDK E02-0056-0 Chip Cap, 1005 Z
104PF
C188 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C189 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C191 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C194 AVX E02-0355-1 Chip Tantal, 10uF-M/
16V(A)
C195 TDK E02-0153-0 Chip Cap, 1005 J
220PF
C201 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C203 TDK E02-0097-0 Chip Cap, 1005 J
120PF
Circuit Ref. Supplier
Supplier
Part No.
Description
