Motorola P100 Series Detailed Service Manual

Circuit Board/Schematic Diagram and Parts List UHF1 - MDC/QCII R&TTE (403–447 MHz) 13-65

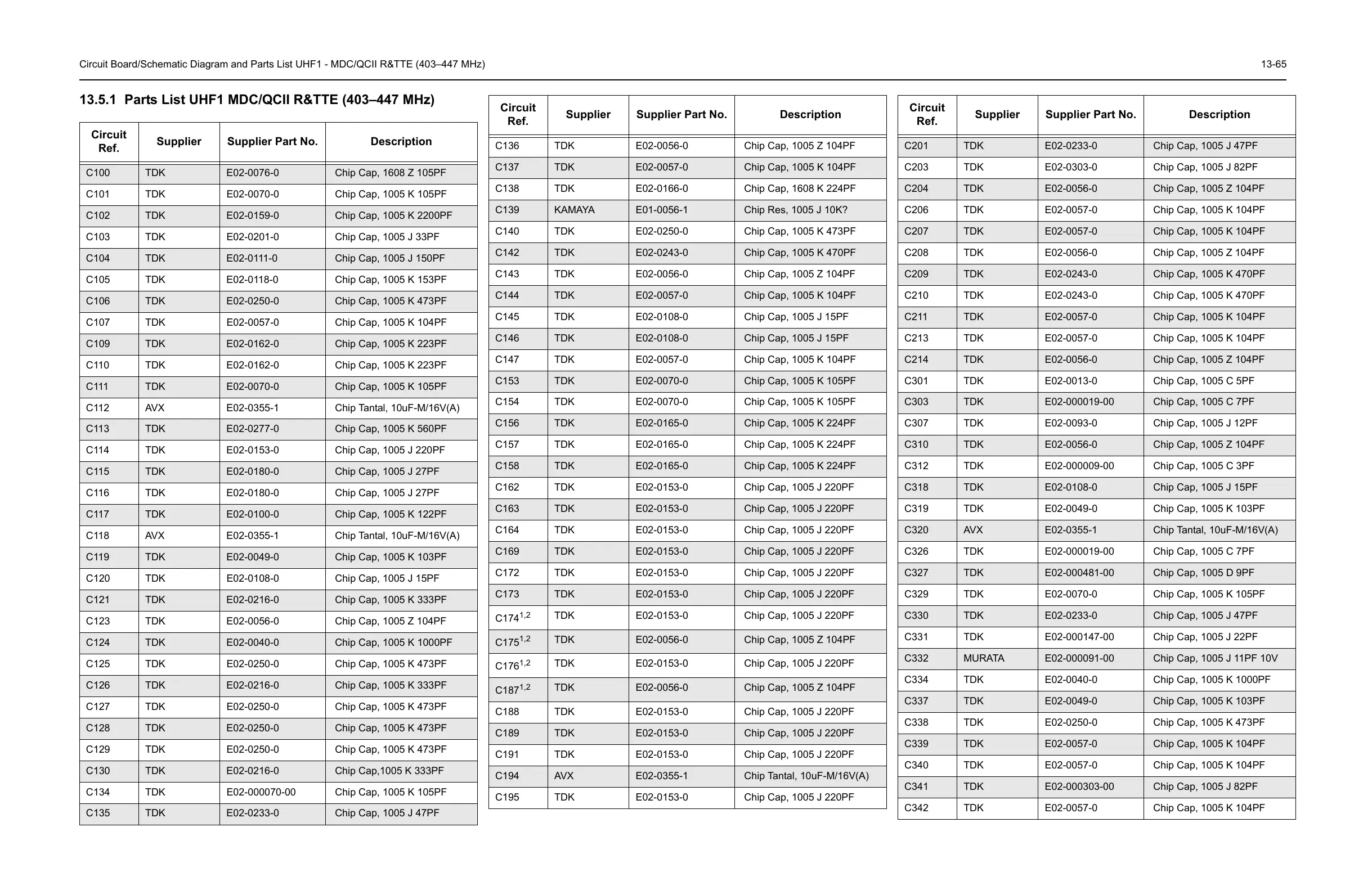

13.5.1 Parts List UHF1 MDC/QCII R&TTE (403–447 MHz)
Circuit
Ref.
Supplier Supplier Part No. Description
C100 TDK E02-0076-0 Chip Cap, 1608 Z 105PF
C101 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C102 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C103 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C104 TDK E02-0111-0 Chip Cap, 1005 J 150PF
C105 TDK E02-0118-0 Chip Cap, 1005 K 153PF
C106 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C107 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C109 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C110 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C111 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C112 AVX E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C113 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C114 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C115 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C116 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C117 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C118 AVX E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C119 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C120 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C121 TDK E02-0216-0 Chip Cap, 1005 K 333PF
C123 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C124 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C125 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C126 TDK E02-0216-0 Chip Cap, 1005 K 333PF
C127 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C128 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C129 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C130 TDK E02-0216-0 Chip Cap,1005 K 333PF
C134 TDK E02-000070-00 Chip Cap, 1005 K 105PF
C135 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C136 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C137 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C138 TDK E02-0166-0 Chip Cap, 1608 K 224PF
C139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K?
C140 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C142 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C143 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C144 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C145 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C146 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C147 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C153 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C154 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C156 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C157 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C158 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C162 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C163 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C164 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C169 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C172 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C173 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C174
1,2
TDK E02-0153-0 Chip Cap, 1005 J 220PF
C175
1,2
TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C176
1,2
TDK E02-0153-0 Chip Cap, 1005 J 220PF
C187
1,2
TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C188 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C189 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C191 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C194 AVX E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C195 TDK E02-0153-0 Chip Cap, 1005 J 220PF
Circuit
Ref.
Supplier Supplier Part No. Description
C201 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C203 TDK E02-0303-0 Chip Cap, 1005 J 82PF
C204 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C206 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C207 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C208 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C209 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C210 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C211 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C213 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C214 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C301 TDK E02-0013-0 Chip Cap, 1005 C 5PF
C303 TDK E02-000019-00 Chip Cap, 1005 C 7PF
C307 TDK E02-0093-0 Chip Cap, 1005 J 12PF
C310 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C312 TDK E02-000009-00 Chip Cap, 1005 C 3PF
C318 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C319 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C320 AVX E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C326 TDK E02-000019-00 Chip Cap, 1005 C 7PF
C327 TDK E02-000481-00 Chip Cap, 1005 D 9PF
C329 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C330 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C331 TDK E02-000147-00 Chip Cap, 1005 J 22PF
C332 MURATA E02-000091-00 Chip Cap, 1005 J 11PF 10V
C334 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C337 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C338 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C339 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C340 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C341 TDK E02-000303-00 Chip Cap, 1005 J 82PF
C342 TDK E02-0057-0 Chip Cap, 1005 K 104PF
Circuit
Ref.
Supplier Supplier Part No. Description
