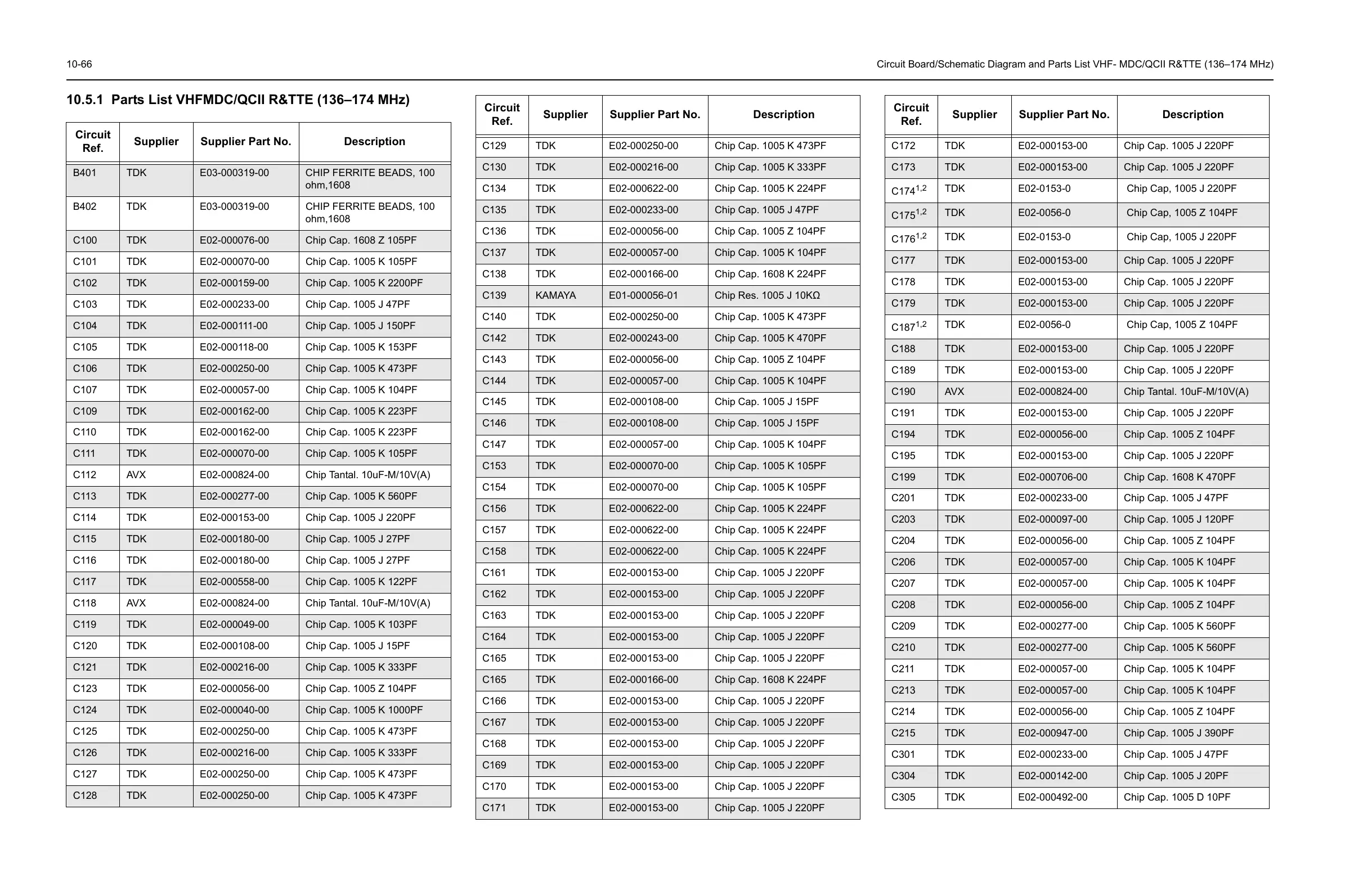

Motorola P100 Series Detailed Service Manual

10-66 Circuit Board/Schematic Diagram and Parts List VHF- MDC/QCII R&TTE (136–174 MHz)
10.5.1 Parts List VHFMDC/QCII R&TTE (136–174 MHz)
Circuit
Ref.
Supplier Supplier Part No. Description
B401 TDK E03-000319-00 CHIP FERRITE BEADS, 100
ohm,1608
B402 TDK E03-000319-00 CHIP FERRITE BEADS, 100
ohm,1608
C100 TDK E02-000076-00 Chip Cap. 1608 Z 105PF
C101 TDK E02-000070-00 Chip Cap. 1005 K 105PF
C102 TDK E02-000159-00 Chip Cap. 1005 K 2200PF
C103 TDK E02-000233-00 Chip Cap. 1005 J 47PF
C104 TDK E02-000111-00 Chip Cap. 1005 J 150PF
C105 TDK E02-000118-00 Chip Cap. 1005 K 153PF
C106 TDK E02-000250-00 Chip Cap. 1005 K 473PF
C107 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C109 TDK E02-000162-00 Chip Cap. 1005 K 223PF
C110 TDK E02-000162-00 Chip Cap. 1005 K 223PF
C111 TDK E02-000070-00 Chip Cap. 1005 K 105PF
C112 AVX E02-000824-00 Chip Tantal. 10uF-M/10V(A)
C113 TDK E02-000277-00 Chip Cap. 1005 K 560PF
C114 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C115 TDK E02-000180-00 Chip Cap. 1005 J 27PF
C116 TDK E02-000180-00 Chip Cap. 1005 J 27PF
C117 TDK E02-000558-00 Chip Cap. 1005 K 122PF
C118 AVX E02-000824-00 Chip Tantal. 10uF-M/10V(A)
C119 TDK E02-000049-00 Chip Cap. 1005 K 103PF
C120 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C121 TDK E02-000216-00 Chip Cap. 1005 K 333PF
C123 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C124 TDK E02-000040-00 Chip Cap. 1005 K 1000PF
C125 TDK E02-000250-00 Chip Cap. 1005 K 473PF
C126 TDK E02-000216-00 Chip Cap. 1005 K 333PF
C127 TDK E02-000250-00 Chip Cap. 1005 K 473PF
C128 TDK E02-000250-00 Chip Cap. 1005 K 473PF
C129 TDK E02-000250-00 Chip Cap. 1005 K 473PF
C130 TDK E02-000216-00 Chip Cap. 1005 K 333PF
C134 TDK E02-000622-00 Chip Cap. 1005 K 224PF
C135 TDK E02-000233-00 Chip Cap. 1005 J 47PF
C136 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C137 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C138 TDK E02-000166-00 Chip Cap. 1608 K 224PF
C139 KAMAYA E01-000056-01 Chip Res. 1005 J 10K
C140 TDK E02-000250-00 Chip Cap. 1005 K 473PF
C142 TDK E02-000243-00 Chip Cap. 1005 K 470PF
C143 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C144 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C145 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C146 TDK E02-000108-00 Chip Cap. 1005 J 15PF
C147 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C153 TDK E02-000070-00 Chip Cap. 1005 K 105PF
C154 TDK E02-000070-00 Chip Cap. 1005 K 105PF
C156 TDK E02-000622-00 Chip Cap. 1005 K 224PF
C157 TDK E02-000622-00 Chip Cap. 1005 K 224PF
C158 TDK E02-000622-00 Chip Cap. 1005 K 224PF
C161 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C162 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C163 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C164 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C165 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C165 TDK E02-000166-00 Chip Cap. 1608 K 224PF
C166 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C167 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C168 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C169 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C170 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C171 TDK E02-000153-00 Chip Cap. 1005 J 220PF
Circuit
Ref.
Supplier Supplier Part No. Description
C172 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C173 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C174
1,2
TDK E02-0153-0 Chip Cap, 1005 J 220PF
C175
1,2
TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C176
1,2
TDK E02-0153-0 Chip Cap, 1005 J 220PF
C177 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C178 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C179 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C187
1,2
TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C188 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C189 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C190 AVX E02-000824-00 Chip Tantal. 10uF-M/10V(A)
C191 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C194 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C195 TDK E02-000153-00 Chip Cap. 1005 J 220PF
C199 TDK E02-000706-00 Chip Cap. 1608 K 470PF
C201 TDK E02-000233-00 Chip Cap. 1005 J 47PF
C203 TDK E02-000097-00 Chip Cap. 1005 J 120PF
C204 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C206 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C207 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C208 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C209 TDK E02-000277-00 Chip Cap. 1005 K 560PF
C210 TDK E02-000277-00 Chip Cap. 1005 K 560PF
C211 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C213 TDK E02-000057-00 Chip Cap. 1005 K 104PF
C214 TDK E02-000056-00 Chip Cap. 1005 Z 104PF
C215 TDK E02-000947-00 Chip Cap. 1005 J 390PF
C301 TDK E02-000233-00 Chip Cap. 1005 J 47PF
C304 TDK E02-000142-00 Chip Cap. 1005 J 20PF
C305 TDK E02-000492-00 Chip Cap. 1005 D 10PF
Circuit
Ref.
Supplier Supplier Part No. Description
