Motorola P100 Series Detailed Service Manual

Circuit Board/Schematic Diagram and Parts List (UHF1: 403–447 MHz) 13-15

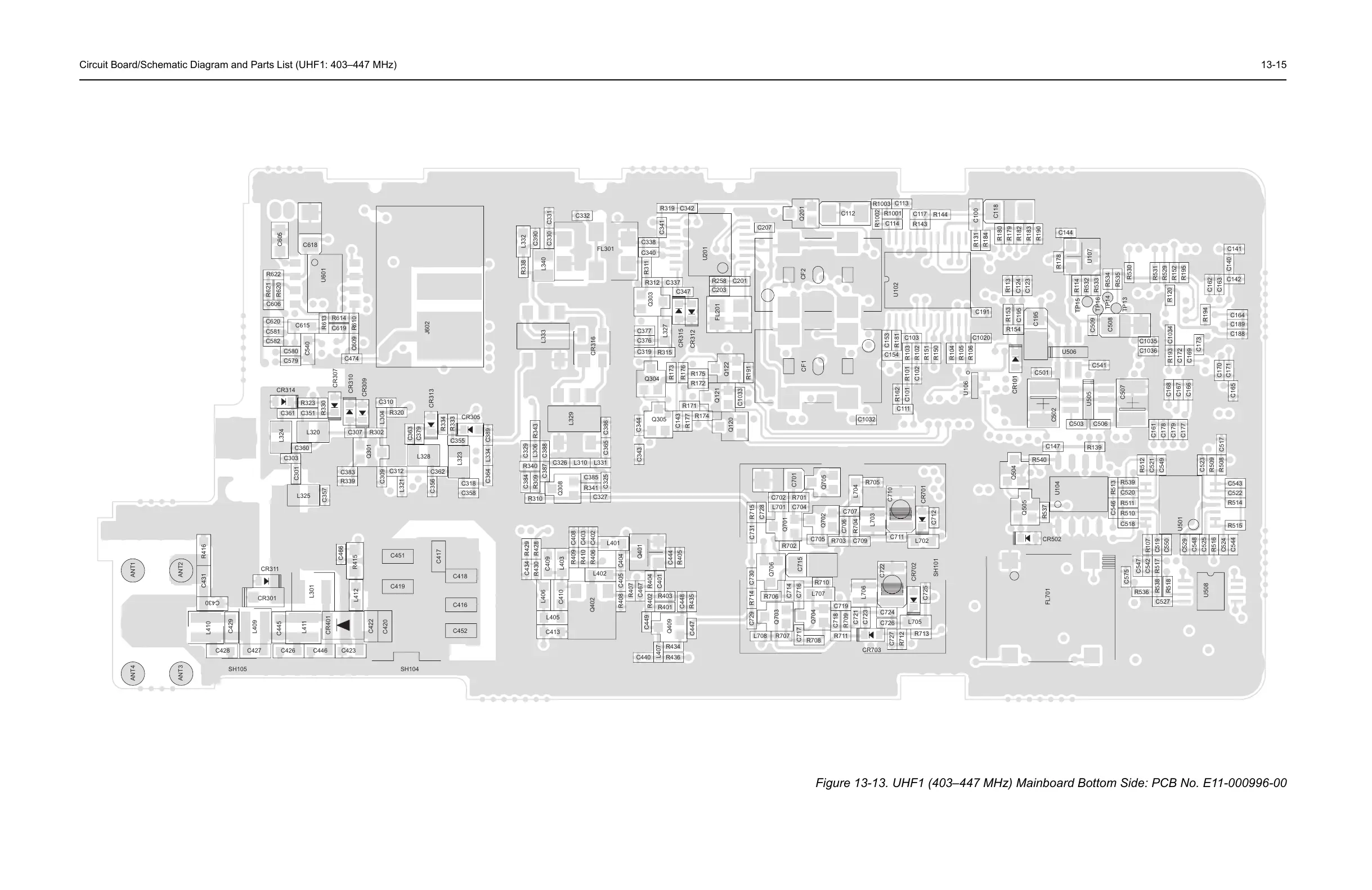

Figure 13-13. UHF1 (403–447 MHz) Mainboard Bottom Side: PCB No. E11-000996-00
ANT4
ANT1 ANT2
C431
L410
C429 L409
C445
L411
L301
CR401
C466
R415
L412
C422
C420
C417
C356
C363
L321
C309
C383
C307
R302
R339
Q301
R330
L304
C301
L324
C357
CR309
CR310
CR307
C540
R613
R621 R620
C605
R610
C609
U601
C310
R320
R323
C351
C360
C361
C579
C580
C620
C606
R622
C618
C581
C582
C615
R614
C619
C474
CR314
L325
C303
L320
C379
L323
L328
C364 L334 C389
CR305
CR313
J602
R334 R333
C355
SH104
C419
C418
C434
C409
L403
L406
C410
Q402
L405
L402
L401
C413
R430
R429 R428
R409 R410 R406
C408
Q308
C365
R173
R176
R175
R315
C319
C376
C377
R172
R171
C343
Q305
Q304
C344
C143 R177
Q120
Q121
Q122
R191
FL201
Q201
CF2
CF1
C1032
C154
C103
C153
R181
R103
R101
R162 C101
C111
C102
R102
R151 R150 R104
R105
R106
CR101
R153
R113
R131
U102
R144
R143
C117
C113
R1003
C112
R1001
C114
R1002
C100
C118
R184
R180 R179 R182 R183 R190
R178
U107
R114 R532 R533
R534 R535
R530
TP13
TP14
TP16
TP15
C509
C508
C502
U505
C541
C503
C506
R139
C507
R512
R513C546
U104
R537
Q505
Q504
R540
C147
FL701
CR502
C521 C549
C161 C178 C179 C177
R539
C520
R511
R510
C518
C168
R193 C172 C169
C173
C170 C171
C165
C517
C543
C522
R514
R515
R508
C544
C524
R516
C525 C548
C529
U501
C550 C519 R107
R517
R538 R518
U508
C542 C547
C575
R536
C527
R509 C523
R194
R120
C162 C163
C140
C142
C141
C164
C189
C188
R531 R529
R152 R195
C1034
C1036
C1035
C167 C166
U506
C501
C144
C124 C123
C195
C195
U106
C1020
C191
R154
CR312
CR315
Q303
R311
R319
C342
C341
U201
R258
C203
C201
C207
L327
CR316
L333
R338
L340
L332
C390
C330
C331
C332
FL301
C347
C337
C338
C340
R312
C1033
R174
C325
C327
R341
C385
C386
C384
C329
L306
C388C387
R343
L329
C326L310L331
R309
R310
R340
C403 C402
C404
Q401
C405
R408
R407
R404R402
C401
C448 R435
C729
Q703
Q704
C717
R714 C730
C714 C716
C718 R709
C721 C723
C727
C725
L702
C711
C709R703
C705
CR702
C712
CR701
C710
L703
Q702
Q701
C728 R715C731
C706
C701
R704
Q705
L704
R705
C707
C704L701
R701
R702
C702
SH101
C722
R712
C724
C726
CR703
R713
L705
C715
R710
L707
C719
R711
L706
Q706
R706
L708 R707
R708
R403
R401
C444 R405
C467
C449
Q409
C447
L407
R434
R436
C440
C358
C318
C362
C312
C416
C452
C451
SH105
C428 C427 C426 C446 C423
CR301
CR311
C430
R416
ANT3
