Motorola P100 Series Detailed Service Manual

Circuit Board/Schematic Diagram and Parts List (VHF: 136–174 MHz) 10-17

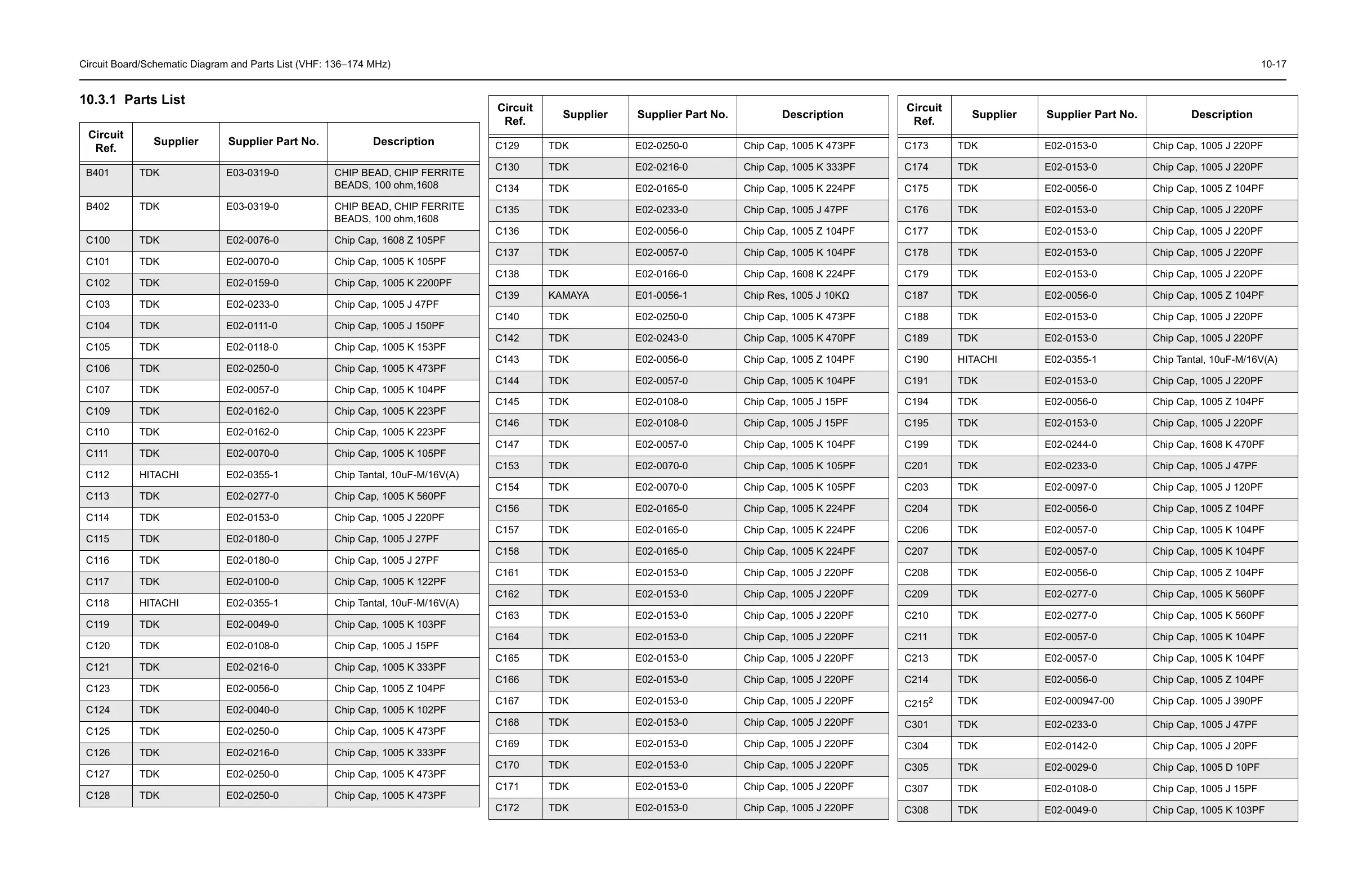

10.3.1 Parts List
Circuit
Ref.
Supplier Supplier Part No. Description
B401 TDK E03-0319-0 CHIP BEAD, CHIP FERRITE
BEADS, 100 ohm,1608
B402 TDK E03-0319-0 CHIP BEAD, CHIP FERRITE
BEADS, 100 ohm,1608
C100 TDK E02-0076-0 Chip Cap, 1608 Z 105PF
C101 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C102 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C103 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C104 TDK E02-0111-0 Chip Cap, 1005 J 150PF
C105 TDK E02-0118-0 Chip Cap, 1005 K 153PF
C106 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C107 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C109 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C110 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C111 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C112 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C113 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C114 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C115 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C116 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C117 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C118 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C119 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C120 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C121 TDK E02-0216-0 Chip Cap, 1005 K 333PF
C123 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C124 TDK E02-0040-0 Chip Cap, 1005 K 102PF
C125 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C126 TDK E02-0216-0 Chip Cap, 1005 K 333PF
C127 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C128 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C129 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C130 TDK E02-0216-0 Chip Cap, 1005 K 333PF
C134 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C135 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C136 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C137 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C138 TDK E02-0166-0 Chip Cap, 1608 K 224PF
C139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
C140 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C142 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C143 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C144 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C145 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C146 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C147 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C153 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C154 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C156 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C157 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C158 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C161 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C162 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C163 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C164 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C165 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C166 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C167 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C168 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C169 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C170 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C171 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C172 TDK E02-0153-0 Chip Cap, 1005 J 220PF
Circuit
Ref.
Supplier Supplier Part No. Description
C173 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C174 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C175 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C176 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C177 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C178 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C179 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C187 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C188 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C189 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C190 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C191 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C194 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C195 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C199 TDK E02-0244-0 Chip Cap, 1608 K 470PF
C201 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C203 TDK E02-0097-0 Chip Cap, 1005 J 120PF
C204 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C206 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C207 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C208 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C209 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C210 TDK E02-0277-0 Chip Cap, 1005 K 560PF
C211 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C213 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C214 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C215
2
TDK E02-000947-00 Chip Cap. 1005 J 390PF
C301 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C304 TDK E02-0142-0 Chip Cap, 1005 J 20PF
C305 TDK E02-0029-0 Chip Cap, 1005 D 10PF
C307 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C308 TDK E02-0049-0 Chip Cap, 1005 K 103PF
Circuit
Ref.
Supplier Supplier Part No. Description
