Motorola P100 Series Detailed Service Manual

Circuit Board/Schematic Diagram and Parts List (UHF1: 403–447 MHz) 13-19

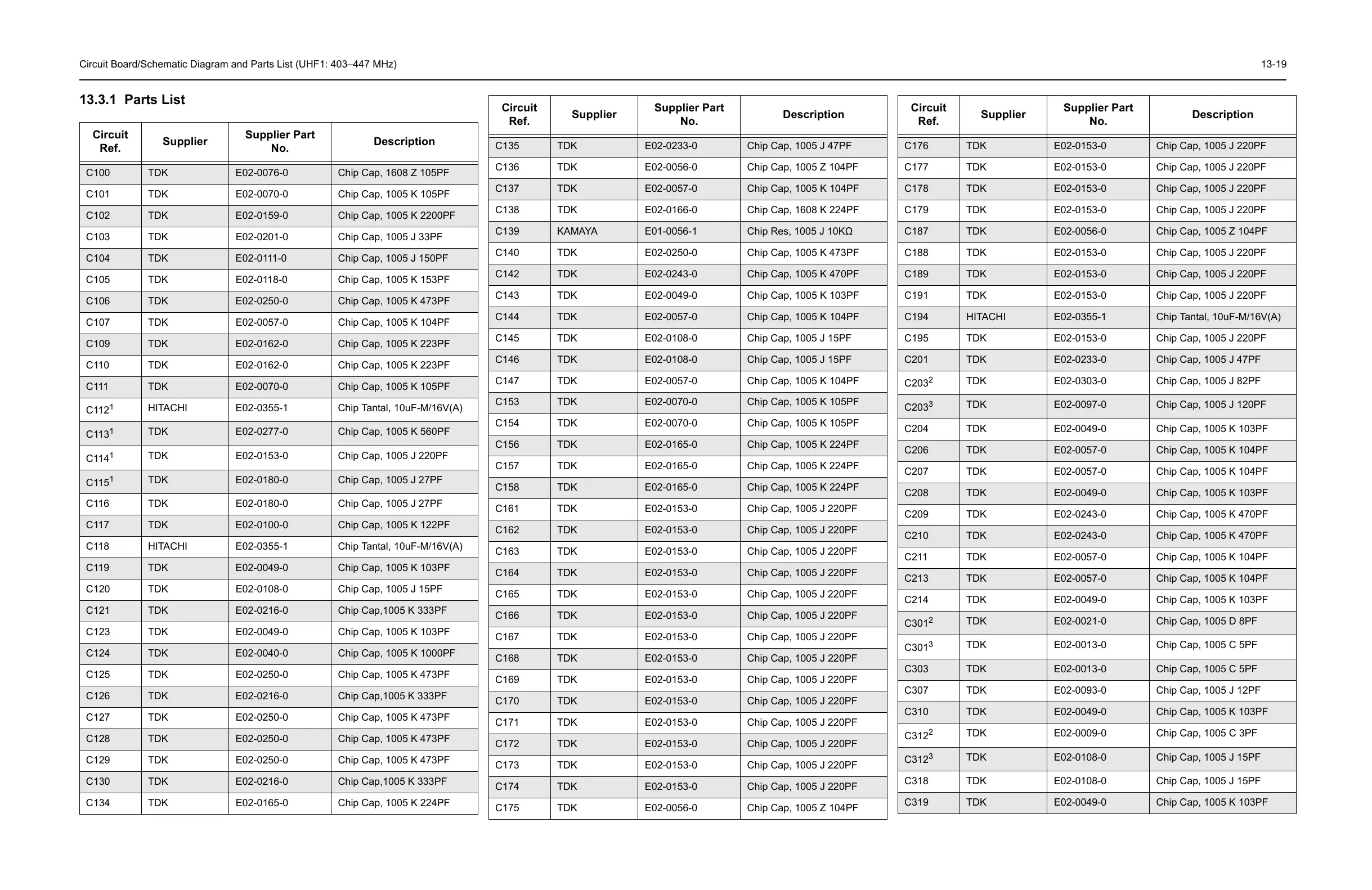

13.3.1 Parts List
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C100 TDK E02-0076-0 Chip Cap, 1608 Z 105PF
C101 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C102 TDK E02-0159-0 Chip Cap, 1005 K 2200PF
C103 TDK E02-0201-0 Chip Cap, 1005 J 33PF
C104 TDK E02-0111-0 Chip Cap, 1005 J 150PF
C105 TDK E02-0118-0 Chip Cap, 1005 K 153PF
C106 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C107 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C109 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C110 TDK E02-0162-0 Chip Cap, 1005 K 223PF
C111 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C112
1
HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C113
1
TDK E02-0277-0 Chip Cap, 1005 K 560PF
C114
1
TDK E02-0153-0 Chip Cap, 1005 J 220PF
C115
1
TDK E02-0180-0 Chip Cap, 1005 J 27PF
C116 TDK E02-0180-0 Chip Cap, 1005 J 27PF
C117 TDK E02-0100-0 Chip Cap, 1005 K 122PF
C118 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C119 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C120 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C121 TDK E02-0216-0 Chip Cap,1005 K 333PF
C123 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C124 TDK E02-0040-0 Chip Cap, 1005 K 1000PF
C125 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C126 TDK E02-0216-0 Chip Cap,1005 K 333PF
C127 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C128 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C129 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C130 TDK E02-0216-0 Chip Cap,1005 K 333PF
C134 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C135 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C136 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C137 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C138 TDK E02-0166-0 Chip Cap, 1608 K 224PF
C139 KAMAYA E01-0056-1 Chip Res, 1005 J 10K
C140 TDK E02-0250-0 Chip Cap, 1005 K 473PF
C142 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C143 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C144 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C145 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C146 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C147 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C153 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C154 TDK E02-0070-0 Chip Cap, 1005 K 105PF
C156 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C157 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C158 TDK E02-0165-0 Chip Cap, 1005 K 224PF
C161 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C162 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C163 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C164 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C165 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C166 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C167 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C168 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C169 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C170 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C171 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C172 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C173 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C174 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C175 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
C176 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C177 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C178 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C179 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C187 TDK E02-0056-0 Chip Cap, 1005 Z 104PF
C188 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C189 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C191 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C194 HITACHI E02-0355-1 Chip Tantal, 10uF-M/16V(A)
C195 TDK E02-0153-0 Chip Cap, 1005 J 220PF
C201 TDK E02-0233-0 Chip Cap, 1005 J 47PF
C203
2
TDK E02-0303-0 Chip Cap, 1005 J 82PF
C203
3
TDK E02-0097-0 Chip Cap, 1005 J 120PF
C204 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C206 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C207 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C208 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C209 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C210 TDK E02-0243-0 Chip Cap, 1005 K 470PF
C211 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C213 TDK E02-0057-0 Chip Cap, 1005 K 104PF
C214 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C301
2
TDK E02-0021-0 Chip Cap, 1005 D 8PF
C301
3
TDK E02-0013-0 Chip Cap, 1005 C 5PF
C303 TDK E02-0013-0 Chip Cap, 1005 C 5PF
C307 TDK E02-0093-0 Chip Cap, 1005 J 12PF
C310 TDK E02-0049-0 Chip Cap, 1005 K 103PF
C312
2
TDK E02-0009-0 Chip Cap, 1005 C 3PF
C312
3
TDK E02-0108-0 Chip Cap, 1005 J 15PF
C318 TDK E02-0108-0 Chip Cap, 1005 J 15PF
C319 TDK E02-0049-0 Chip Cap, 1005 K 103PF
Circuit
Ref.
Supplier
Supplier Part
No.
Description
