USB C: One USB Type-C console port (see USB Type-C console port on page 39).
•
24 PoE+ Gigabit Ethernet ports, numbered 1 through 24: 24 PoE+ (802.3at)
1G/100M autosensing RJ-45 ports, each with a left LED and a right LED (see LEDs
model M4350-24G4XF on page 21), with a total PoE budget of 648W for the switch.
This PoE budget is optionally expandable to up to 720W.
•
4 SFP+ ports, numbered 25 through 28: Four 10G/1G SFP+ fiber uplink ports,
each with a combined speed and activity LED (see LEDs model M4350-24G4XF on
page 21)
For information about optional devices for the fiber uplink ports, see Fiber transceiver
modules and cables for SFP+ and SFP28 ports on page 37.

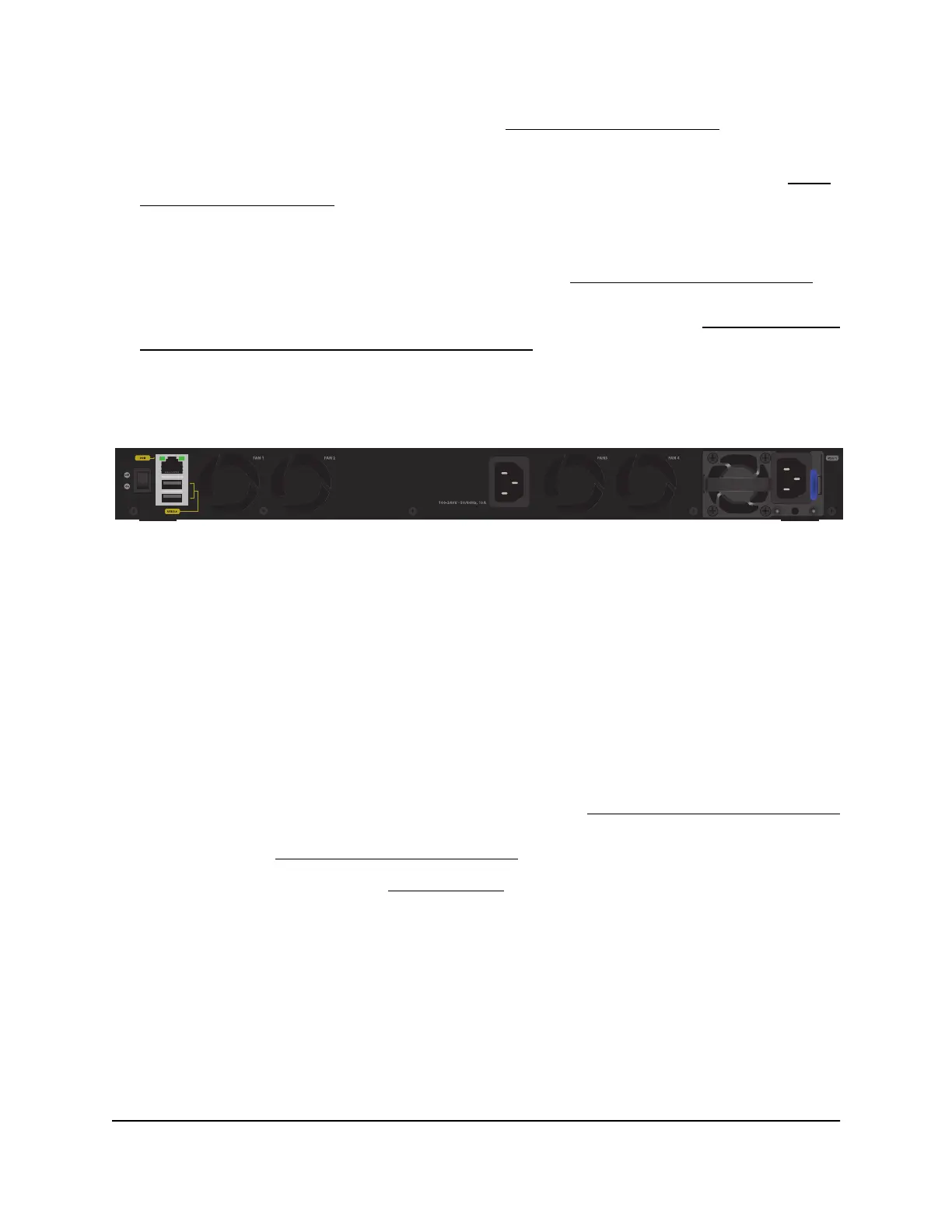

Back panel model M4350-24G4XF
Figure 6. Back panel model M4350-24G4XF
Note: Although the previous figure shows an optional auxiliary power supply (APS)
installed in the power supply unit (PSU) bay, this models ships without an APS, and the
PSU bay is closed with a PSU cover.
From left to right, the back panel of model M4350-24G4XF provides the following
common components, which are clearly named or numbered on the back panel:
•
On/Off power switch: One On/Off power switch that lets you turn on or turn off
power to the switch
•
OOB: One out-of-band (OOB) 1G Ethernet port (see Out-of-band 1G Ethernet port
on page 39) with a left LED that indicates the speed and a right LED that indicates
the activity (see LEDs model M4350-24G4XF on page 21)
•
USB: Two USB 3.0 ports (see USB 3.0 ports on page 39)
•
Fans: Four fans placed in two groups of two fans (FAN 1 + FAN 2 and FAN 3 + FAN
4)
•
AC power receptacle: AC receptacle for the internal PSU. The PSU can accept
100–240V ~ 50–60 Hz, 10A.
•
PSU bay: One PSU bay (PSU 1) that is closed with a PSU cover. For information about
ordering an optional APS that you can install in the PSU bay, contact NETGEAR.
Hardware Installation Guide20Hardware Overview
Fully Managed Switches M4350 Series
