Table 5. LEDs of model M4350-24X4V (Continued)
DescriptionLED
Off: No SFP module link is established on the fiber port.
Solid green: The fiber port established a 25G link.
Blinking green: The fiber port is transmitting or receiving packets at 25G.
Solid yellow: The fiber port established a 10G or 1G link.
Blinking yellow: The fiber port is transmitting or receiving packets at 10G or
1G.
Port LEDs for SFP28 ports
numbered 25 through 28
Port LEDs, Back Panel
Left LED, speed status:
Solid green: The port established a 1G link.
Solid yellow: The port established a 100 M link.
Off: No link is established on the port.
OOB Ethernet port LEDs
Right LED, activity and link status:
Solid green: The port established a link.
Blinking green: The port is transmitting or receiving packets.
Off: No link is established on the port.
Model M4350-24F4V (SKU XSM4328FV)
This section describes the switch hardware features for model M4350-24F4V (SKU
XSM4328FV).
This full-width model provides a switching fabric of 680 Gbps and supports the following
port configurations:
•
Twenty-four SFP+ fiber uplink ports that support 10 Gbps or 1 Gbps transceiver
modules
•
Four SFP28 fiber uplink ports that support 25 Gbps, 10 Gbps, or 1 Gbps transceiver
modules
Front panel model M4350-24F4V

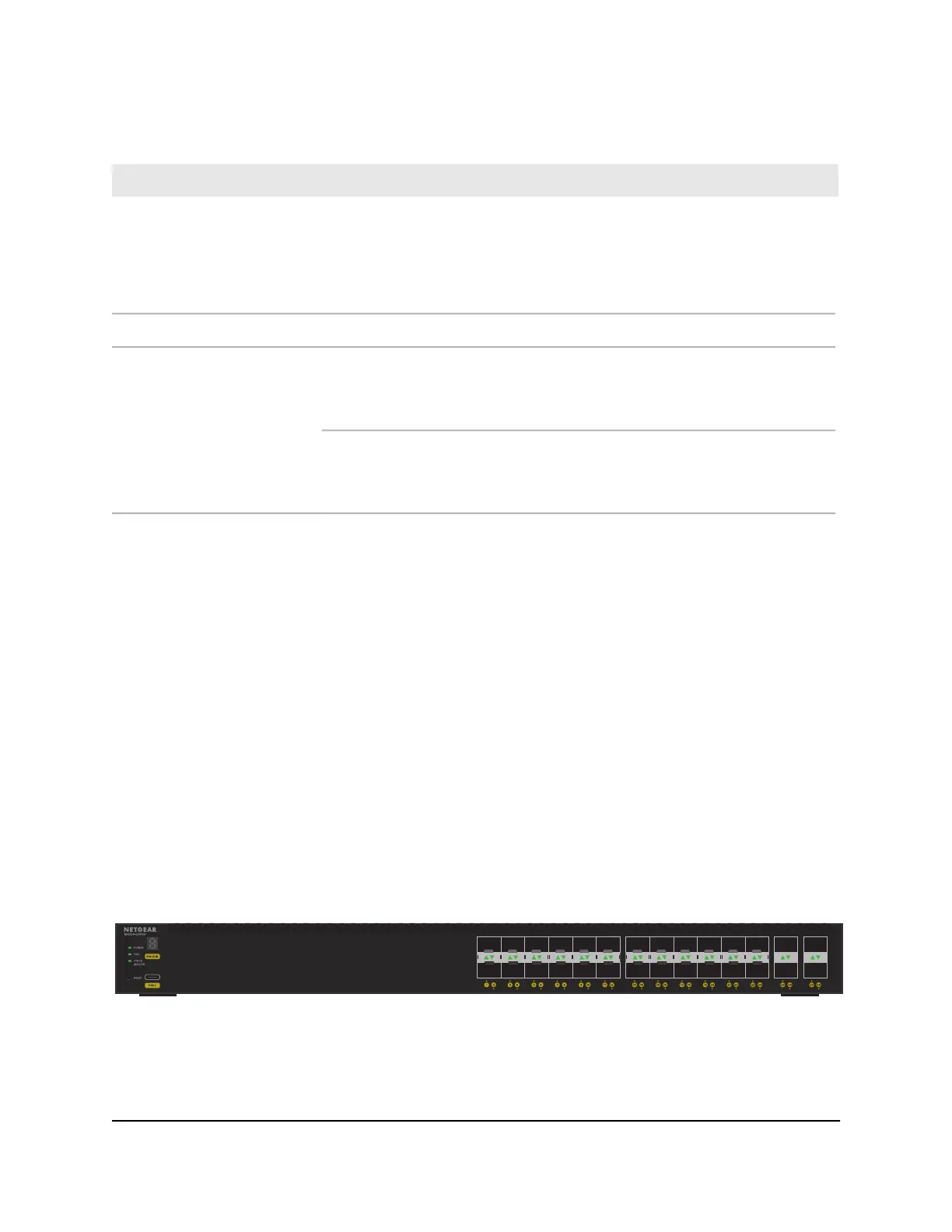

Figure 11. Front panel model M4350-24F4V
Hardware Installation Guide29Hardware Overview
Fully Managed Switches M4350 Series
